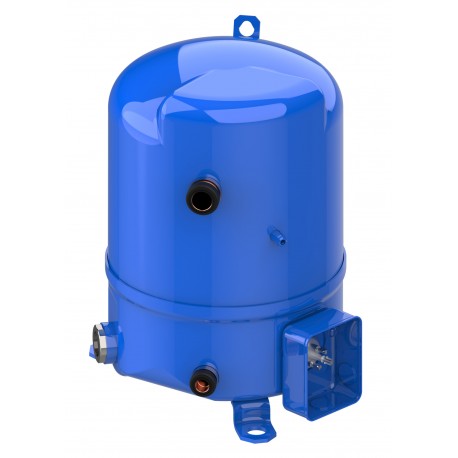

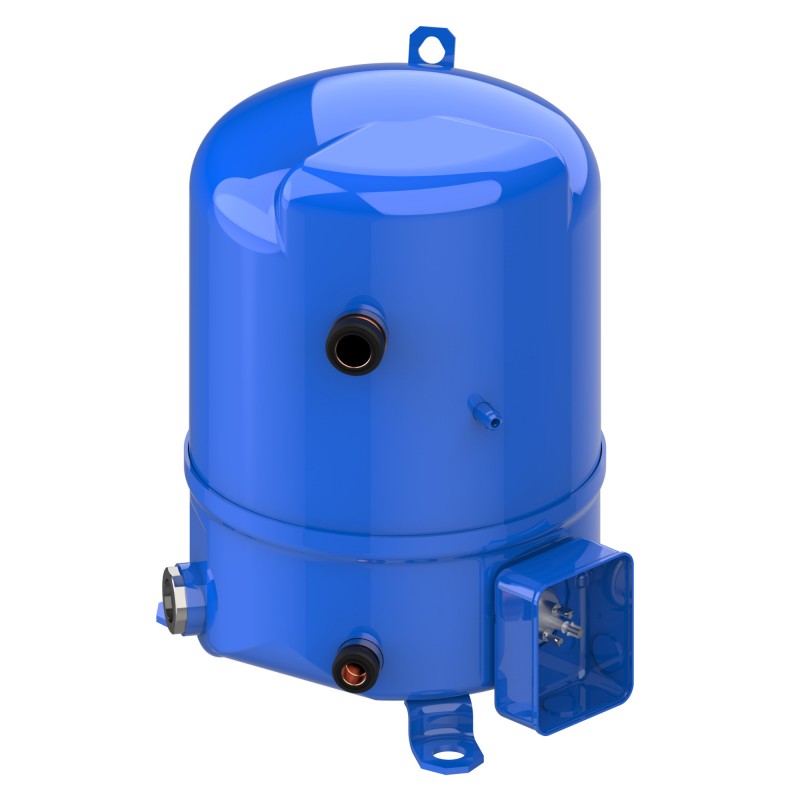

MT32-1VI DANFOSS REFRIGERATION Reciprocating compressor, MT32JF1MVE
MT32-1VI
DANFOSS REFRIGERATION
Reciprocating compressor, MT32JF1MVE
COMPRESSOR MINER OSG-EQUAL
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R22, Segment usage: Refrigeration MT, Compressor power supply [V]: 208-230/1/60, Packing format: Single pack
Product details
| Gross weight | 26.88 Kg |
| Net weight | 25 Kg |
| Volume | 37.73 Liter |
| EAN | 5702428839761 |
| Gross weight | 26.88 Kg |
| Net weight | 25 Kg |
| Volume | 37.73 Liter |
| EAN | 5702428839761 |
| Approval | CE UL UKCA |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 2.9 |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 25 µF |
| Capacity of capacitor B | 100 µF |
| Capacity of capacitor C | 20 µF |
| Colour | Blue |
| Compressor power supply [V] | 208-230/1/60 |
| Configuration code | Single |
| Connection type | Rotolock |
| Cylinder | 1 |
| Description | MT032-1 |
| Diameter [mm] | 224 mm |
| Discharge connection height [mm] | 68 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1 in |
| Drawing number | 8501020e |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| Factory HP [bar] | 25 bar |
| Factory LP [bar] | 25 bar |
| Family | MT |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| GP LP torque [Nm] | 15 N-m |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 0.3 L |
| High value of nominal voltage at 60Hz [V] | 230 V |
| High value of voltage range at 60Hz [V] | 253 V |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP55 (with cable gland) |
| Low Side TS Max | 50 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 7.5 L |
| Low value of nominal voltage at 60Hz [V] | 208 V |
| Low value of voltage range at 60Hz [V] | 187 V |
| LRA | 84 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.63 |
| Max pressure (PS) - high side | 29.4 bar |
| Max pressure (PS) - low side | 18.4 bar |
| MCC | 26.5 A |
| Model number | MT32JF1MVE |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 15 N-m |
| Network power supply [V/Ph/Hz] | 220-240/1/50 208-230/1/60 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 0.95 L |
| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 30 N-m |
| Oil reference | 160P |
| Packaging height [mm] | 385 mm |
| Packaging length [mm] | 330 mm |
| Packaging weight [Kg] | 27 kg |
| Packaging width [mm] | 295 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 1 |
| Power connections | Spade |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor MT |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 2.5 kg |
| Refrigerants | R22 |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| SCIP dossier no. | 5a332c1b-1d1b-4998-8115-d0929877ecb4 |
| Segment usage | Refrigeration MT |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 263 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 5/8 in |
| Suction connection size [in] | 1 1/4 in |
| Swept volume [cm3] | 53.86 cm³ |
| Technology | Reciprocating |
| Test dif [bar] [Max] | 30 bar |
| Test HP [bar] [Max] | 30 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 3 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 356 mm |
| Type | MT032 |
| Viscosity [cP] | 32 cP |
| Voltage of capacitor A [V] | 440 V |
| Voltage of capacitor B [V] | 330 V |
| Voltage of capacitor C [V] | 440 V |
| Approval | CE UL UKCA |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 2.9 |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 25 µF |
| Capacity of capacitor B | 100 µF |
| Capacity of capacitor C | 20 µF |
| Colour | Blue |
| Compressor power supply [V] | 208-230/1/60 |
| Configuration code | Single |
| Connection type | Rotolock |
| Cylinder | 1 |
| Description | MT032-1 |
| Diameter [mm] | 224 mm |
| Discharge connection height [mm] | 68 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1 in |
| Drawing number | 8501020e |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| Factory HP [bar] | 25 bar |
| Factory LP [bar] | 25 bar |
| Family | MT |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| GP LP torque [Nm] | 15 N-m |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 0.3 L |
| High value of nominal voltage at 60Hz [V] | 230 V |
| High value of voltage range at 60Hz [V] | 253 V |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP55 (with cable gland) |
| Low Side TS Max | 50 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 7.5 L |
| Low value of nominal voltage at 60Hz [V] | 208 V |
| Low value of voltage range at 60Hz [V] | 187 V |
| LRA | 84 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.63 |
| Max pressure (PS) - high side | 29.4 bar |
| Max pressure (PS) - low side | 18.4 bar |
| MCC | 26.5 A |
| Model number | MT32JF1MVE |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 15 N-m |
| Network power supply [V/Ph/Hz] | 220-240/1/50 208-230/1/60 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 0.95 L |
| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 30 N-m |
| Oil reference | 160P |
| Packaging height [mm] | 385 mm |
| Packaging length [mm] | 330 mm |
| Packaging weight [Kg] | 27 kg |
| Packaging width [mm] | 295 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 1 |
| Power connections | Spade |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor MT |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 2.5 kg |
| Refrigerants | R22 |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| SCIP dossier no. | 5a332c1b-1d1b-4998-8115-d0929877ecb4 |
| Segment usage | Refrigeration MT |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 263 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 5/8 in |
| Suction connection size [in] | 1 1/4 in |
| Swept volume [cm3] | 53.86 cm³ |
| Technology | Reciprocating |
| Test dif [bar] [Max] | 30 bar |
| Test HP [bar] [Max] | 30 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 3 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 356 mm |
| Type | MT032 |
| Viscosity [cP] | 32 cP |
| Voltage of capacitor A [V] | 440 V |
| Voltage of capacitor B [V] | 330 V |
| Voltage of capacitor C [V] | 440 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| MT32-1VI MT32-1VI EN_120U1401.pdf | 4 Mbytes |
|
