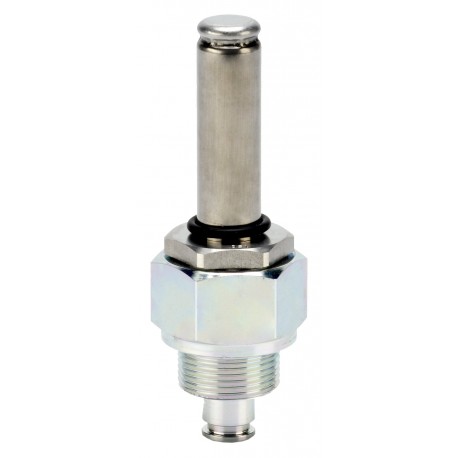

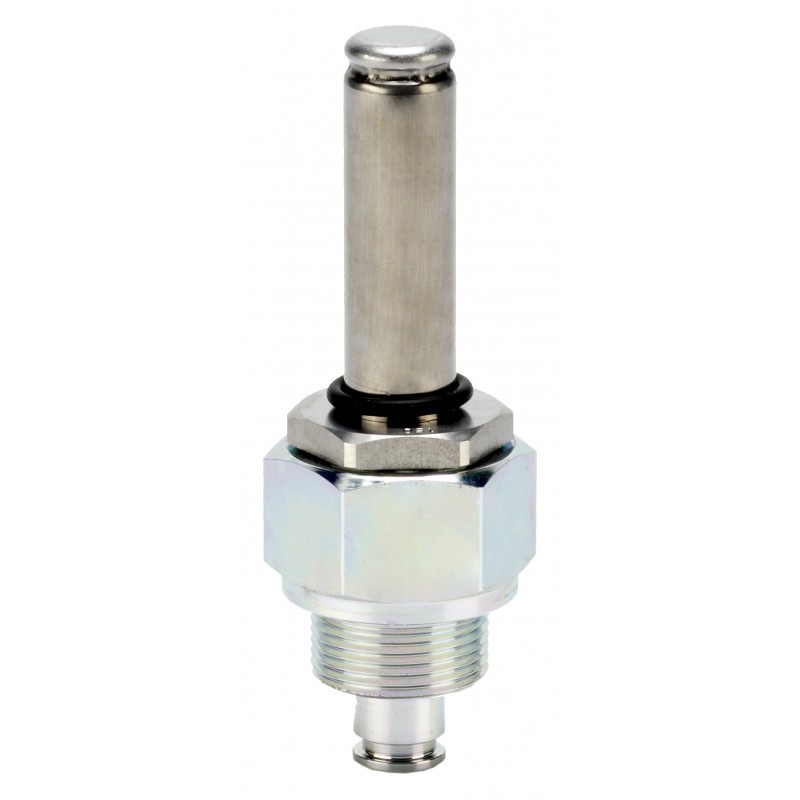

032F8029 DANFOSS REFRIGERATION EVM PILOT VALVE Flameable MU 20
032F8029
DANFOSS REFRIGERATION
EVM PILOT VALVE Flameable MU 20
Pilot valve, EVM
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Kv value [m³/h]: 0.25, Max. Working Pressure [bar]: 65
Product details
| Gross weight | 0.253 Kilogram |
| Net weight | 0.239 Kilogram |
| Volume | 0.205 Liter |
| EAN | 5702428307420 |
| Type | EVM |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot valve |
| Gross weight | 0.253 Kilogram |
| Net weight | 0.239 Kilogram |
| Volume | 0.205 Liter |
| EAN | 5702428307420 |
| Type | EVM |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot valve |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -20 - 50 °C |
| Ambient temperature range [°F] [max] | 120 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | LLC CDC TYSK UL |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil | No |
| Contains batteries | No |
| Cv value [gal/min] | 0.289 gal/min |
| Direction | None |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Function | NC |
| Inlet connection type | Thread |
| Kv value [m³/h] | 0.25 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 20W DC | 14 bar |
| MaxOPD[psi] 10W AC | 305 psi |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MOPD[bar/psi] | Coil Dependent |
| Orifice size [mm] | 3.3 mm |
| Packing format | Multi pack |
| Product accessories | Pilot valve accessories |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1270 R290 R600 R600a RE170 |
| Serviceable | No |
| Type designation | Solenoid valve |
| UL mark | Yes |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -20 - 50 °C |
| Ambient temperature range [°F] [max] | 120 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | LLC CDC TYSK UL |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil | No |
| Contains batteries | No |
| Cv value [gal/min] | 0.289 gal/min |
| Direction | None |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Function | NC |
| Inlet connection type | Thread |
| Kv value [m³/h] | 0.25 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 20W DC | 14 bar |
| MaxOPD[psi] 10W AC | 305 psi |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MOPD[bar/psi] | Coil Dependent |
| Orifice size [mm] | 3.3 mm |
| Packing format | Multi pack |
| Product accessories | Pilot valve accessories |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1270 R290 R600 R600a RE170 |
| Serviceable | No |
| Type designation | Solenoid valve |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 032F8029 032F8029 EN_027F1159.pdf | 1 Mbytes |
|
