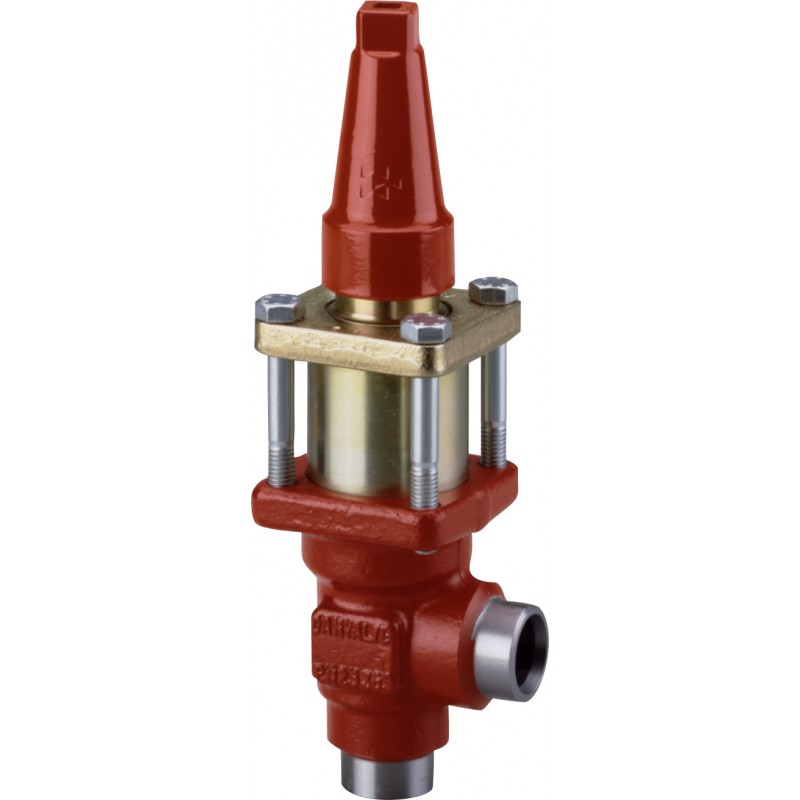

2412+185 DANFOSS REFRIGERATION Pressure regulating valve, OFV 20

Name: 2412+185 DANFOSS REFRIGERATION Pressure regulating valve, OFV 20
Brand: DANFOSS REFRIGERATION
SKU: DAO2412185
Price: 528.32 USD
Availability: OutOfStock

Reference: 2412+185

Manufacturer: DANFOSS REFRIGERATION

Description:

Pressure regulating valve, OFV 20

OFV 20 A ANG OVER FLOW VALVE PS40

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
Reviews

Guarantee, repair and return.

Unit Price: 451,28 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Connection size [mm]: 20, Connection type: Butt weld, Kv value [m³/h]: 0 - 0.52, Max. Working Pressure [bar]: 40

Product details

Gross weight	2.46 Kilogram
Net weight	2.05 Kilogram
Volume	4.457 Liter
EAN	5702428189804

Type	OFV 20
Product group	Press. and temp. regul. valves
Product Name Description	Pressure regulating valve

Gross weight	2.46 Kilogram
Net weight	2.05 Kilogram
Volume	4.457 Liter
EAN	5702428189804
Type	OFV 20
Product group	Press. and temp. regul. valves
Product Name Description	Pressure regulating valve

Approval	EAC LLC CDC TYSK
China RoHS compliance	Yes
China RoHS exemption clause	No
Colour Paint	Gray
Connection size [in]	3/4 in
Connection size [mm]	20 mm
Connection standard	ASME B 36.10M SCHEDULE 80
Connection type	Butt weld
Contains batteries	No
Cv value [gal/min] [max]	0.6 gal/min
Cv value [gal/min] [min]	0 gal/min
Direction	Angleway
Equipment	Cap
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Fluid Group	1
Inlet connection size [mm]	20 mm
Kv value [m³/h] [max]	0.52 m³/h
Kv value [m³/h] [min]	0 m³/h

Max. Working Pressure [bar]	40 bar
Max. Working Pressure [psig]	580 psig
Packing format	Single pack
PED category	Art. 3, par. 3
Pressure range [bar] Pe [max]	8 bar
Pressure range [bar] Pe [min]	2 bar
Pressure range [psig] Pe [max]	116 psig
Pressure range [psig] Pe [min]	2 psig
Product accessories	No
Product description	Overflow Valve
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507A R717 R744
Serviceable	Press. regul. valve spare part
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-58 °F

Approval	EAC LLC CDC TYSK
China RoHS compliance	Yes
China RoHS exemption clause	No
Colour Paint	Gray
Connection size [in]	3/4 in
Connection size [mm]	20 mm
Connection standard	ASME B 36.10M SCHEDULE 80
Connection type	Butt weld
Contains batteries	No
Cv value [gal/min] [max]	0.6 gal/min
Cv value [gal/min] [min]	0 gal/min
Direction	Angleway
Equipment	Cap
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Fluid Group	1
Inlet connection size [mm]	20 mm
Kv value [m³/h] [max]	0.52 m³/h
Kv value [m³/h] [min]	0 m³/h
Max. Working Pressure [bar]	40 bar
Max. Working Pressure [psig]	580 psig
Packing format	Single pack
PED category	Art. 3, par. 3
Pressure range [bar] Pe [max]	8 bar
Pressure range [bar] Pe [min]	2 bar
Pressure range [psig] Pe [max]	116 psig
Pressure range [psig] Pe [min]	2 psig
Product accessories	No
Product description	Overflow Valve
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507A R717 R744
Serviceable	Press. regul. valve spare part
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-58 °F
