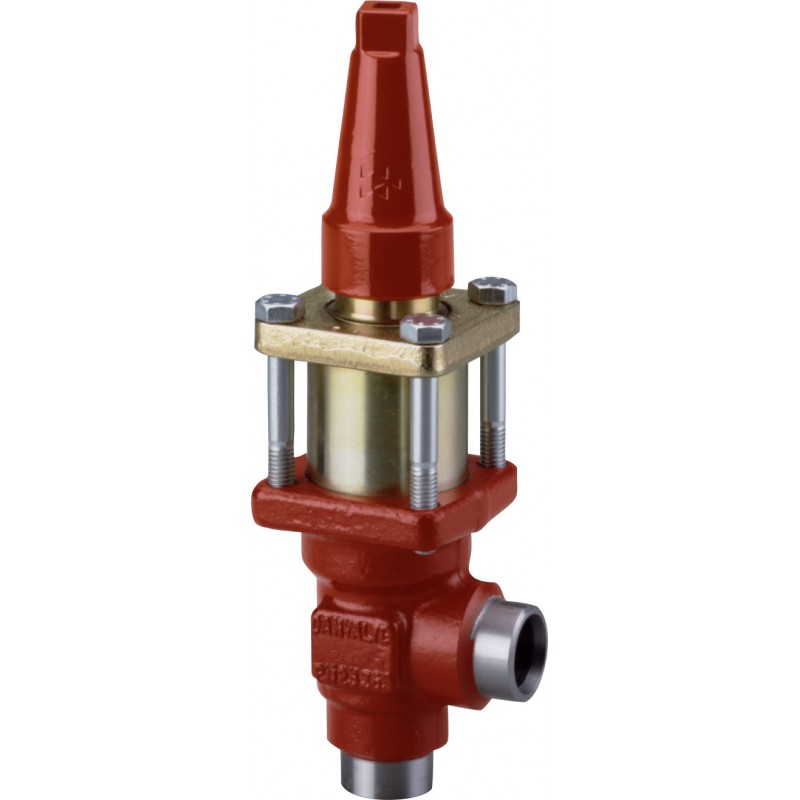

2412+183 DANFOSS REFRIGERATION OFV 20 D ANG OVER FLOW VALVE PS40
2412+183
DANFOSS REFRIGERATION
OFV 20 D ANG OVER FLOW VALVE PS40
Pressure regulating valve, OFV 20
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection size [mm]: 20.0, Kv value [m³/h]: 0.000 - 0.520, Max. Working Pressure [bar]: 40.0
Product details
| Gross weight | 2.238 Kg |
| Net weight | 2.05 Kg |
| Volume | 4.457 Liter |
| EAN | 5702428189828 |
| Gross weight | 2.238 Kg |
| Net weight | 2.05 Kg |
| Volume | 4.457 Liter |
| EAN | 5702428189828 |
| Approval | EAC LLC CDC TYSK |
| Colour Paint | Gray |
| Connection size [in] | 3/4 in |
| Connection size [mm] | 20 mm |
| Connection standard | EN 10220 |
| Connection type | Butt weld |
| Cv value [gal/min] [max] | 0.6 gal/min |
| Cv value [gal/min] [min] | 0 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| EU RoHS compliance | Yes with exemptions |
| Fluid Group | 1 |
| In scope of WEEE and contain batteries | No |
| Inlet connection size [mm] | 20 mm |
| Kv value [m³/h] [max] | 0.52 m³/h |
| Kv value [m³/h] [min] | 0 m³/h |
| Max. Working Pressure [bar] | 40 bar |
| Max. Working Pressure [psig] | 580 psig |
| Packing format | Single pack |
| PED category | Art. 3, par. 3 |
| Pressure range [bar] Pe [max] | 8 bar |
| Pressure range [bar] Pe [min] | 2 bar |
| Pressure range [psig] Pe [max] | 116 psig |
| Pressure range [psig] Pe [min] | 2 psig |
| Product accessories | No |
| Product description | Overflow Valve |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pressure regulating valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507A R717 R744 |
| Serviceable | Press. regul. valve spare part |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
| Type | OFV 20 |
| Approval | EAC LLC CDC TYSK |
| Colour Paint | Gray |
| Connection size [in] | 3/4 in |
| Connection size [mm] | 20 mm |
| Connection standard | EN 10220 |
| Connection type | Butt weld |
| Cv value [gal/min] [max] | 0.6 gal/min |
| Cv value [gal/min] [min] | 0 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| EU RoHS compliance | Yes with exemptions |
| Fluid Group | 1 |
| In scope of WEEE and contain batteries | No |
| Inlet connection size [mm] | 20 mm |
| Kv value [m³/h] [max] | 0.52 m³/h |
| Kv value [m³/h] [min] | 0 m³/h |
| Max. Working Pressure [bar] | 40 bar |
| Max. Working Pressure [psig] | 580 psig |
| Packing format | Single pack |
| PED category | Art. 3, par. 3 |
| Pressure range [bar] Pe [max] | 8 bar |
| Pressure range [bar] Pe [min] | 2 bar |
| Pressure range [psig] Pe [max] | 116 psig |
| Pressure range [psig] Pe [min] | 2 psig |
| Product accessories | No |
| Product description | Overflow Valve |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pressure regulating valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507A R717 R744 |
| Serviceable | Press. regul. valve spare part |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
| Type | OFV 20 |
