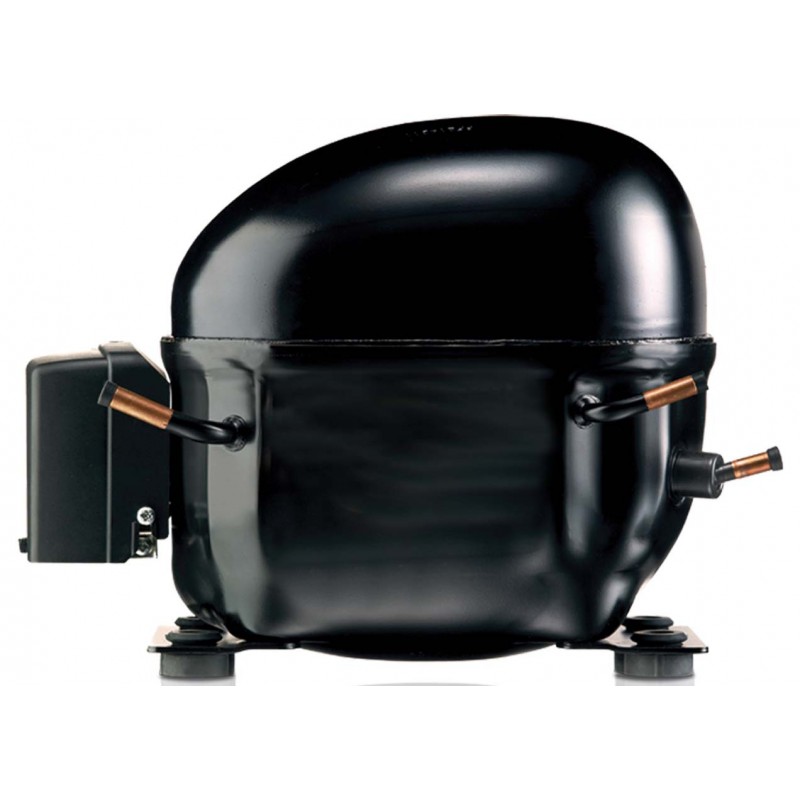

195B0749 DANFOSS REFRIGERATION Reciprocating compressor, NLE11MN
195B0749
DANFOSS REFRIGERATION
Reciprocating compressor, NLE11MN
Single pack NLE11MN 220-240V/50hz
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R290, Segment usage: Refrigeration MT, Compressor power supply [V]: 220-240/1/50
Product details
| Gross weight | 12.33 Kg |
| Net weight | 11.9 Kg |
| Volume | 17.82 Liter |
| Gross weight | 12.33 Kg |
| Net weight | 11.9 Kg |
| Volume | 17.82 Liter |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 220-240/1/50 |
| Description | NLE11MN |
| Discharge connection angle [°] | 21 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection diameter [mm] | 6.2 mm |
| Discharge connection material | Copper |
| Economizer | No |
| Family | NL |
| Free gas volume [cm3] | 2360 cm³ |
| Frequency [Hz] | 50 |
| Height from baseplate [mm] | 197 mm |
| High value of nominal voltage at 50Hz [V] | 240 V |
| High value of voltage range at 50Hz [V] | 255 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 252 mm |
| Liquid injection | No |
| Low value of nominal voltage at 50Hz [V] | 220 V |
| Low value of voltage range at 50Hz [V] | 187 V |
| Model number | NLE11MN |
| Motor type | CSIR RSCR RSIR |
| No. of phases (compressor) | 1 |
| Oil quantity [cm3] | 300 cm³ |
| Oil type | POE |
| Packing format | Single pack |
| Process connection angle [°] | 25 ° |
| Process connection comments | Rubber plug |
| Process connection diameter [mm] | 6.2 mm |
| Process connection material | Copper |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor NL |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 0.15 kg |
| Rotational speed at 50Hz [rpm] | 3000 rpm |
| Run capacitor capacitance | 4 µF |
| Speed Platform | Fixed-speed |
| Start capacitor capacitance | 80 µF |
| Suction connection angle [°] | 15 ° |
| Suction connection diameter [mm] | 8.2 mm |
| Suction connection material | Copper |
| Swept volume [cm3] | 11.15 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 203 mm |
| Type | NLE11 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 166 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 220-240/1/50 |
| Description | NLE11MN |
| Discharge connection angle [°] | 21 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection diameter [mm] | 6.2 mm |
| Discharge connection material | Copper |
| Economizer | No |
| Family | NL |
| Free gas volume [cm3] | 2360 cm³ |
| Frequency [Hz] | 50 |
| Height from baseplate [mm] | 197 mm |
| High value of nominal voltage at 50Hz [V] | 240 V |
| High value of voltage range at 50Hz [V] | 255 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 252 mm |
| Liquid injection | No |
| Low value of nominal voltage at 50Hz [V] | 220 V |
| Low value of voltage range at 50Hz [V] | 187 V |
| Model number | NLE11MN |
| Motor type | CSIR RSCR RSIR |
| No. of phases (compressor) | 1 |
| Oil quantity [cm3] | 300 cm³ |
| Oil type | POE |
| Packing format | Single pack |
| Process connection angle [°] | 25 ° |
| Process connection comments | Rubber plug |
| Process connection diameter [mm] | 6.2 mm |
| Process connection material | Copper |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor NL |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 0.15 kg |
| Rotational speed at 50Hz [rpm] | 3000 rpm |
| Run capacitor capacitance | 4 µF |
| Speed Platform | Fixed-speed |
| Start capacitor capacitance | 80 µF |
| Suction connection angle [°] | 15 ° |
| Suction connection diameter [mm] | 8.2 mm |
| Suction connection material | Copper |
| Swept volume [cm3] | 11.15 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 203 mm |
| Type | NLE11 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 166 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
