DANFOSS REFRIGERATION195B0714 DANFOSS REFRIGERATION Reciprocating compressor, DLE5.7CN

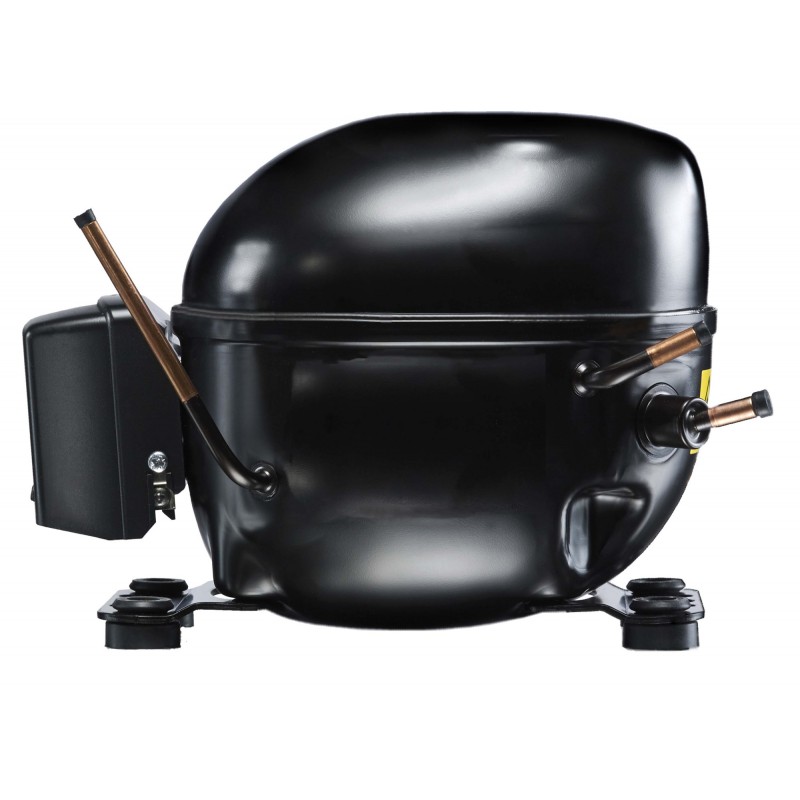

DANFOSS REFRIGERATION 195B0714 195B0714 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

195B0714 DANFOSS REFRIGERATION Reciprocating compressor, DLE5.7CN

Reference: 195B0714

Manufacturer: DANFOSS REFRIGERATION

Description:

Reciprocating compressor, DLE5.7CN
Single pack DLE5.7CN 220-240V/50hz SŘ6,2

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Refrigerants: R290, Segment usage: Refrigeration LT; Refrigeration MT, Compressor power supply [V]: 115/1/60

Product details

Gross weight8.768 Kg
Net weight8.2 Kg
Volume16.298 Liter
Gross weight8.768 Kg
Net weight8.2 Kg
Volume16.298 Liter

ApprovalCCC
CE
Approval standardEN 60335-2-34 with Annex AA
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]14.3
Brand techniqueReciprocating compressor
Capacity controlFixed speed
Capacity of capacitor A5 µF
Capacity of capacitor B80 uF
ColourBlack
Compressor power supply [V]115/1/60
Cut in current HST [A]9.3 A
Cut in current LST [A]12.5 A
DescriptionDLE5.7CN
Discharge connection angle [°]25 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]5 mm
Discharge connection materialCopper
EconomizerNo
FamilyDL
Free gas volume [cm3]1 cm³
Frequency [Hz]50
Height from baseplate [mm]169 mm
High value of nominal voltage at 50Hz [V]230 V
High value of voltage range at 50Hz [V]254 V
In scope of WEEE and contain batteriesNo
Length [mm]233 mm
Low value of nominal voltage at 50Hz [V]220 V
Low value of voltage range at 50Hz [V]198 V
LRA HST [A]9.3 A
LRA HST alt [A]9.3 A
LRA LST [A]7.7 A
Main winding resistance for single-phase compressors [Ohm]13.5
Model numberDLE5.7CN
Motor typeCSIR
RSCR
RSIR
No. of phases (compressor)1
Oil charge [L]0.23 L
Oil cooler connection angle [°]60 °
Oil quantity [cm3]230 cm³
Oil typePOE
Packing formatSingle pack
Phase1
Process connection angle [°]60 °
Process connection commentsRubber plug
Process connection diameter [mm]4.5 mm
Process connection materialCopper
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor DL
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]0.15 kg
RLA1.6 A
Rotational speed at 50Hz [rpm]2900 rpm
Run capacitor capacitance5 µF
Suction connection angle [°]18 °
Suction connection diameter [mm]6.2 mm
Suction connection materialCu-plated steel
Swept volume [cm3]5.7 cm³
TechnologyReciprocating
Total height [mm]175 mm
TypeDLE5.7
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Width [mm]157 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
ApprovalCCC
CE
Approval standardEN 60335-2-34 with Annex AA
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]14.3
Brand techniqueReciprocating compressor
Capacity controlFixed speed
Capacity of capacitor A5 µF
Capacity of capacitor B80 uF
ColourBlack
Compressor power supply [V]115/1/60
Cut in current HST [A]9.3 A
Cut in current LST [A]12.5 A
DescriptionDLE5.7CN
Discharge connection angle [°]25 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]5 mm
Discharge connection materialCopper
EconomizerNo
FamilyDL
Free gas volume [cm3]1 cm³
Frequency [Hz]50
Height from baseplate [mm]169 mm
High value of nominal voltage at 50Hz [V]230 V
High value of voltage range at 50Hz [V]254 V
In scope of WEEE and contain batteriesNo
Length [mm]233 mm
Low value of nominal voltage at 50Hz [V]220 V
Low value of voltage range at 50Hz [V]198 V
LRA HST [A]9.3 A
LRA HST alt [A]9.3 A
LRA LST [A]7.7 A
Main winding resistance for single-phase compressors [Ohm]13.5
Model numberDLE5.7CN
Motor typeCSIR
RSCR
RSIR
No. of phases (compressor)1
Oil charge [L]0.23 L
Oil cooler connection angle [°]60 °
Oil quantity [cm3]230 cm³
Oil typePOE
Packing formatSingle pack
Phase1
Process connection angle [°]60 °
Process connection commentsRubber plug
Process connection diameter [mm]4.5 mm
Process connection materialCopper
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor DL
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]0.15 kg
RLA1.6 A
Rotational speed at 50Hz [rpm]2900 rpm
Run capacitor capacitance5 µF
Suction connection angle [°]18 °
Suction connection diameter [mm]6.2 mm
Suction connection materialCu-plated steel
Swept volume [cm3]5.7 cm³
TechnologyReciprocating
Total height [mm]175 mm
TypeDLE5.7
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Width [mm]157 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
