DANFOSS REFRIGERATION195B0455 DANFOSS REFRIGERATION Reciprocating compressor, NLX11KK.2

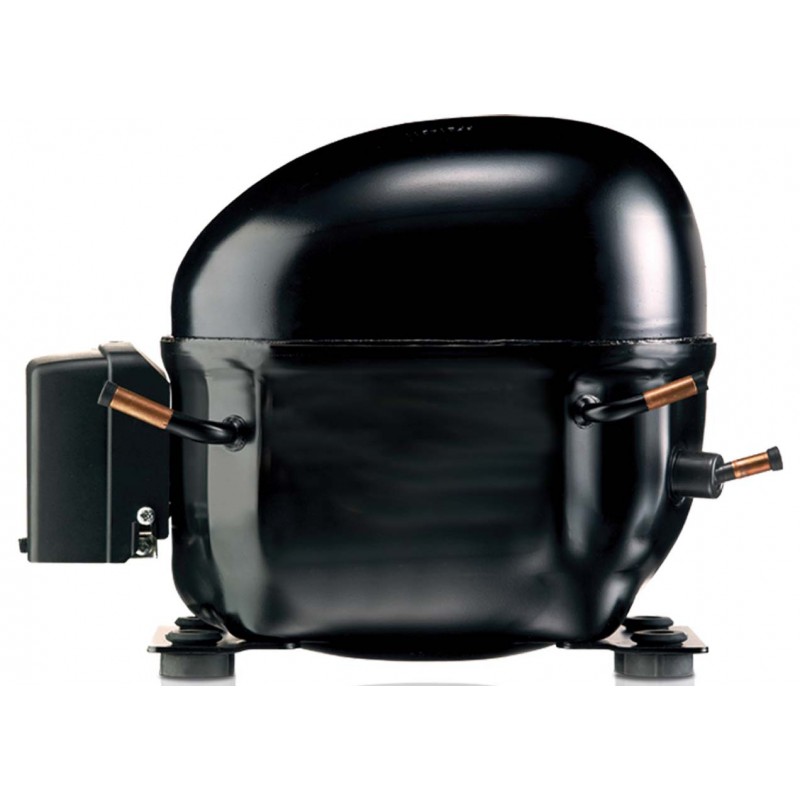

DANFOSS REFRIGERATION 195B0455 195B0455 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

195B0455 DANFOSS REFRIGERATION Reciprocating compressor, NLX11KK.2

Reference: 195B0455

Manufacturer: DANFOSS REFRIGERATION

Description:

Reciprocating compressor, NLX11KK.2

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Refrigerants: R600a, Segment usage: Refrigeration LT, Compressor power supply [V]: 220-240/1/50

Product details

Gross weight12.473 Kg
Net weight12.473 Kg
Volume16.815 Liter
Gross weight12.473 Kg
Net weight12.473 Kg
Volume16.815 Liter

Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]31.8
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220-240/1/50
Configuration codeSingle
Cut in current LST [A]6.4 A
DescriptionNLX11KK.2
Discharge connection angle [°]21 °
Discharge connection commentsAl-cap
Discharge connection diameter [mm]5 mm
Discharge connection materialCu-plated steel
EconomizerNo
FamilyNL
Free gas volume [cm3]2360 cm³
Frequency [Hz]50
Height from baseplate [mm]197 mm
High value of nominal voltage at 50Hz [V]240 V
High value of voltage range at 50Hz [V]255 V
In scope of WEEE and contain batteriesNo
Length [mm]252 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]220 V
Low value of voltage range at 50Hz [V]187 V
LRA LST [A]3.5 A
Main winding resistance for single-phase compressors [Ohm]18.5
Model numberNLX11KK.2
Motor typeRSCR
No. of phases (compressor)1
Oil quantity [cm3]270 cm³
Oil typePOE
Packing formatSingle pack
Process connection angle [°]25 °
Process connection commentsAl-cap
Process connection diameter [mm]6.2 mm
Process connection materialCu-plated steel
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor NL
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]0.15 kg
RLA0.70 A
Rotational speed at 50Hz [rpm]3000 rpm
Run capacitor capacitance2 µF
Speed PlatformFixed-speed
Suction connection angle [°]2 °
Suction connection diameter [mm]6.2 mm
Suction connection materialCu-plated steel
Swept volume [cm3]11.15 cm³
TechnologyReciprocating
Total height [mm]203 mm
TypeNLX11
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Width [mm]166 mm
Winding temperature short term [°C] [Max]110 °C
Winding temperature stat [°C] [Max]95 °C
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]31.8
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220-240/1/50
Configuration codeSingle
Cut in current LST [A]6.4 A
DescriptionNLX11KK.2
Discharge connection angle [°]21 °
Discharge connection commentsAl-cap
Discharge connection diameter [mm]5 mm
Discharge connection materialCu-plated steel
EconomizerNo
FamilyNL
Free gas volume [cm3]2360 cm³
Frequency [Hz]50
Height from baseplate [mm]197 mm
High value of nominal voltage at 50Hz [V]240 V
High value of voltage range at 50Hz [V]255 V
In scope of WEEE and contain batteriesNo
Length [mm]252 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]220 V
Low value of voltage range at 50Hz [V]187 V
LRA LST [A]3.5 A
Main winding resistance for single-phase compressors [Ohm]18.5
Model numberNLX11KK.2
Motor typeRSCR
No. of phases (compressor)1
Oil quantity [cm3]270 cm³
Oil typePOE
Packing formatSingle pack
Process connection angle [°]25 °
Process connection commentsAl-cap
Process connection diameter [mm]6.2 mm
Process connection materialCu-plated steel
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor NL
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]0.15 kg
RLA0.70 A
Rotational speed at 50Hz [rpm]3000 rpm
Run capacitor capacitance2 µF
Speed PlatformFixed-speed
Suction connection angle [°]2 °
Suction connection diameter [mm]6.2 mm
Suction connection materialCu-plated steel
Swept volume [cm3]11.15 cm³
TechnologyReciprocating
Total height [mm]203 mm
TypeNLX11
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Width [mm]166 mm
Winding temperature short term [°C] [Max]110 °C
Winding temperature stat [°C] [Max]95 °C
