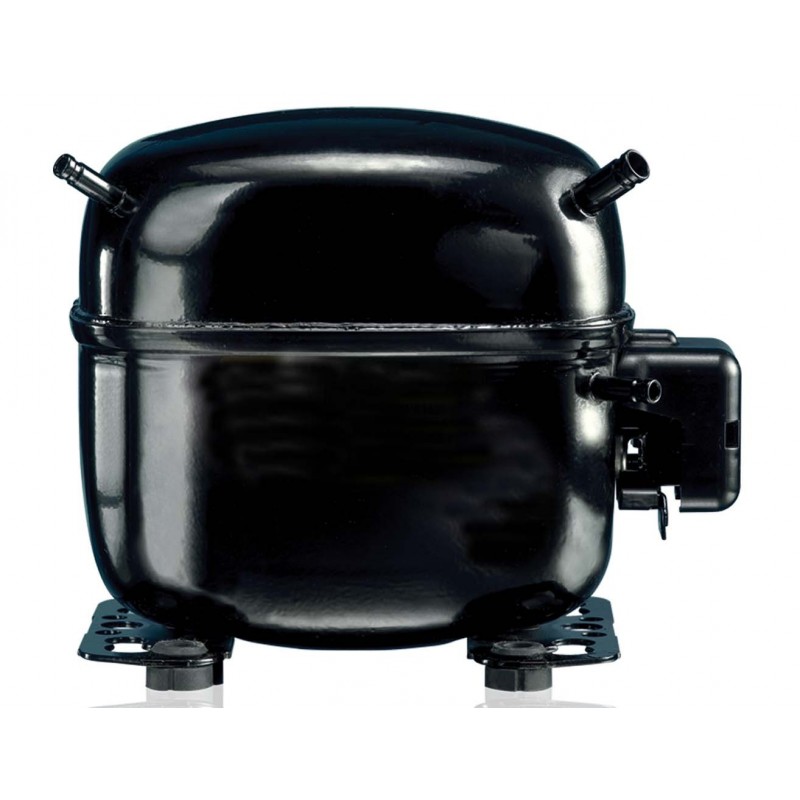

195B0306 DANFOSS REFRIGERATION Reciprocating compressor, SC18MLX
195B0306
DANFOSS REFRIGERATION
Reciprocating compressor, SC18MLX
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R404A, Segment usage: Refrigeration MT, Compressor power supply [V]: 115/1/60
Product details
| Gross weight | 14.777 Kg |
| Net weight | 14.777 Kg |
| Volume | 17.545 Liter |
| EAN | 5702424534967 |
| Gross weight | 14.777 Kg |
| Net weight | 14.777 Kg |
| Volume | 17.545 Liter |
| EAN | 5702424534967 |
| Applications | MBP |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 2.6 |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 115/1/60 |
| Configuration code | Single |
| Cut in current HST [A] | 68.4 A |
| Description | SC18MLX |
| Discharge connection angle [°] | 37 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection diameter [mm] | 6.5 mm |
| Discharge connection height [mm] | 110 mm |
| Discharge connection material | Copper |
| Economizer | No |
| Family | SC |
| Free gas volume [cm3] | 1460 cm³ |
| Frequency [Hz] | 60 |
| Height from baseplate [mm] | 213 mm |
| High value of nominal voltage at 60Hz [V] | 115 V |
| High value of voltage range at 60Hz [V] | 127 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 255 mm |
| Liquid injection | No |
| Low value of nominal voltage at 60Hz [V] | 115 V |
| Low value of voltage range at 60Hz [V] | 98 V |
| LRA HST 60Hz [A] | 68.4 A |
| LRA HST [A] | 68.4 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.6 |
| Model number | SC18MLX |
| Motor type | CSR |
| No. of phases (compressor) | 1 |
| Oil quantity [cm3] | 600 cm³ |
| Oil type | POE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Process connection angle [°] | 37 ° |
| Process connection comments | Rubber plug |
| Process connection diameter [mm] | 6.5 mm |
| Process connection height [mm] | 193 mm |
| Process connection material | Copper |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor SC |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 1.3 kg |
| Refrigerants | R404A |
| RLA | 13.50 A |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| Run capacitor capacitance | 23.5 µF |
| Segment usage | Refrigeration MT |
| Speed Platform | Fixed-speed |
| Start capacitor capacitance | 410 µF |
| Suction connection angle [°] | 37 ° |
| Suction connection diameter [mm] | 9.63 mm |
| Suction connection height [mm] | 193 mm |
| Suction connection material | Copper |
| Swept volume [cm3] | 17.69 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 219 mm |
| Type | SC18 |
| Voltage 60Hz [V] | 115 V |
| Voltage 60Hz [V] [Max] | 115 V |
| Width [mm] | 151 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
| Applications | MBP |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 2.6 |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 115/1/60 |
| Configuration code | Single |
| Cut in current HST [A] | 68.4 A |
| Description | SC18MLX |
| Discharge connection angle [°] | 37 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection diameter [mm] | 6.5 mm |
| Discharge connection height [mm] | 110 mm |
| Discharge connection material | Copper |
| Economizer | No |
| Family | SC |
| Free gas volume [cm3] | 1460 cm³ |
| Frequency [Hz] | 60 |
| Height from baseplate [mm] | 213 mm |
| High value of nominal voltage at 60Hz [V] | 115 V |
| High value of voltage range at 60Hz [V] | 127 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 255 mm |
| Liquid injection | No |
| Low value of nominal voltage at 60Hz [V] | 115 V |
| Low value of voltage range at 60Hz [V] | 98 V |
| LRA HST 60Hz [A] | 68.4 A |
| LRA HST [A] | 68.4 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.6 |
| Model number | SC18MLX |
| Motor type | CSR |
| No. of phases (compressor) | 1 |
| Oil quantity [cm3] | 600 cm³ |
| Oil type | POE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Process connection angle [°] | 37 ° |
| Process connection comments | Rubber plug |
| Process connection diameter [mm] | 6.5 mm |
| Process connection height [mm] | 193 mm |
| Process connection material | Copper |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor SC |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 1.3 kg |
| Refrigerants | R404A |
| RLA | 13.50 A |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| Run capacitor capacitance | 23.5 µF |
| Segment usage | Refrigeration MT |
| Speed Platform | Fixed-speed |
| Start capacitor capacitance | 410 µF |
| Suction connection angle [°] | 37 ° |
| Suction connection diameter [mm] | 9.63 mm |
| Suction connection height [mm] | 193 mm |
| Suction connection material | Copper |
| Swept volume [cm3] | 17.69 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 219 mm |
| Type | SC18 |
| Voltage 60Hz [V] | 115 V |
| Voltage 60Hz [V] [Max] | 115 V |
| Width [mm] | 151 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
