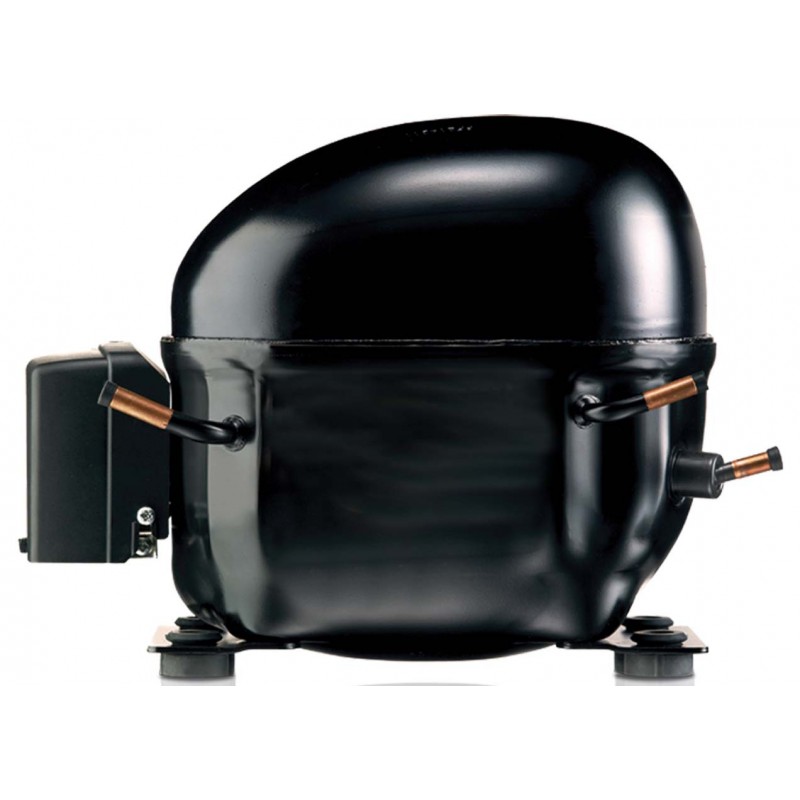

195B0304 DANFOSS REFRIGERATION Reciprocating compressor, NF7CLX
195B0304
DANFOSS REFRIGERATION
Reciprocating compressor, NF7CLX
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R404A, Segment usage: Refrigeration LT; Refrigeration MT, Compressor power supply [V]: 115/1/60
Product details
| Gross weight | 10.828 Kg |
| Net weight | 10.828 Kg |
| Volume | 17.1 Liter |
| EAN | 5702424534974 |
| Gross weight | 10.828 Kg |
| Net weight | 10.828 Kg |
| Volume | 17.1 Liter |
| EAN | 5702424534974 |
| Applications | LBP MBP |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 115/1/60 |
| Configuration code | Single |
| Description | NF7CLX |
| Discharge connection angle [°] | 35 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection diameter [mm] | 6.5 mm |
| Discharge connection material | Copper |
| Economizer | No |
| Family | NF |
| Free gas volume [cm3] | 2280 cm³ |
| Frequency [Hz] | 60 |
| Height from baseplate [mm] | 191 mm |
| High value of nominal voltage at 60Hz [V] | 127 V |
| High value of voltage range at 60Hz [V] | 140 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 254 mm |
| Liquid injection | No |
| Low value of nominal voltage at 60Hz [V] | 115 V |
| Low value of voltage range at 60Hz [V] | 98 V |
| Model number | NF7CLX |
| Motor type | CSIR |
| No. of phases (compressor) | 1 |
| Oil quantity [cm3] | 300 cm³ |
| Oil type | POE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Process connection angle [°] | 25 ° |
| Process connection comments | Rubber plug |
| Process connection diameter [mm] | 6.5 mm |
| Process connection material | Copper |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor NF |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 0.4 kg |
| Refrigerants | R404A |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| Segment usage | Refrigeration LT Refrigeration MT |
| Speed Platform | Fixed-speed |
| Start capacitor capacitance | 320 µF |
| Suction connection angle [°] | 15 ° |
| Suction connection diameter [mm] | 8.2 mm |
| Suction connection material | Copper |
| Swept volume [cm3] | 7.27 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 197 mm |
| Type | NF7 |
| Voltage 60Hz [V] | 115 V |
| Voltage 60Hz [V] [Max] | 127 V |
| Width [mm] | 166 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
| Applications | LBP MBP |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 115/1/60 |
| Configuration code | Single |
| Description | NF7CLX |
| Discharge connection angle [°] | 35 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection diameter [mm] | 6.5 mm |
| Discharge connection material | Copper |
| Economizer | No |
| Family | NF |
| Free gas volume [cm3] | 2280 cm³ |
| Frequency [Hz] | 60 |
| Height from baseplate [mm] | 191 mm |
| High value of nominal voltage at 60Hz [V] | 127 V |
| High value of voltage range at 60Hz [V] | 140 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 254 mm |
| Liquid injection | No |
| Low value of nominal voltage at 60Hz [V] | 115 V |
| Low value of voltage range at 60Hz [V] | 98 V |
| Model number | NF7CLX |
| Motor type | CSIR |
| No. of phases (compressor) | 1 |
| Oil quantity [cm3] | 300 cm³ |
| Oil type | POE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Process connection angle [°] | 25 ° |
| Process connection comments | Rubber plug |
| Process connection diameter [mm] | 6.5 mm |
| Process connection material | Copper |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor NF |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 0.4 kg |
| Refrigerants | R404A |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| Segment usage | Refrigeration LT Refrigeration MT |
| Speed Platform | Fixed-speed |
| Start capacitor capacitance | 320 µF |
| Suction connection angle [°] | 15 ° |
| Suction connection diameter [mm] | 8.2 mm |
| Suction connection material | Copper |
| Swept volume [cm3] | 7.27 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 197 mm |
| Type | NF7 |
| Voltage 60Hz [V] | 115 V |
| Voltage 60Hz [V] [Max] | 127 V |
| Width [mm] | 166 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
