DANFOSS REFRIGERATION195B0125 DANFOSS REFRIGERATION Reciprocating compressor, FF8.5GX

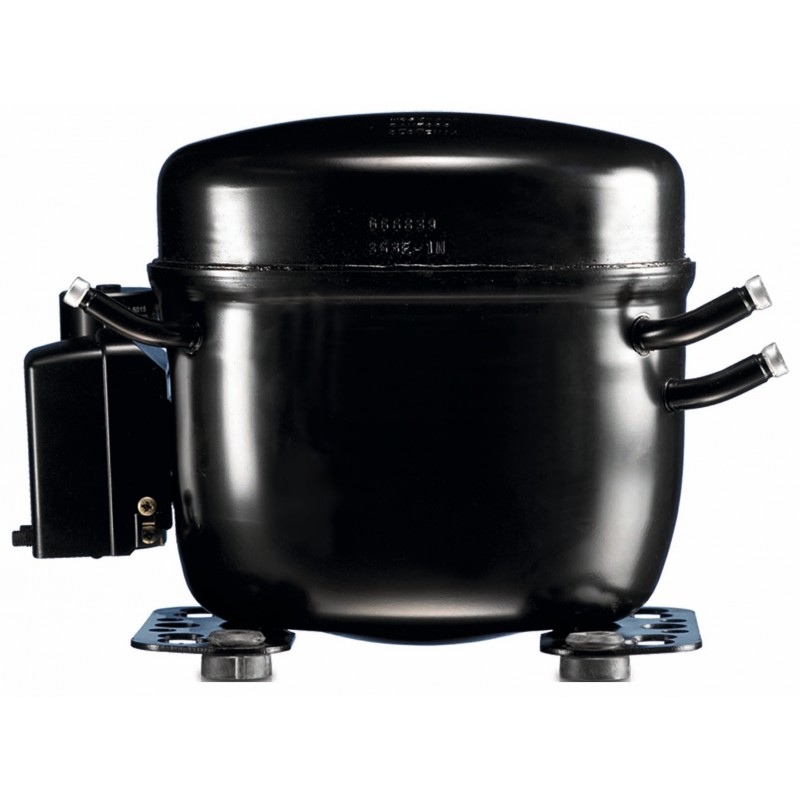

DANFOSS REFRIGERATION 195B0125 195B0125 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

195B0125 DANFOSS REFRIGERATION Reciprocating compressor, FF8.5GX

Reference: 195B0125

Manufacturer: DANFOSS REFRIGERATION

Description:

Reciprocating compressor, FF8.5GX

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Refrigerants: R134a, Segment usage: Refrigeration LT; Refrigeration HT; Refrigeration MT, Compressor power supply [V]: 115/1/60

Product details

Gross weight11.176 Kg
Net weight11.176 Kg
Volume17.1 Liter
EAN5702428583633
Gross weight11.176 Kg
Net weight11.176 Kg
Volume17.1 Liter
EAN5702428583633

ApplicationsHBP
LBP
MBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]6.6
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]115/1/60
Configuration codeSingle
DescriptionFF8.5GX
Discharge connection angle [°]25 °
Discharge connection commentsAl-cap
Discharge connection diameter [mm]6.5 mm
Discharge connection materialCu-plated steel
EconomizerNo
FamilyFF
Free gas volume [cm3]1400 cm³
Frequency [Hz]60
Height from baseplate [mm]191 mm
High value of nominal voltage at 60Hz [V]115 V
High value of voltage range at 60Hz [V]127 V
In scope of WEEE and contain batteriesNo
Length [mm]250 mm
Liquid injectionNo
Low value of nominal voltage at 60Hz [V]115 V
Low value of voltage range at 60Hz [V]98 V
Main winding resistance for single-phase compressors [Ohm]1.9
Model numberFF8.5GX
Motor typeCSIR
No. of phases (compressor)1
Oil quantity [cm3]400 cm³
Oil typePOE
Packing formatSingle pack
Packing quantity1
Process connection angle [°]30 °
Process connection commentsAl-cap
Process connection diameter [mm]6.5 mm
Process connection materialCu-plated steel
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor FF
REACH Candidate List substancesNo
Refrigerant charge [kg] [Max]0.9 kg
RefrigerantsR134a
Rotational speed at 60Hz [rpm]3600 rpm
Segment usageRefrigeration HT
Refrigeration LT
Refrigeration MT
Speed PlatformFixed-speed
Start capacitor capacitance280 µF
Suction connection angle [°]30 °
Suction connection diameter [mm]8.2 mm
Suction connection materialCu-plated steel
Swept volume [cm3]7.95 cm³
TechnologyReciprocating
Total height [mm]196 mm
TypeFF8.5
Voltage 60Hz [V]115 V
Voltage 60Hz [V] [Max]115 V
Width [mm]156 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
ApplicationsHBP
LBP
MBP
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]6.6
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]115/1/60
Configuration codeSingle
DescriptionFF8.5GX
Discharge connection angle [°]25 °
Discharge connection commentsAl-cap
Discharge connection diameter [mm]6.5 mm
Discharge connection materialCu-plated steel
EconomizerNo
FamilyFF
Free gas volume [cm3]1400 cm³
Frequency [Hz]60
Height from baseplate [mm]191 mm
High value of nominal voltage at 60Hz [V]115 V
High value of voltage range at 60Hz [V]127 V
In scope of WEEE and contain batteriesNo
Length [mm]250 mm
Liquid injectionNo
Low value of nominal voltage at 60Hz [V]115 V
Low value of voltage range at 60Hz [V]98 V
Main winding resistance for single-phase compressors [Ohm]1.9
Model numberFF8.5GX
Motor typeCSIR
No. of phases (compressor)1
Oil quantity [cm3]400 cm³
Oil typePOE
Packing formatSingle pack
Packing quantity1
Process connection angle [°]30 °
Process connection commentsAl-cap
Process connection diameter [mm]6.5 mm
Process connection materialCu-plated steel
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor FF
REACH Candidate List substancesNo
Refrigerant charge [kg] [Max]0.9 kg
RefrigerantsR134a
Rotational speed at 60Hz [rpm]3600 rpm
Segment usageRefrigeration HT
Refrigeration LT
Refrigeration MT
Speed PlatformFixed-speed
Start capacitor capacitance280 µF
Suction connection angle [°]30 °
Suction connection diameter [mm]8.2 mm
Suction connection materialCu-plated steel
Swept volume [cm3]7.95 cm³
TechnologyReciprocating
Total height [mm]196 mm
TypeFF8.5
Voltage 60Hz [V]115 V
Voltage 60Hz [V] [Max]115 V
Width [mm]156 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
