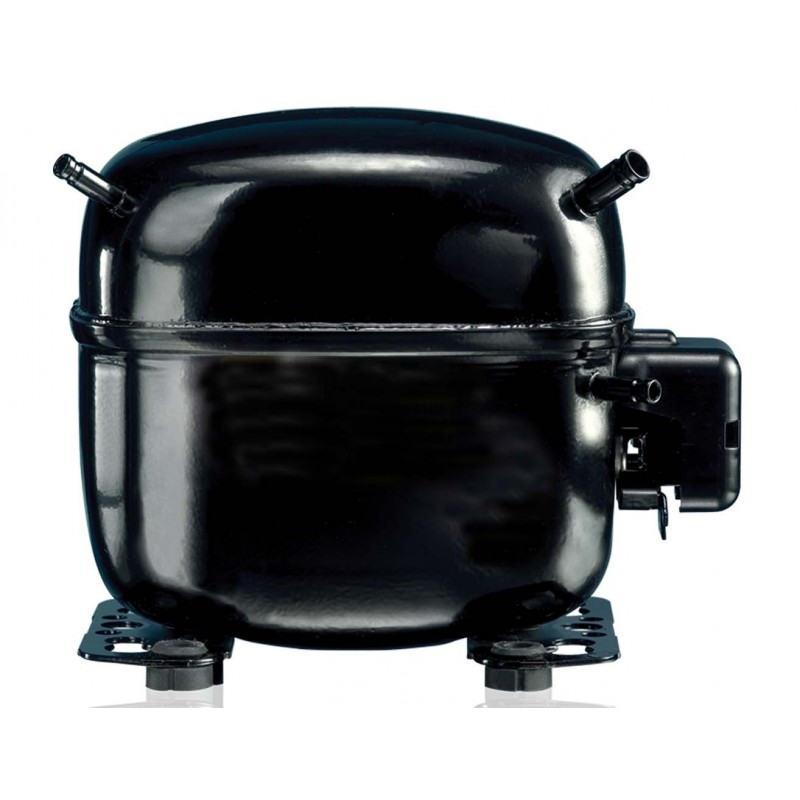

195B0042 DANFOSS REFRIGERATION Reciprocating compressor, SC12G
195B0042
DANFOSS REFRIGERATION
Reciprocating compressor, SC12G
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R134a, Segment usage: Refrigeration LT; Refrigeration MT, Compressor power supply [V]: NA
Product details
| Gross weight | 13.816 Kg |
| Net weight | 13.816 Kg |
| Volume | 17.7 Liter |
| EAN | 5702428917100 |
| Gross weight | 13.816 Kg |
| Net weight | 13.816 Kg |
| Volume | 17.7 Liter |
| EAN | 5702428917100 |
| Applications | HBP LBP MBP |
| Approval | CE UL |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 4.2 |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor B | 240 uF |
| Colour | Black |
| Compressor power supply [V] | NA |
| Configuration code | Single |
| Cut in current HST [A] | 39.7 A |
| Description | SC12G |
| Discharge connection angle [°] | 37 ° |
| Discharge connection comments | Al-cap |
| Discharge connection diameter [mm] | 6.5 mm |
| Discharge connection height [mm] | 100 mm |
| Discharge connection material | Cu-plated steel |
| Drawing number | 8258 |
| Economizer | No |
| Family | SC |
| Free gas volume [cm3] | 1460 cm³ |
| Frequency [Hz] | 60 |
| Height from baseplate [mm] | 203 mm |
| High value of nominal voltage at 60Hz [V] | 115 V |
| High value of voltage range at 60Hz [V] | 127 V |
| In scope of WEEE and contain batteries | No |
| Low value of nominal voltage at 60Hz [V] | 115 V |
| Low value of voltage range at 60Hz [V] | 103 V |
| LRA HST [A] | 39.7 A |
| Main winding resistance for single-phase compressors [Ohm] | 1 |
| Model number | SC12G |
| Motor type | CSIR |
| No. of phases (compressor) | 1 |
| Oil charge [L] | 550 L |
| Oil quantity [cm3] | 550 cm³ |
| Oil type | POE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Packing type single pack | Single pack code number |
| Phase | 1 |
| Process connection angle [°] | 37 ° |
| Process connection comments | Al-cap |
| Process connection diameter [mm] | 6.5 mm |
| Process connection material | Cu-plated steel |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor SC |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 1.3 kg |
| Refrigerants | R134a |
| RLA | 7.6 A |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Refrigeration LT Refrigeration MT |
| Suction connection angle [°] | 37 ° |
| Suction connection diameter [mm] | 8.2 mm |
| Suction connection height [mm] | 183 mm |
| Suction connection material | Cu-plated steel |
| Swept volume [cm3] | 12.87 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 209 mm |
| Type | SC12 |
| Voltage 60Hz [V] | 115 V |
| Voltage 60Hz [V] [Max] | 115 V |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
| Applications | HBP LBP MBP |
| Approval | CE UL |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 4.2 |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor B | 240 uF |
| Colour | Black |
| Compressor power supply [V] | NA |
| Configuration code | Single |
| Cut in current HST [A] | 39.7 A |
| Description | SC12G |
| Discharge connection angle [°] | 37 ° |
| Discharge connection comments | Al-cap |
| Discharge connection diameter [mm] | 6.5 mm |
| Discharge connection height [mm] | 100 mm |
| Discharge connection material | Cu-plated steel |
| Drawing number | 8258 |
| Economizer | No |
| Family | SC |
| Free gas volume [cm3] | 1460 cm³ |
| Frequency [Hz] | 60 |
| Height from baseplate [mm] | 203 mm |
| High value of nominal voltage at 60Hz [V] | 115 V |
| High value of voltage range at 60Hz [V] | 127 V |
| In scope of WEEE and contain batteries | No |
| Low value of nominal voltage at 60Hz [V] | 115 V |
| Low value of voltage range at 60Hz [V] | 103 V |
| LRA HST [A] | 39.7 A |
| Main winding resistance for single-phase compressors [Ohm] | 1 |
| Model number | SC12G |
| Motor type | CSIR |
| No. of phases (compressor) | 1 |
| Oil charge [L] | 550 L |
| Oil quantity [cm3] | 550 cm³ |
| Oil type | POE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Packing type single pack | Single pack code number |
| Phase | 1 |
| Process connection angle [°] | 37 ° |
| Process connection comments | Al-cap |
| Process connection diameter [mm] | 6.5 mm |
| Process connection material | Cu-plated steel |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor SC |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 1.3 kg |
| Refrigerants | R134a |
| RLA | 7.6 A |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Refrigeration LT Refrigeration MT |
| Suction connection angle [°] | 37 ° |
| Suction connection diameter [mm] | 8.2 mm |
| Suction connection height [mm] | 183 mm |
| Suction connection material | Cu-plated steel |
| Swept volume [cm3] | 12.87 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 209 mm |
| Type | SC12 |
| Voltage 60Hz [V] | 115 V |
| Voltage 60Hz [V] [Max] | 115 V |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
