Images are for illustrative purposes only. Please refer to data sheet for details.

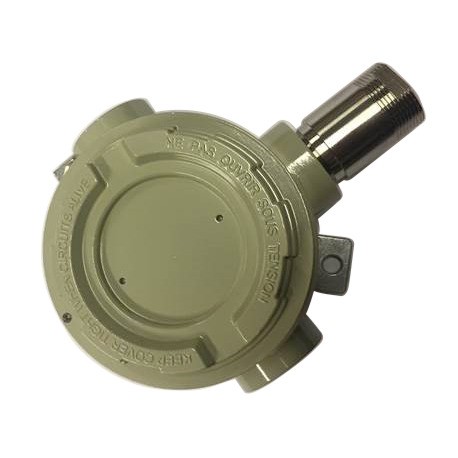

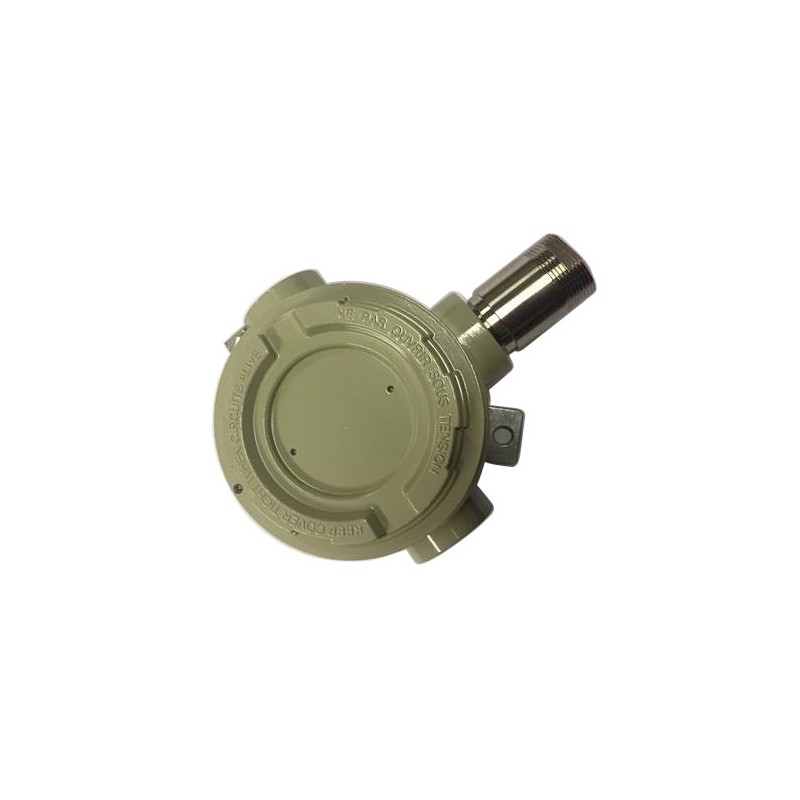

148H6068 DANFOSS REFRIGERATION GDA unit SC 10000 HD low temp
Reference: 148H6068
Manufacturer: DANFOSS REFRIGERATION
Description:
GDA unit SC 10000 HD low temp
Gas detection unit, Heavy Duty
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
LAST VIEWED
MORE INFO
Gas detecting sensor version: Heavy Duty, Sensor 1 type: Semiconductor, Refrig. range [ppm] sensor1: 0 - 10000
Product details
| Gross weight | 1.33 Kilogram |
| Net weight | 1.33 Kilogram |
| Volume | 4.19 Liter |
| EAN | 5702428668194 |
| Type | Heavy Duty |
| Product group | Sensors |
| Product Name Description | Gas detection unit |
| Gross weight | 1.33 Kilogram |
| Net weight | 1.33 Kilogram |
| Volume | 4.19 Liter |
| EAN | 5702428668194 |
| Type | Heavy Duty |
| Product group | Sensors |
| Product Name Description | Gas detection unit |
| Alarmlimits high [ppm] sensor1 | 9000 ppm |
| Alarmlimits low [ppm] sensor1 | 5000 ppm |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Contains batteries | No |
| Division | 40 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gas detecting sensor version | Heavy Duty |
| Packing format | Multi pack |
| Parts included | Cable gland Complete unit Mounting kit Calibration certificate |
| PFAS content [Yes/No] | No |
| Power consumption [A] | 0.13 A |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | No |
| Refrig. range [ppm] sensor1 [max] | 10000 ppm |
| Refrig. range [ppm] sensor1 [min] | 0 ppm |
| Refrigerants | R717 |
| Relative humidity (RH) [%] [max] | 90 % |
| Relative humidity (RH) [%] [min] | 15 % |
| Response delay [s] | 0 s |
| Sensor 1 type | Semiconductor |
| Supply voltage [V] DC [max] | 28 V |
| Supply voltage [V] DC [min] | 16 V |
| Temperature range [°C] [max] | 50 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 122 °F |
| Temperature range [°F] [min] | -40 °F |
| Alarmlimits high [ppm] sensor1 | 9000 ppm |
| Alarmlimits low [ppm] sensor1 | 5000 ppm |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Contains batteries | No |
| Division | 40 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gas detecting sensor version | Heavy Duty |
| Packing format | Multi pack |
| Parts included | Cable gland Complete unit Mounting kit Calibration certificate |
| PFAS content [Yes/No] | No |
| Power consumption [A] | 0.13 A |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | No |
| Refrig. range [ppm] sensor1 [max] | 10000 ppm |
| Refrig. range [ppm] sensor1 [min] | 0 ppm |
| Refrigerants | R717 |
| Relative humidity (RH) [%] [max] | 90 % |
| Relative humidity (RH) [%] [min] | 15 % |
| Response delay [s] | 0 s |
| Sensor 1 type | Semiconductor |
| Supply voltage [V] DC [max] | 28 V |
| Supply voltage [V] DC [min] | 16 V |
| Temperature range [°C] [max] | 50 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 122 °F |
| Temperature range [°F] [min] | -40 °F |
