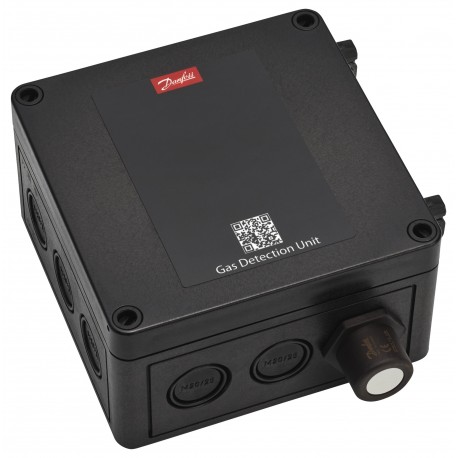

148H6053 DANFOSS REFRIGERATION Gas detection unit
148H6053
DANFOSS REFRIGERATION
Gas detection unit
GDH Gas detection unit P 5000 Premium.
Gas detection unit, Premium
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Gas detecting sensor version: Premium, Sensor 1 type: Pellistor, Refrig. range [ppm] sensor1: 0 - 5000
Product details
| Gross weight | 0.587 Kilogram |
| Net weight | 0.46 Kilogram |
| Volume | 3.752 Liter |
| EAN | 5714279919530 |
| Type | Premium |
| Product group | Sensors |
| Product Name Description | Gas detection unit |
| Gross weight | 0.587 Kilogram |
| Net weight | 0.46 Kilogram |
| Volume | 3.752 Liter |
| EAN | 5714279919530 |
| Type | Premium |
| Product group | Sensors |
| Product Name Description | Gas detection unit |
| Alarmlimits high [ppm] sensor1 | 2500 ppm |
| Alarmlimits low [ppm] sensor1 | 800 ppm |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Contains batteries | No |
| Division | 40 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gas detecting sensor version | Premium |
| Packing format | Multi pack |
| Parts included | Cable gland Complete unit Mounting kit Calibration certificate |
| PFAS content [Yes/No] | No |
| Power consumption [A] | 0.21 A |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | No |
| Refrig. range [ppm] sensor1 [max] | 5000 ppm |
| Refrig. range [ppm] sensor1 [min] | 0 ppm |
| Refrigerants | R290 R600 R600a |
| Relative humidity (RH) [%] [max] | 90 % |
| Relative humidity (RH) [%] [min] | 15 % |
| Response delay [s] | 0 s |
| Sensor 1 type | Pellistor |
| Supply voltage [V] DC [max] | 29 V |
| Supply voltage [V] DC [min] | 19 V |
| Temperature range [°C] [max] | 50 °C |
| Temperature range [°C] [min] | -30 °C |
| Temperature range [°F] [max] | 122 °F |
| Temperature range [°F] [min] | -22 °F |
| Alarmlimits high [ppm] sensor1 | 2500 ppm |
| Alarmlimits low [ppm] sensor1 | 800 ppm |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Contains batteries | No |
| Division | 40 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gas detecting sensor version | Premium |
| Packing format | Multi pack |
| Parts included | Cable gland Complete unit Mounting kit Calibration certificate |
| PFAS content [Yes/No] | No |
| Power consumption [A] | 0.21 A |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | No |
| Refrig. range [ppm] sensor1 [max] | 5000 ppm |
| Refrig. range [ppm] sensor1 [min] | 0 ppm |
| Refrigerants | R290 R600 R600a |
| Relative humidity (RH) [%] [max] | 90 % |
| Relative humidity (RH) [%] [min] | 15 % |
| Response delay [s] | 0 s |
| Sensor 1 type | Pellistor |
| Supply voltage [V] DC [max] | 29 V |
| Supply voltage [V] DC [min] | 19 V |
| Temperature range [°C] [max] | 50 °C |
| Temperature range [°C] [min] | -30 °C |
| Temperature range [°F] [max] | 122 °F |
| Temperature range [°F] [min] | -22 °F |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 148H6053 148H6053 EN_148H6036.pdf | 816 Kbytes |
|
