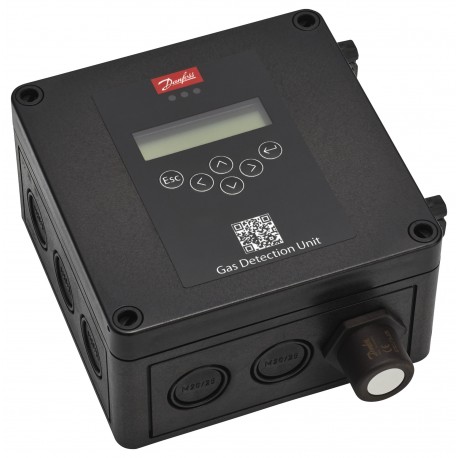

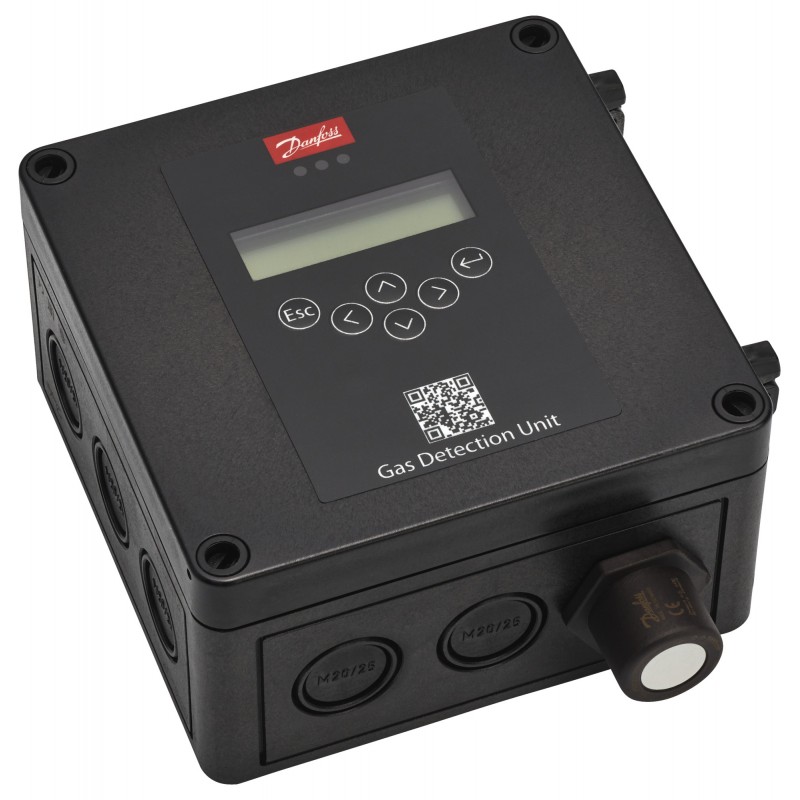

148H6052 DANFOSS REFRIGERATION Gas detection unit
148H6052
DANFOSS REFRIGERATION
Gas detection unit
GDHF Gas detection unit R134a SC2000Flex
Gas detection unit, Premium
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Gas detecting sensor version: Premium flex, Sensor 1 type: Semiconductor, Refrig. range [ppm] sensor1: 0 - 2000
Product details
| Gross weight | 0.629 Kg |
| Net weight | 0.485 Kg |
| Volume | 3.822 Liter |
| EAN | 5714279919547 |
| Gross weight | 0.629 Kg |
| Net weight | 0.485 Kg |
| Volume | 3.822 Liter |
| EAN | 5714279919547 |
| Alarmlimits high [ppm] sensor1 | 900 ppm |
| Alarmlimits low [ppm] sensor1 | 500 ppm |
| Equipment | LCD Display |
| EU RoHS compliance | No - out of scope |
| Gas detecting sensor version | Premium flex |
| In scope of WEEE and contain batteries | No |
| Packing format | Single pack |
| Parts included | Cable gland Complete unit Mounting kit Calibration certificate |
| Power consumption [A] | 0.21 A |
| Product group | Sensors |
| Product Name Description | Gas detection unit |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrig. range [ppm] sensor1 [max] | 2000 ppm |
| Refrig. range [ppm] sensor1 [min] | 0 ppm |
| Refrigerants | R134a |
| Relative humidity (RH) [%] [max] | 90 % |
| Relative humidity (RH) [%] [min] | 15 % |
| Response delay [s] | 0 s |
| Sensor 1 type | Semiconductor |
| Supply voltage [V] DC [max] | 29 V |
| Supply voltage [V] DC [min] | 19 V |
| Temperature range [°C] [max] | 50 °C |
| Temperature range [°C] [min] | -10 °C |
| Temperature range [°F] [max] | 122 °F |
| Temperature range [°F] [min] | 14 °F |
| Type | Premium |
| Alarmlimits high [ppm] sensor1 | 900 ppm |
| Alarmlimits low [ppm] sensor1 | 500 ppm |
| Equipment | LCD Display |
| EU RoHS compliance | No - out of scope |
| Gas detecting sensor version | Premium flex |
| In scope of WEEE and contain batteries | No |
| Packing format | Single pack |
| Parts included | Cable gland Complete unit Mounting kit Calibration certificate |
| Power consumption [A] | 0.21 A |
| Product group | Sensors |
| Product Name Description | Gas detection unit |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrig. range [ppm] sensor1 [max] | 2000 ppm |
| Refrig. range [ppm] sensor1 [min] | 0 ppm |
| Refrigerants | R134a |
| Relative humidity (RH) [%] [max] | 90 % |
| Relative humidity (RH) [%] [min] | 15 % |
| Response delay [s] | 0 s |
| Sensor 1 type | Semiconductor |
| Supply voltage [V] DC [max] | 29 V |
| Supply voltage [V] DC [min] | 19 V |
| Temperature range [°C] [max] | 50 °C |
| Temperature range [°C] [min] | -10 °C |
| Temperature range [°F] [max] | 122 °F |
| Temperature range [°F] [min] | 14 °F |
| Type | Premium |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 148H6052 148H6052 EN_148H6216.pdf | 984 Kbytes |
 |
