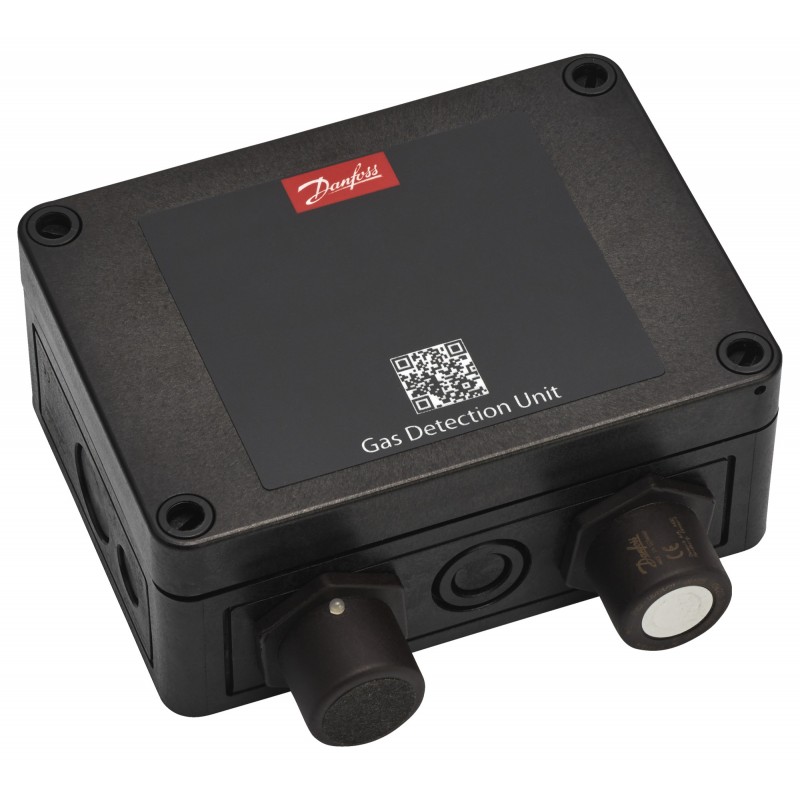

148H6009 DANFOSS REFRIGERATION Gas detection unit
148H6009
DANFOSS REFRIGERATION
Gas detection unit
Gas detection unit, Basic
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Gas detecting sensor version: Basic +, Sensor 1 type: Electrochemical, Refrig. range [ppm] sensor1: 0 - 300
Product details
| Gross weight | 0.365 Kg |
| Net weight | 0.282 Kg |
| Volume | 1.259 Liter |
| EAN | 5714279919936 |
| Gross weight | 0.365 Kg |
| Net weight | 0.282 Kg |
| Volume | 1.259 Liter |
| EAN | 5714279919936 |
| Alarmlimits high [ppm] sensor1 | 150 ppm |
| Alarmlimits low [ppm] sensor1 | 25 ppm |
| Equipment | Buzzer & Light |
| Frequency [Hz] | 50/60 Hz |
| Gas detecting sensor version | Basic + |
| In scope of WEEE and contain batteries | No |
| Packing format | Single pack |
| Parts included | Cable gland Complete unit Mounting kit Calibration certificate |
| Power consumption [A] | 0.25 A |
| Product group | Sensors |
| Product Name Description | Gas detection unit |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrig. range [ppm] sensor1 [max] | 300 ppm |
| Refrig. range [ppm] sensor1 [min] | 0 ppm |
| Refrigerants | R717 |
| Relative humidity (RH) [%] [max] | 90 % |
| Relative humidity (RH) [%] [min] | 15 % |
| Response delay [s] | 0 s |
| Sensor 1 type | Electrochemical |
| Supply voltage [V] AC [max] | 29 V |
| Supply voltage [V] AC [min] | 19 V |
| Supply voltage [V] DC [max] | 29 V |
| Supply voltage [V] DC [min] | 19 V |
| Temperature range [°C] [max] | 50 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 122 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | Basic |
| Alarmlimits high [ppm] sensor1 | 150 ppm |
| Alarmlimits low [ppm] sensor1 | 25 ppm |
| Equipment | Buzzer & Light |
| Frequency [Hz] | 50/60 Hz |
| Gas detecting sensor version | Basic + |
| In scope of WEEE and contain batteries | No |
| Packing format | Single pack |
| Parts included | Cable gland Complete unit Mounting kit Calibration certificate |
| Power consumption [A] | 0.25 A |
| Product group | Sensors |
| Product Name Description | Gas detection unit |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrig. range [ppm] sensor1 [max] | 300 ppm |
| Refrig. range [ppm] sensor1 [min] | 0 ppm |
| Refrigerants | R717 |
| Relative humidity (RH) [%] [max] | 90 % |
| Relative humidity (RH) [%] [min] | 15 % |
| Response delay [s] | 0 s |
| Sensor 1 type | Electrochemical |
| Supply voltage [V] AC [max] | 29 V |
| Supply voltage [V] AC [min] | 19 V |
| Supply voltage [V] DC [max] | 29 V |
| Supply voltage [V] DC [min] | 19 V |
| Temperature range [°C] [max] | 50 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 122 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | Basic |
