Images are for illustrative purposes only. Please refer to data sheet for details.

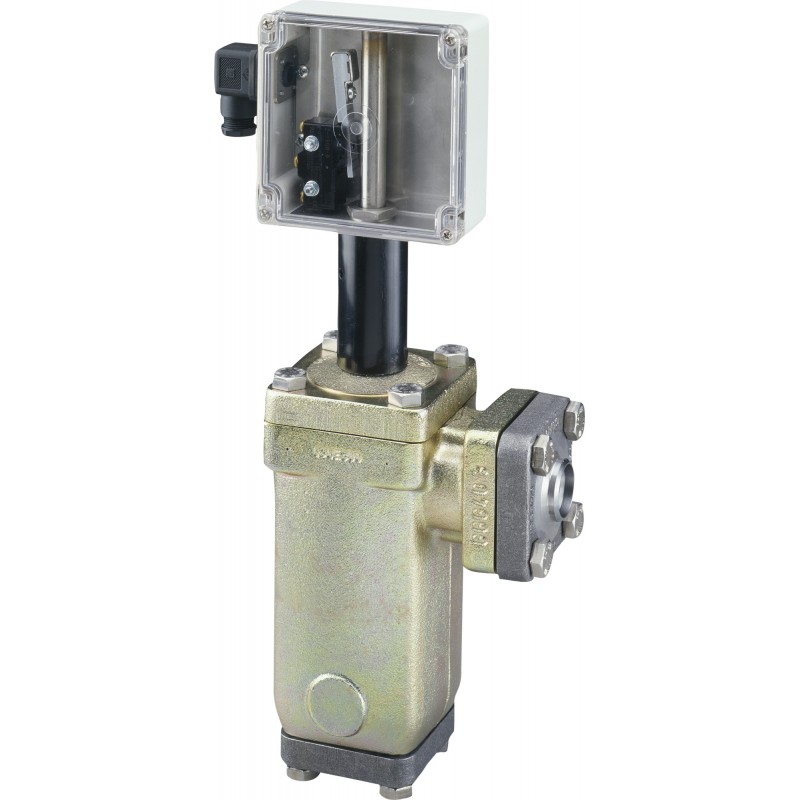

148H3204 DANFOSS REFRIGERATION Liquid level switch
Reference: 148H3204
Manufacturer: DANFOSS REFRIGERATION
Description:
Liquid level switch
AKS 38 Float switch, Butt weld, ANSI DN2
Liquid level switch, AKS 38, Butt weld, 1 in
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
MORE INFO
Connection type: Butt weld, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 28
Product details
| Gross weight | 10.885 Kilogram |
| Net weight | 8 Kilogram |
| Volume | 24.43 Liter |
| EAN | 5702428242219 |
| Type | AKS 38 |
| Product group | Switches and thermostats |
| Product Name Description | Liquid level switch |
| Gross weight | 10.885 Kilogram |
| Net weight | 8 Kilogram |
| Volume | 24.43 Liter |
| EAN | 5702428242219 |
| Type | AKS 38 |
| Product group | Switches and thermostats |
| Product Name Description | Liquid level switch |
| Approval | CMIM EAC LLC CDC TYSK |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection size [in] | 1 in |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Connection type | Butt weld |
| Contains batteries | No |
| Electrical connection size | Pg 11 |
| Electrical connection standard | DIN 43650 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 2 |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| PED category | I |
| Product accessories | Liq. level switch accessories |
| Product description | Float Switch |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A |
| Serviceable | Liq. level switch spare parts |
| Temperature range [°C] [max] | 65 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 149 °F |
| Temperature range [°F] [min] | -58 °F |
| Approval | CMIM EAC LLC CDC TYSK |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection size [in] | 1 in |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Connection type | Butt weld |
| Contains batteries | No |
| Electrical connection size | Pg 11 |
| Electrical connection standard | DIN 43650 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 2 |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| PED category | I |
| Product accessories | Liq. level switch accessories |
| Product description | Float Switch |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A |
| Serviceable | Liq. level switch spare parts |
| Temperature range [°C] [max] | 65 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 149 °F |
| Temperature range [°F] [min] | -58 °F |
