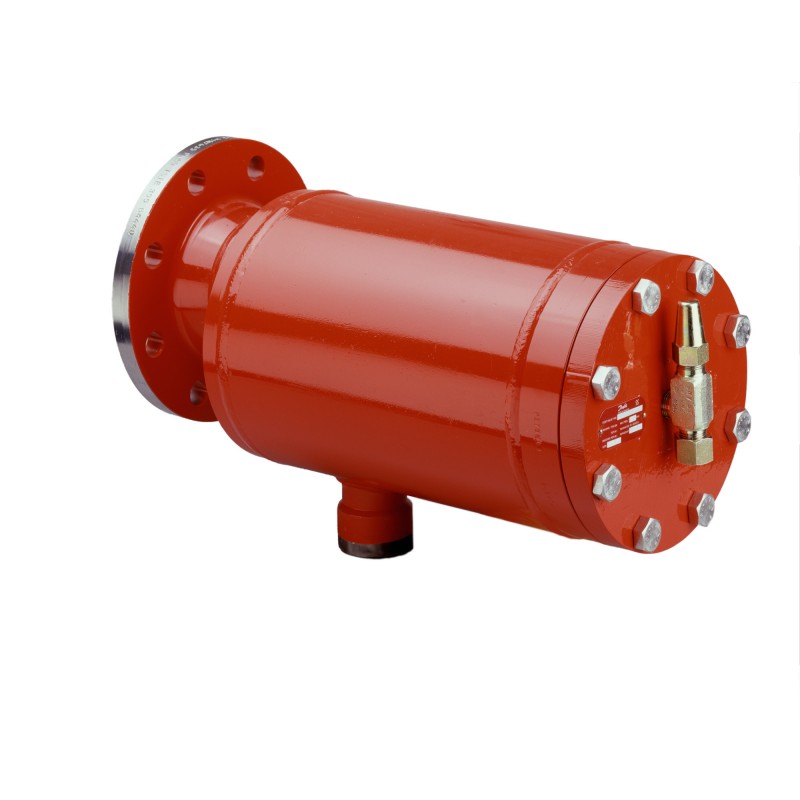

148G3763
DANFOSS REFRIGERATION
1
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Inlet connection size [mm]: 150.0, Inlet connection type: Flange, Outlet connection size [mm]: 50.0, Outlet connection type: Butt weld, Max. Working Pressure [bar]: 25.0, Temperature range [°C]: -50 - 80, 1.6 L - 4.6 L, Net volume [l]: 6.400
Gross weight | 49.4 Kg |
Net weight | 41.1 Kg |
Volume | 108 Liter |
EAN | 5702428413305 |
Gross weight | 49.4 Kg |
Net weight | 41.1 Kg |
Volume | 108 Liter |
EAN | 5702428413305 |
Approval | CE EAC LLC CDC TYSK UKCA |
Body material | Steel |
Colour Paint | Reddish brown |
Connection standard | DIN 2635/2512-F EN 1092-1 EN 10220 |
EU RoHS compliance | No - out of scope |
Fluid Group | 1 2 |
Further information | 2 ext conn. (drain/equaliz) |
In scope of WEEE and contain batteries | No |
Inlet connection size [in] | 6 in |
Inlet connection size [mm] | 150 mm |
Inlet connection type | Flange |
Liquid volume range [gal US] [max] | 1.22 gal |
Liquid volume range [gal US] [min] | 0.42 gal |
Liquid volume range [l] [max] | 4.6 L |
Liquid volume range [l] [min] | 1.6 L |
Max. Working Pressure [bar] | 25 bar |
Max. Working Pressure [psig] | 363 psig |
Net volume [l] | 6.4 L |
Netto volume [gal US] | 1.69 gal |
Nozzle size [mm] | 60 mm |
Outlet connection size [in] | 2 in |
Outlet connection size [mm] | 50 mm |
Outlet connection type | Butt weld |
Packing format | Single pack |
PED category | III |
Product accessories | Float exp. valve accessories |
Product description | Float Valve |
Product group | Liquid level regulating valves |
Product Name Description | Float valve |
Quantity per packing format | 1 pc |
Rated cap. conditions [IMP] | R717: Temp. 14 - 95 °F |
Rated cap. conditions [SI] | R717: Temp. -10 - 35 °C |
Rated capacity R717 [kW] | 1200 kW |
Rated capacity R717 [TR] | 341 TR |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A |
Serviceable | Float exp. valve spare parts |
Shell volume [gal US] | 2.17 gal |
Shell volume [l] | 8.2 L |
Side branch 2 conn. size [in] | 1/2 |
Side branch Int/Ext | External |
Temperature range [°C] [max] | 80 °C |
Temperature range [°C] [min] | -50 °C |
Temperature range [°F] [max] | 176 °F |
Temperature range [°F] [min] | -58 °F |
Type | HFI 060 F |
Valve constant | 50.36 |
Approval | CE EAC LLC CDC TYSK UKCA |
Body material | Steel |
Colour Paint | Reddish brown |
Connection standard | DIN 2635/2512-F EN 1092-1 EN 10220 |
EU RoHS compliance | No - out of scope |
Fluid Group | 1 2 |
Further information | 2 ext conn. (drain/equaliz) |
In scope of WEEE and contain batteries | No |
Inlet connection size [in] | 6 in |
Inlet connection size [mm] | 150 mm |
Inlet connection type | Flange |
Liquid volume range [gal US] [max] | 1.22 gal |
Liquid volume range [gal US] [min] | 0.42 gal |
Liquid volume range [l] [max] | 4.6 L |
Liquid volume range [l] [min] | 1.6 L |
Max. Working Pressure [bar] | 25 bar |
Max. Working Pressure [psig] | 363 psig |
Net volume [l] | 6.4 L |
Netto volume [gal US] | 1.69 gal |
Nozzle size [mm] | 60 mm |
Outlet connection size [in] | 2 in |
Outlet connection size [mm] | 50 mm |
Outlet connection type | Butt weld |
Packing format | Single pack |
PED category | III |
Product accessories | Float exp. valve accessories |
Product description | Float Valve |
Product group | Liquid level regulating valves |
Product Name Description | Float valve |
Quantity per packing format | 1 pc |
Rated cap. conditions [IMP] | R717: Temp. 14 - 95 °F |
Rated cap. conditions [SI] | R717: Temp. -10 - 35 °C |
Rated capacity R717 [kW] | 1200 kW |
Rated capacity R717 [TR] | 341 TR |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A |
Serviceable | Float exp. valve spare parts |
Shell volume [gal US] | 2.17 gal |
Shell volume [l] | 8.2 L |
Side branch 2 conn. size [in] | 1/2 |
Side branch Int/Ext | External |
Temperature range [°C] [max] | 80 °C |
Temperature range [°C] [min] | -50 °C |
Temperature range [°F] [max] | 176 °F |
Temperature range [°F] [min] | -58 °F |
Type | HFI 060 F |
Valve constant | 50.36 |
