DANFOSS REFRIGERATION148G3762 DANFOSS REFRIGERATION Float valve
DANFOSS REFRIGERATION 148G3762 148G3762 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

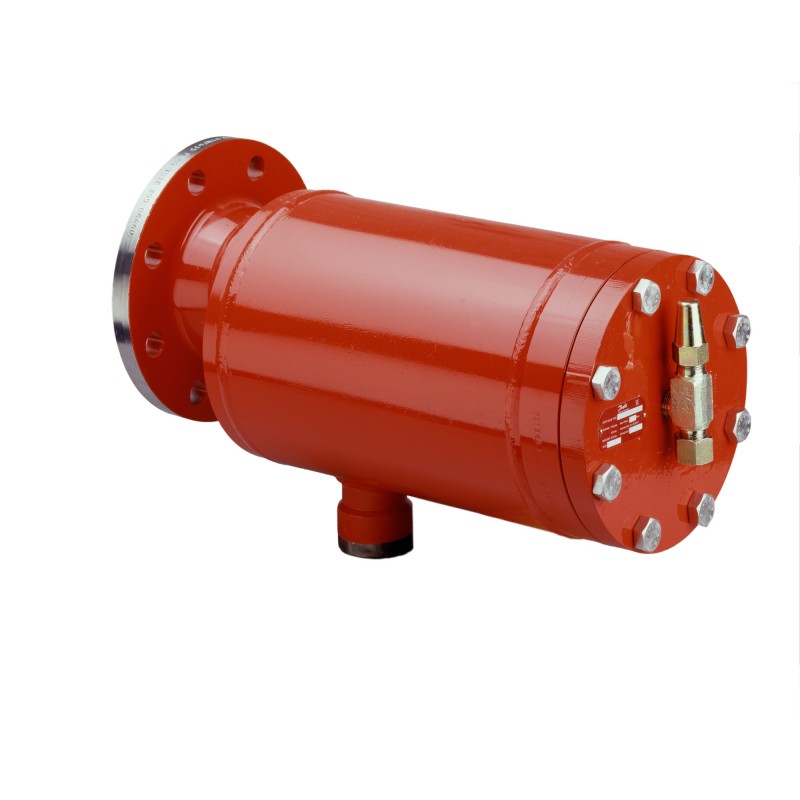

148G3762 DANFOSS REFRIGERATION Float valve

Reference: 148G3762

Manufacturer: DANFOSS REFRIGERATION

Description:

Float valve
HFI 050 FD 150 FLOAT VALVE w. 2 ex. con.
Float valve, HFI 050 F

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 5.983,16 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Inlet connection size [mm]: 150, Inlet connection type: Flange, Outlet connection size [mm]: 50, Outlet connection type: Butt weld, Max. Working Pressure [bar]: 25, Temperature range [°C]: -50 - 80

Product details

Gross weight47.5 Kilogram
Net weight0.007 Kilogram
Volume108.199 Liter
EAN5702428412391
TypeHFI 050 F
Product groupLiquid level regulating valves
Product Name DescriptionFloat valve
Gross weight47.5 Kilogram
Net weight0.007 Kilogram
Volume108.199 Liter
EAN5702428412391
TypeHFI 050 F
Product groupLiquid level regulating valves
Product Name DescriptionFloat valve

ApprovalCE
EAC
LLC CDC TYSK
CE markYes
China RoHS complianceYes
China RoHS exemption clauseNo
Colour PaintReddish brown
Connection standardDIN 2635/2512-F
EN 1092-1
EN 10220
Contains batteriesNo
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group1
2
Further information2 ext conn. (drain/equaliz)
Inlet connection size [in]6 in
Inlet connection size [mm]150 mm
Inlet connection typeFlange
Max. Working Pressure [bar]25 bar
Max. Working Pressure [psig]363 psig
Nozzle size [mm]50 mm
Outlet connection size [in]2 in
Outlet connection size [mm]50 mm
Outlet connection typeButt weld
Packing formatSingle pack
PED categoryIII
Product accessoriesFloat exp. valve accessories
Product descriptionFloat Valve
Quantity per packing format1 pc
Rated cap. conditions [IMP]R717: Temp. 14 - 95 °F
Rated cap. conditions [SI]R717: Temp. -10 - 35 °C
Rated capacity R717 [kW]800 kW
Rated capacity R717 [TR]227 TR
REACH Candidate List substancesNo
RefrigerantsR134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R717
R507A
ServiceableFloat exp. valve spare parts
Shell volume [l]8.2 L
Temperature range [°C] [max]80 °C
Temperature range [°C] [min]-50 °C
Temperature range [°F] [max]176 °F
Temperature range [°F] [min]-58 °F
Valve constant33.58
ApprovalCE
EAC
LLC CDC TYSK
CE markYes
China RoHS complianceYes
China RoHS exemption clauseNo
Colour PaintReddish brown
Connection standardDIN 2635/2512-F
EN 1092-1
EN 10220
Contains batteriesNo
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group1
2
Further information2 ext conn. (drain/equaliz)
Inlet connection size [in]6 in
Inlet connection size [mm]150 mm
Inlet connection typeFlange
Max. Working Pressure [bar]25 bar
Max. Working Pressure [psig]363 psig
Nozzle size [mm]50 mm
Outlet connection size [in]2 in
Outlet connection size [mm]50 mm
Outlet connection typeButt weld
Packing formatSingle pack
PED categoryIII
Product accessoriesFloat exp. valve accessories
Product descriptionFloat Valve
Quantity per packing format1 pc
Rated cap. conditions [IMP]R717: Temp. 14 - 95 °F
Rated cap. conditions [SI]R717: Temp. -10 - 35 °C
Rated capacity R717 [kW]800 kW
Rated capacity R717 [TR]227 TR
REACH Candidate List substancesNo
RefrigerantsR134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R717
R507A
ServiceableFloat exp. valve spare parts
Shell volume [l]8.2 L
Temperature range [°C] [max]80 °C
Temperature range [°C] [min]-50 °C
Temperature range [°F] [max]176 °F
Temperature range [°F] [min]-58 °F
Valve constant33.58

DATASHEET - PDF

Title
Size
Type
148G3762 148G3762 DE_148G3097.pdf
1 Mbytes
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
