DANFOSS REFRIGERATION148G3607 DANFOSS REFRIGERATION Pressure control valve, KDC 200

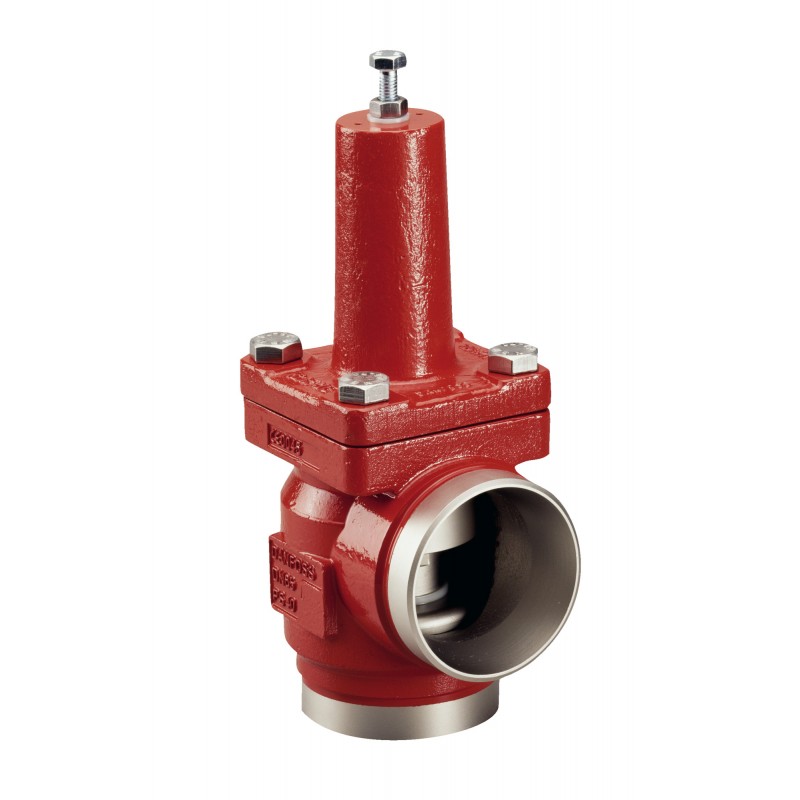

DANFOSS REFRIGERATION 148G3607 148G3607 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

148G3607 DANFOSS REFRIGERATION Pressure control valve, KDC 200

Reference: 148G3607

Manufacturer: DANFOSS REFRIGERATION

Description:

Pressure control valve, KDC 200

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 4.901,19 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Connection size [mm]: 200, Connection type: Butt weld, Kv Fully open [m3/h]: 757, Max. Working Pressure [bar]: 40

Product details

Gross weight99.63 Kilogram
Net weight92 Kilogram
Volume215.28 Liter
EAN5702428279550
TypeKDC 200
Product groupPress. and temp. regul. valves
Product Name DescriptionPressure control valve
Gross weight99.63 Kilogram
Net weight92 Kilogram
Volume215.28 Liter
EAN5702428279550
TypeKDC 200
Product groupPress. and temp. regul. valves
Product Name DescriptionPressure control valve

ApprovalCE
CE markYes
China RoHS complianceYes
China RoHS exemption clauseNo
Connection size [in]8 in
Connection size [mm]200 mm
Connection standardASME B 36.10M SCHEDULE 40
Connection typeButt weld
Contains batteriesNo
Cv Fully open [gal/min]878 gal/min
Differential pressure [bar]0.5 bar
Differential pressure [psi]7.5 psi
DirectionAngleway
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group1
Inlet connection size [mm]200 mm
Kv Fully open [m3/h]757 m³/h
Max. Working Pressure [bar]40 bar
Max. Working Pressure [psig]580 psig
Packing formatSingle pack
PED categoryIII
Product descriptionMultifunction compressor valve
Quantity per packing format1 pc
REACH Candidate List substancesNo
RefrigerantsR134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R717
R744
R507A
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]-50 °C
Temperature range [°F] [max]302 °F
Temperature range [°F] [min]-58 °F
ApprovalCE
CE markYes
China RoHS complianceYes
China RoHS exemption clauseNo
Connection size [in]8 in
Connection size [mm]200 mm
Connection standardASME B 36.10M SCHEDULE 40
Connection typeButt weld
Contains batteriesNo
Cv Fully open [gal/min]878 gal/min
Differential pressure [bar]0.5 bar
Differential pressure [psi]7.5 psi
DirectionAngleway
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group1
Inlet connection size [mm]200 mm
Kv Fully open [m3/h]757 m³/h
Max. Working Pressure [bar]40 bar
Max. Working Pressure [psig]580 psig
Packing formatSingle pack
PED categoryIII
Product descriptionMultifunction compressor valve
Quantity per packing format1 pc
REACH Candidate List substancesNo
RefrigerantsR134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R717
R744
R507A
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]-50 °C
Temperature range [°F] [max]302 °F
Temperature range [°F] [min]-58 °F
