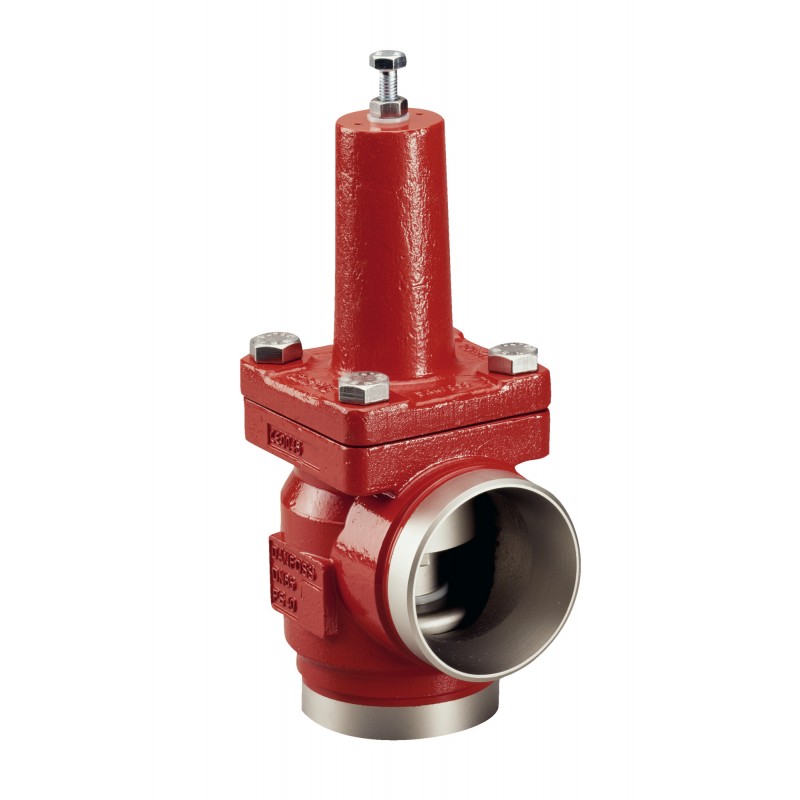

148G3595 DANFOSS REFRIGERATION Pressure control valve
148G3595
DANFOSS REFRIGERATION
Pressure control valve
DC-100-A-0.5
Pressure control valve, KDC 100
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Connection size [mm]: 100, Connection type: Butt weld, Kv Fully open [m3/h]: 203, Max. Working Pressure [bar]: 40
Product details
| Gross weight | 18.86 Kilogram |
| Net weight | 18.2 Kilogram |
| Volume | 20.671 Liter |
| EAN | 5702428279673 |
| Type | KDC 100 |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pressure control valve |
| Gross weight | 18.86 Kilogram |
| Net weight | 18.2 Kilogram |
| Volume | 20.671 Liter |
| EAN | 5702428279673 |
| Type | KDC 100 |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pressure control valve |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection size [in] | 4 in |
| Connection size [mm] | 100 mm |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Connection type | Butt weld |
| Contains batteries | No |
| Cv Fully open [gal/min] | 235 gal/min |
| Differential pressure [bar] | 0.5 bar |
| Differential pressure [psi] | 7.5 psi |
| Direction | Angleway |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 |
| Inlet connection size [mm] | 100 mm |
| Kv Fully open [m3/h] | 203 m³/h |
| Max. Working Pressure [bar] | 40 bar |
| Max. Working Pressure [psig] | 580 psig |
| Packing format | Single pack |
| PED category | III |
| Product description | Multifunction compressor valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection size [in] | 4 in |
| Connection size [mm] | 100 mm |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Connection type | Butt weld |
| Contains batteries | No |
| Cv Fully open [gal/min] | 235 gal/min |
| Differential pressure [bar] | 0.5 bar |
| Differential pressure [psi] | 7.5 psi |
| Direction | Angleway |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 |
| Inlet connection size [mm] | 100 mm |
| Kv Fully open [m3/h] | 203 m³/h |
| Max. Working Pressure [bar] | 40 bar |
| Max. Working Pressure [psig] | 580 psig |
| Packing format | Single pack |
| PED category | III |
| Product description | Multifunction compressor valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 148G3595 148G3595 ES_148G3048.pdf | 2 Mbytes |
|
