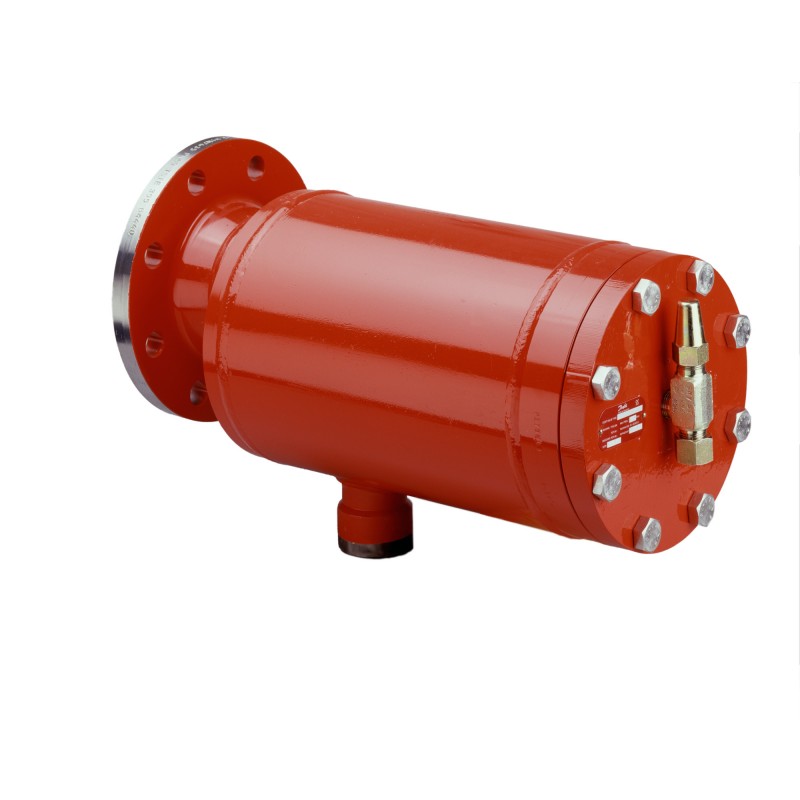

148G3098 DANFOSS REFRIGERATION Float valve
148G3098
DANFOSS REFRIGERATION
Float valve
HFI 050 A 100 FLOAT VALVE
Float valve, HFI 050
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection size [mm]: 100, Inlet connection type: Butt weld, Outlet connection size [mm]: 50, Outlet connection type: Butt weld, Max. Working Pressure [bar]: 25, Temperature range [°C]: -50 - 80, 1.6 L - 4.6 L, Net volume [l]: 6.4
Product details
| Gross weight | 4.749 Kilogram |
| Net weight | 1.491 Kilogram |
| Volume | 101.071 Liter |
| EAN | 5702428344012 |
| Type | HFI 050 |
| Product group | Liquid level regulating valves |
| Product Name Description | Float valve |
| Gross weight | 4.749 Kilogram |
| Net weight | 1.491 Kilogram |
| Volume | 101.071 Liter |
| EAN | 5702428344012 |
| Type | HFI 050 |
| Product group | Liquid level regulating valves |
| Product Name Description | Float valve |
| Approval | CE EAC LLC CDC TYSK |
| Body material | Steel |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Contains batteries | No |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 2 |
| Inlet connection size [in] | 4 in |
| Inlet connection size [mm] | 100 mm |
| Inlet connection type | Butt weld |
| Liquid volume range [gal US] [max] | 1.22 gal |
| Liquid volume range [gal US] [min] | 0.42 gal |
| Liquid volume range [l] [max] | 4.6 L |
| Liquid volume range [l] [min] | 1.6 L |
| Max. Working Pressure [bar] | 25 bar |
| Max. Working Pressure [psig] | 363 psig |
| Net volume [l] | 6.4 L |
| Netto volume [gal US] | 1.69 gal |
| Nozzle size [mm] | 50 mm |
| Outlet connection size [in] | 2 in |
| Outlet connection size [mm] | 50 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| PED category | III |
| Product accessories | Float exp. valve accessories |
| Product description | Float Valve |
| Quantity per packing format | 1 pc |
| Rated cap. conditions [IMP] | R717: Temp. 14 - 95 °F |
| Rated cap. conditions [SI] | R717: Temp. -10 - 35 °C |
| Rated capacity R717 [kW] | 800 kW |
| Rated capacity R717 [TR] | 227 TR |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A |
| Serviceable | Float exp. valve spare parts |
| Shell volume [gal US] | 2.17 gal |
| Shell volume [l] | 8.2 L |
| Side branch 1 conn. size [in] | 3/8 |
| Side branch 2 conn. size [in] | 1/2 |
| Side branch Int/Ext | External |
| Temperature range [°C] [max] | 80 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 176 °F |
| Temperature range [°F] [min] | -58 °F |
| Valve constant | 33.58 |
| Approval | CE EAC LLC CDC TYSK |
| Body material | Steel |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Contains batteries | No |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 2 |
| Inlet connection size [in] | 4 in |
| Inlet connection size [mm] | 100 mm |
| Inlet connection type | Butt weld |
| Liquid volume range [gal US] [max] | 1.22 gal |
| Liquid volume range [gal US] [min] | 0.42 gal |
| Liquid volume range [l] [max] | 4.6 L |
| Liquid volume range [l] [min] | 1.6 L |
| Max. Working Pressure [bar] | 25 bar |
| Max. Working Pressure [psig] | 363 psig |
| Net volume [l] | 6.4 L |
| Netto volume [gal US] | 1.69 gal |
| Nozzle size [mm] | 50 mm |
| Outlet connection size [in] | 2 in |
| Outlet connection size [mm] | 50 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| PED category | III |
| Product accessories | Float exp. valve accessories |
| Product description | Float Valve |
| Quantity per packing format | 1 pc |
| Rated cap. conditions [IMP] | R717: Temp. 14 - 95 °F |
| Rated cap. conditions [SI] | R717: Temp. -10 - 35 °C |
| Rated capacity R717 [kW] | 800 kW |
| Rated capacity R717 [TR] | 227 TR |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A |
| Serviceable | Float exp. valve spare parts |
| Shell volume [gal US] | 2.17 gal |
| Shell volume [l] | 8.2 L |
| Side branch 1 conn. size [in] | 3/8 |
| Side branch 2 conn. size [in] | 1/2 |
| Side branch Int/Ext | External |
| Temperature range [°C] [max] | 80 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 176 °F |
| Temperature range [°F] [min] | -58 °F |
| Valve constant | 33.58 |
