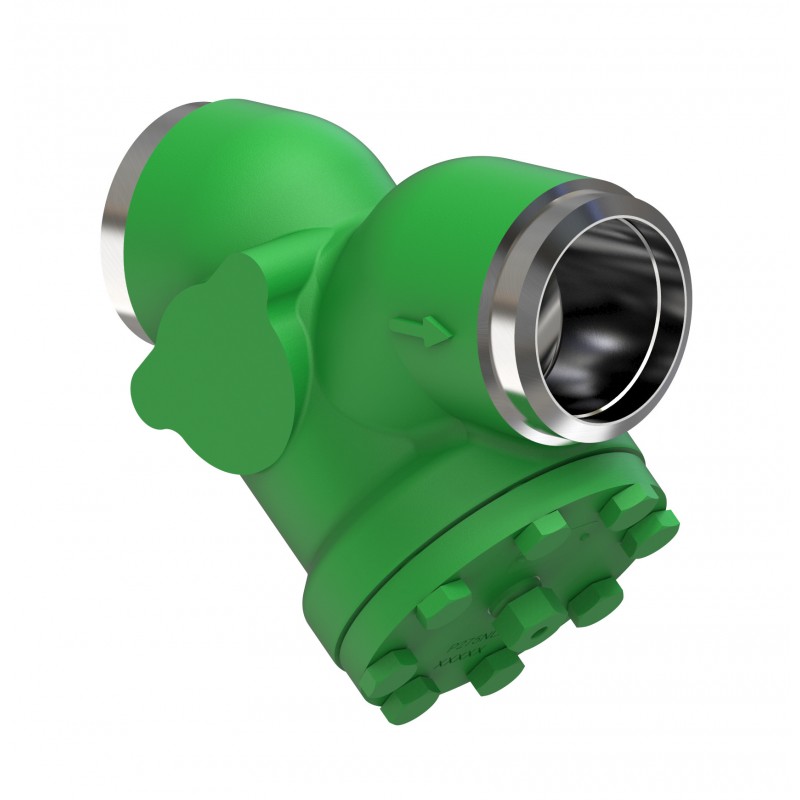

DANFOSS REFRIGERATION 148B6840 148B6840 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

148B6840 DANFOSS REFRIGERATION FIA-140B Filter Housing 80 A/D STR.

Reference: 148B6840

Manufacturer: DANFOSS REFRIGERATION

Description:

FIA-140B Filter Housing 80 A/D STR.
Strainers, FIA-140B 80

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Connection material: Steel, Inlet connection type: Butt weld, Max. Working Pressure [bar]: 140

Product details

Gross weight10.678 Kilogram
Net weight9.458 Kilogram
Volume17.708 Liter
EAN5702424590604
TypeFIA-140B 80
Product groupStrainers
Product Name DescriptionStrainer housing
Gross weight10.678 Kilogram
Net weight9.458 Kilogram
Volume17.708 Liter
EAN5702424590604
TypeFIA-140B 80
Product groupStrainers
Product Name DescriptionStrainer housing

ApprovalCE
EAC
UKCA
BrandSVL Flexline
CE evaluatedYes
China RoHS complianceYes
China RoHS exemption clauseNo
Colour PaintGreen
Connection materialSteel
Connection standardANSIB36.10 SCH80
EN10216-2
Contains batteriesNo
Cv value [gal/min] 100 plain352.23 gal/min
Cv value [gal/min] 100 pleated460.54 gal/min
Cv value [gal/min] 38 plain380.85 gal/min
Cv value [gal/min] 38 pleated497.96 gal/min
Cv value [gal/min] 72 plain363.68 gal/min
Cv value [gal/min] 72 pleated475.51 gal/min
DirectionStraightway
EquipmentCover
EU RoHS complianceYes
EU RoHS exemption clauseNo
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Inlet connection size [in]3 in
Inlet connection size [mm]80 mm
Inlet connection typeButt weld
Kv value [m3/h] µ150 plain80 m³/h
Kv value [m3/h] µ150 pleated104.6 m³/h
Kv value [m3/h] µ250 plain82.6 m³/h
Kv value [m3/h] µ250 pleated108 m³/h
Kv value [m3/h] µ500 plain86.5 m³/h
Kv value [m3/h] µ500 pleated113.1 m³/h
Max. Working Pressure [bar]140 bar
Max. Working Pressure [psig]2030 psig
Outlet connection size [in]3 in
Outlet connection size [mm]80 mm
Outlet connection typeButt weld
Packing formatSingle pack
PED categoryI
Product accessoriesSVL Flexline accessories
Product descriptionFilter housing
Quantity per packing format1 pc
REACH Candidate List substancesNo
RefrigerantsR744
ServiceableSVL Flexline spare parts
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]302 °F
Temperature range [°F] [min]-40 °F
Valve versionStandard version
ApprovalCE
EAC
UKCA
BrandSVL Flexline
CE evaluatedYes
China RoHS complianceYes
China RoHS exemption clauseNo
Colour PaintGreen
Connection materialSteel
Connection standardANSIB36.10 SCH80
EN10216-2
Contains batteriesNo
Cv value [gal/min] 100 plain352.23 gal/min
Cv value [gal/min] 100 pleated460.54 gal/min
Cv value [gal/min] 38 plain380.85 gal/min
Cv value [gal/min] 38 pleated497.96 gal/min
Cv value [gal/min] 72 plain363.68 gal/min
Cv value [gal/min] 72 pleated475.51 gal/min
DirectionStraightway
EquipmentCover
EU RoHS complianceYes
EU RoHS exemption clauseNo
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Inlet connection size [in]3 in
Inlet connection size [mm]80 mm
Inlet connection typeButt weld
Kv value [m3/h] µ150 plain80 m³/h
Kv value [m3/h] µ150 pleated104.6 m³/h
Kv value [m3/h] µ250 plain82.6 m³/h
Kv value [m3/h] µ250 pleated108 m³/h
Kv value [m3/h] µ500 plain86.5 m³/h
Kv value [m3/h] µ500 pleated113.1 m³/h
Max. Working Pressure [bar]140 bar
Max. Working Pressure [psig]2030 psig
Outlet connection size [in]3 in
Outlet connection size [mm]80 mm
Outlet connection typeButt weld
Packing formatSingle pack
PED categoryI
Product accessoriesSVL Flexline accessories
Product descriptionFilter housing
Quantity per packing format1 pc
REACH Candidate List substancesNo
RefrigerantsR744
ServiceableSVL Flexline spare parts
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]302 °F
Temperature range [°F] [min]-40 °F
Valve versionStandard version
