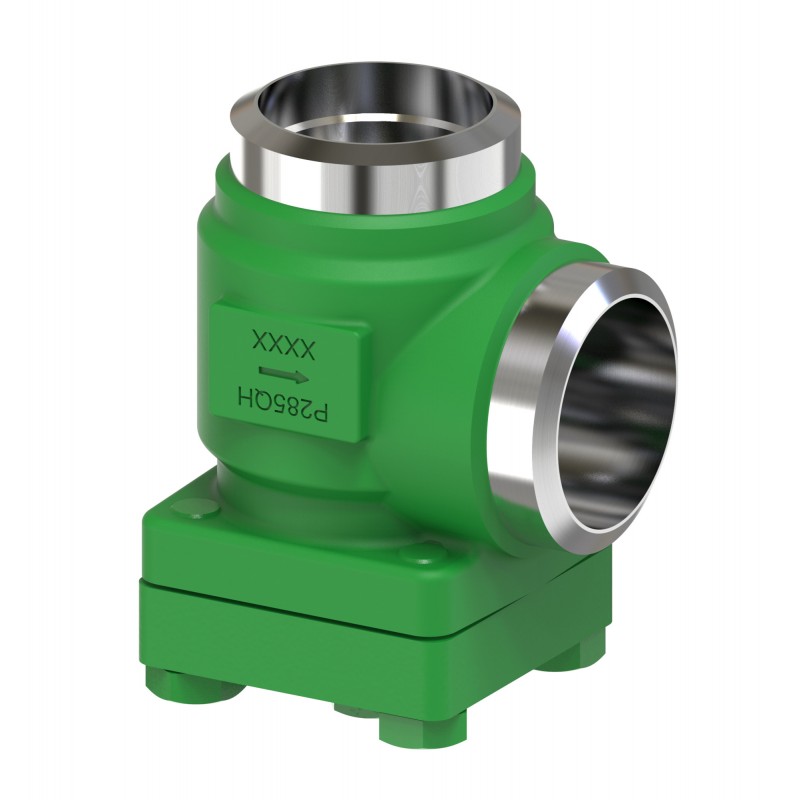

148B6837 DANFOSS REFRIGERATION FIA-140B Filter Housing 65 D ANG.
148B6837
DANFOSS REFRIGERATION
FIA-140B Filter Housing 65 D ANG.
Strainers, FIA-140B 65
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Connection material: Steel, Inlet connection type: Butt weld, Max. Working Pressure [bar]: 140
Product details
| Gross weight | 4.941 Kilogram |
| Net weight | 4.41 Kilogram |
| Volume | 7.259 Liter |
| EAN | 5702424590574 |
| Type | FIA-140B 65 |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Gross weight | 4.941 Kilogram |
| Net weight | 4.41 Kilogram |
| Volume | 7.259 Liter |
| EAN | 5702424590574 |
| Type | FIA-140B 65 |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Approval | CE EAC UKCA C UL US LISTED |
| Brand | SVL Flexline |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Colour Paint | Green |
| Connection material | Steel |
| Connection standard | EN 10216-2 |
| Contains batteries | No |
| Cv value [gal/min] 100 plain | 247 gal/min |
| Cv value [gal/min] 100 pleated | 305.12 gal/min |
| Cv value [gal/min] 38 plain | 265.93 gal/min |
| Cv value [gal/min] 38 pleated | 328.45 gal/min |
| Cv value [gal/min] 72 plain | 254.49 gal/min |
| Cv value [gal/min] 72 pleated | 314.36 gal/min |
| Direction | Angleway |
| Equipment | Cover |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection size [mm] | 65 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ150 plain | 56.1 m³/h |
| Kv value [m3/h] µ150 pleated | 69.3 m³/h |
| Kv value [m3/h] µ250 plain | 57.8 m³/h |
| Kv value [m3/h] µ250 pleated | 71.4 m³/h |
| Kv value [m3/h] µ500 plain | 60.4 m³/h |
| Kv value [m3/h] µ500 pleated | 74.6 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| Outlet connection size [mm] | 65 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| PED category | I |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -40 °F |
| Valve version | Standard version |
| Approval | CE EAC UKCA C UL US LISTED |
| Brand | SVL Flexline |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Colour Paint | Green |
| Connection material | Steel |
| Connection standard | EN 10216-2 |
| Contains batteries | No |
| Cv value [gal/min] 100 plain | 247 gal/min |
| Cv value [gal/min] 100 pleated | 305.12 gal/min |
| Cv value [gal/min] 38 plain | 265.93 gal/min |
| Cv value [gal/min] 38 pleated | 328.45 gal/min |
| Cv value [gal/min] 72 plain | 254.49 gal/min |
| Cv value [gal/min] 72 pleated | 314.36 gal/min |
| Direction | Angleway |
| Equipment | Cover |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection size [mm] | 65 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ150 plain | 56.1 m³/h |
| Kv value [m3/h] µ150 pleated | 69.3 m³/h |
| Kv value [m3/h] µ250 plain | 57.8 m³/h |
| Kv value [m3/h] µ250 pleated | 71.4 m³/h |
| Kv value [m3/h] µ500 plain | 60.4 m³/h |
| Kv value [m3/h] µ500 pleated | 74.6 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| Outlet connection size [mm] | 65 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| PED category | I |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -40 °F |
| Valve version | Standard version |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 148B6837 148B6837 ES_148B6833.pdf | 859 Kbytes |
|
