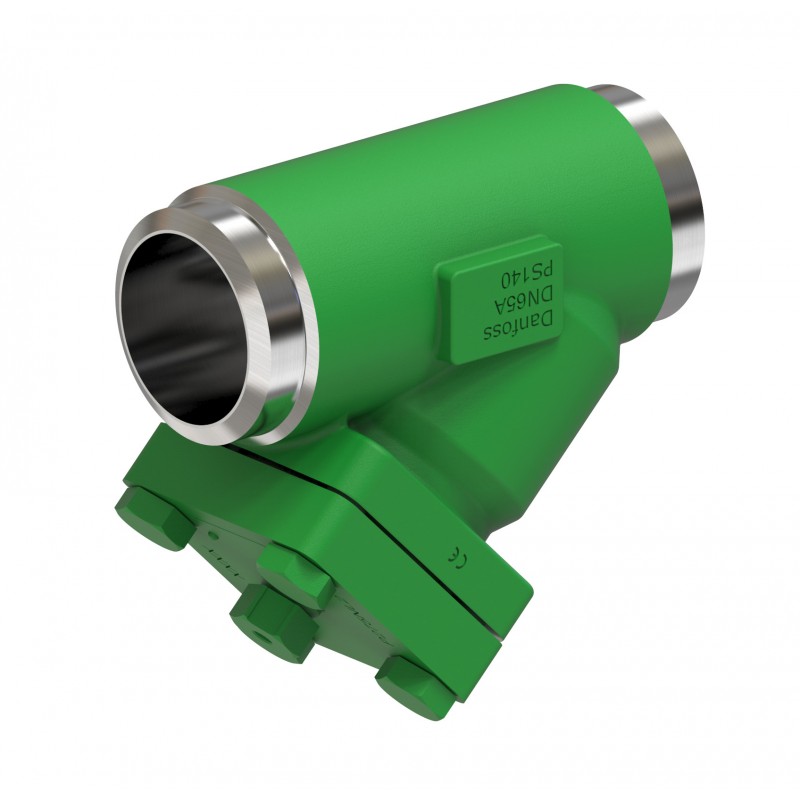

DANFOSS REFRIGERATION 148B6834 148B6834 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

148B6834 DANFOSS REFRIGERATION FIA-140B Filter Housing 50 A/D STR.

Reference: 148B6834

Manufacturer: DANFOSS REFRIGERATION

Description:

FIA-140B Filter Housing 50 A/D STR.
Strainers, FIA-140B 50

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Connection material: Steel, Inlet connection type: Butt weld, Max. Working Pressure [bar]: 140

Product details

Gross weight7.088 Kilogram
Net weight6.51 Kilogram
Volume7.259 Liter
EAN5702424590543
TypeFIA-140B 50
Product groupStrainers
Product Name DescriptionStrainer housing
Gross weight7.088 Kilogram
Net weight6.51 Kilogram
Volume7.259 Liter
EAN5702424590543
TypeFIA-140B 50
Product groupStrainers
Product Name DescriptionStrainer housing

BrandSVL Flexline
CE evaluatedYes
China RoHS complianceYes
China RoHS exemption clauseNo
Colour PaintGreen
Connection materialSteel
Connection standardANSIB36.10 SCH80
EN10216-2
Contains batteriesNo
Cv value [gal/min] 100 plain154.54 gal/min
Cv value [gal/min] 100 pleated202.09 gal/min
Cv value [gal/min] 38 plain169.07 gal/min
Cv value [gal/min] 38 pleated221.02 gal/min
Cv value [gal/min] 72 plain160.26 gal/min
Cv value [gal/min] 72 pleated209.58 gal/min
DirectionStraightway
EquipmentCover
EU RoHS complianceYes
EU RoHS exemption clauseNo
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Inlet connection size [in]2 in
Inlet connection size [mm]50 mm
Inlet connection typeButt weld
Kv value [m3/h] µ150 plain35.1 m³/h
Kv value [m3/h] µ150 pleated45.9 m³/h
Kv value [m3/h] µ250 plain36.4 m³/h
Kv value [m3/h] µ250 pleated47.6 m³/h
Kv value [m3/h] µ500 plain38.4 m³/h
Kv value [m3/h] µ500 pleated50.2 m³/h
Max. Working Pressure [bar]140 bar
Max. Working Pressure [psig]2030 psig
Outlet connection size [in]2 in
Outlet connection size [mm]50 mm
Outlet connection typeButt weld
Packing formatSingle pack
PED categoryI
Product accessoriesSVL Flexline accessories
Product descriptionFilter housing
Quantity per packing format1 pc
REACH Candidate List substancesNo
RefrigerantsR744
ServiceableSVL Flexline spare parts
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]302 °F
Temperature range [°F] [min]-40 °F
Valve versionStandard version
BrandSVL Flexline
CE evaluatedYes
China RoHS complianceYes
China RoHS exemption clauseNo
Colour PaintGreen
Connection materialSteel
Connection standardANSIB36.10 SCH80
EN10216-2
Contains batteriesNo
Cv value [gal/min] 100 plain154.54 gal/min
Cv value [gal/min] 100 pleated202.09 gal/min
Cv value [gal/min] 38 plain169.07 gal/min
Cv value [gal/min] 38 pleated221.02 gal/min
Cv value [gal/min] 72 plain160.26 gal/min
Cv value [gal/min] 72 pleated209.58 gal/min
DirectionStraightway
EquipmentCover
EU RoHS complianceYes
EU RoHS exemption clauseNo
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Inlet connection size [in]2 in
Inlet connection size [mm]50 mm
Inlet connection typeButt weld
Kv value [m3/h] µ150 plain35.1 m³/h
Kv value [m3/h] µ150 pleated45.9 m³/h
Kv value [m3/h] µ250 plain36.4 m³/h
Kv value [m3/h] µ250 pleated47.6 m³/h
Kv value [m3/h] µ500 plain38.4 m³/h
Kv value [m3/h] µ500 pleated50.2 m³/h
Max. Working Pressure [bar]140 bar
Max. Working Pressure [psig]2030 psig
Outlet connection size [in]2 in
Outlet connection size [mm]50 mm
Outlet connection typeButt weld
Packing formatSingle pack
PED categoryI
Product accessoriesSVL Flexline accessories
Product descriptionFilter housing
Quantity per packing format1 pc
REACH Candidate List substancesNo
RefrigerantsR744
ServiceableSVL Flexline spare parts
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]302 °F
Temperature range [°F] [min]-40 °F
Valve versionStandard version
