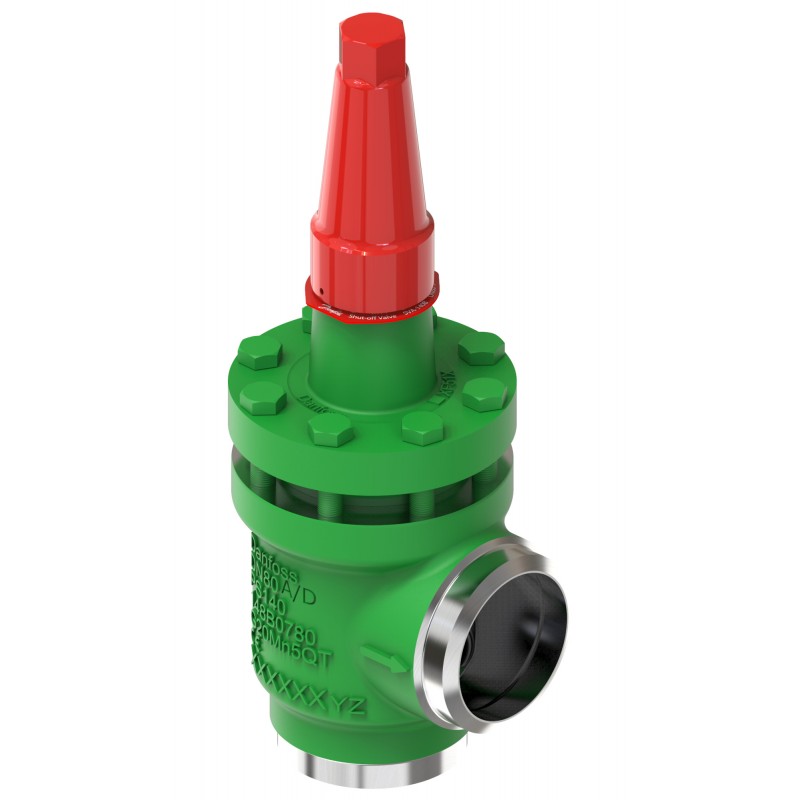

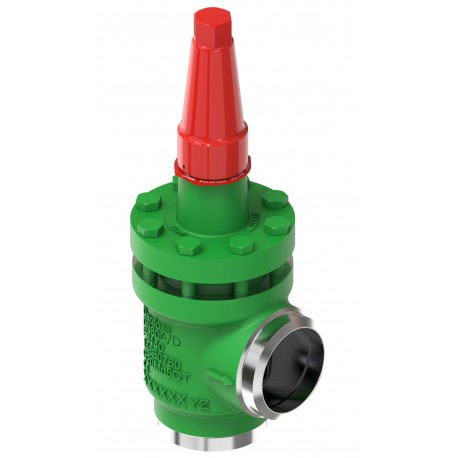

148B6823 DANFOSS REFRIGERATION SVA-140B Shut Off Valve 80 A/D ANG
148B6823
DANFOSS REFRIGERATION
SVA-140B Shut Off Valve 80 A/D ANG
Shut-off valve, SVA-140B 80, Max. Working Pressure [bar]: 140, Cap
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Butt weld, Outlet connection type: Butt weld, Equipment: Cap
Product details
| Gross weight | 16.114 Kilogram |
| Net weight | 13.4 Kilogram |
| Volume | 30.092 Liter |
| EAN | 5702424589820 |
| Type | SVA-140B 80 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off valve |
| Gross weight | 16.114 Kilogram |
| Net weight | 13.4 Kilogram |
| Volume | 30.092 Liter |
| EAN | 5702424589820 |
| Type | SVA-140B 80 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off valve |
| Body material | Steel |
| Brand | SVL Flexline |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Colour Paint | Green |
| Connection material | Steel |
| Connection standard | ANSIB36.10 SCH80 EN10216-2 |
| Contains batteries | No |
| Cv value [gal/min] | 201.144 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection size [in] | 3 in |
| Inlet connection size [mm] | 80 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 174 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| MOPD[bar/psi] | 110BAR/1595.4PSI |
| Neck | Standard |
| Outlet connection size [in] | 3 in |
| Outlet connection size [mm] | 80 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| PED category | I |
| Product accessories | SVL Flexline accessories |
| Product description | Shut-off valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -40 °F |
| Valve version | Standard version |
| Body material | Steel |
| Brand | SVL Flexline |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Colour Paint | Green |
| Connection material | Steel |
| Connection standard | ANSIB36.10 SCH80 EN10216-2 |
| Contains batteries | No |
| Cv value [gal/min] | 201.144 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection size [in] | 3 in |
| Inlet connection size [mm] | 80 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 174 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| MOPD[bar/psi] | 110BAR/1595.4PSI |
| Neck | Standard |
| Outlet connection size [in] | 3 in |
| Outlet connection size [mm] | 80 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| PED category | I |
| Product accessories | SVL Flexline accessories |
| Product description | Shut-off valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R744 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -40 °F |
| Valve version | Standard version |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 148B6823 148B6823 DE_148B6832.pdf | 1 Mbytes |
|
