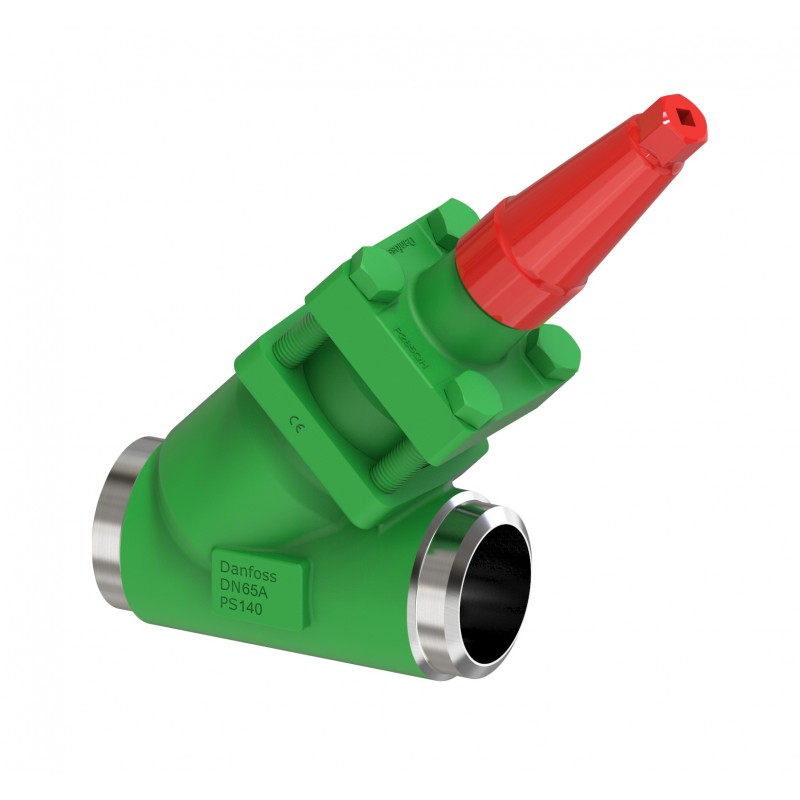

DANFOSS REFRIGERATION 148B6818 148B6818 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

148B6818 DANFOSS REFRIGERATION SVA-140B Shut Off Valve 50 A/D STR

Reference: 148B6818

Manufacturer: DANFOSS REFRIGERATION

Description:

SVA-140B Shut Off Valve 50 A/D STR
Shut-off valve, SVA-140B 50, Max. Working Pressure [bar]: 140, Cap

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 657,50 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Inlet connection type: Butt weld, Outlet connection type: Butt weld, Equipment: Cap

Product details

Gross weight10.698 Kilogram
Net weight9.25 Kilogram
Volume12.933 Liter
EAN5702424589721
TypeSVA-140B 50
Product groupShut-off and regulating valves
Product Name DescriptionShut-off valve
Gross weight10.698 Kilogram
Net weight9.25 Kilogram
Volume12.933 Liter
EAN5702424589721
TypeSVA-140B 50
Product groupShut-off and regulating valves
Product Name DescriptionShut-off valve

ApprovalCE
C UL US LISTED
Body materialSteel
BrandSVL Flexline
CE markYes
China RoHS complianceYes
China RoHS exemption clauseNo
Colour PaintGreen
Connection materialSteel
Connection standardANSIB36.10 SCH80
EN10216-2
Contains batteriesNo
Cv value [gal/min]91.324 gal/min
DirectionStraightway
EquipmentCap
EU RoHS complianceYes
EU RoHS exemption clauseNo
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Inlet connection size [in]2 in
Inlet connection size [mm]50 mm
Inlet connection typeButt weld
Kv value [m³/h]79 m³/h
Max. Working Pressure [bar]140 bar
Max. Working Pressure [psig]2030 psig
MOPD[bar/psi]110BAR/1595.4PSI
NeckStandard
Outlet connection size [in]2 in
Outlet connection size [mm]50 mm
Outlet connection typeButt weld
Packing formatSingle pack
PED categoryI
Product accessoriesSVL Flexline accessories
Product descriptionShut-off valve
Quantity per packing format1 pc
REACH Candidate List substancesNo
RefrigerantsR744
ServiceableSVL Flexline spare parts
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]302 °F
Temperature range [°F] [min]-40 °F
Valve versionStandard version
ApprovalCE
C UL US LISTED
Body materialSteel
BrandSVL Flexline
CE markYes
China RoHS complianceYes
China RoHS exemption clauseNo
Colour PaintGreen
Connection materialSteel
Connection standardANSIB36.10 SCH80
EN10216-2
Contains batteriesNo
Cv value [gal/min]91.324 gal/min
DirectionStraightway
EquipmentCap
EU RoHS complianceYes
EU RoHS exemption clauseNo
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Inlet connection size [in]2 in
Inlet connection size [mm]50 mm
Inlet connection typeButt weld
Kv value [m³/h]79 m³/h
Max. Working Pressure [bar]140 bar
Max. Working Pressure [psig]2030 psig
MOPD[bar/psi]110BAR/1595.4PSI
NeckStandard
Outlet connection size [in]2 in
Outlet connection size [mm]50 mm
Outlet connection typeButt weld
Packing formatSingle pack
PED categoryI
Product accessoriesSVL Flexline accessories
Product descriptionShut-off valve
Quantity per packing format1 pc
REACH Candidate List substancesNo
RefrigerantsR744
ServiceableSVL Flexline spare parts
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]302 °F
Temperature range [°F] [min]-40 °F
Valve versionStandard version
