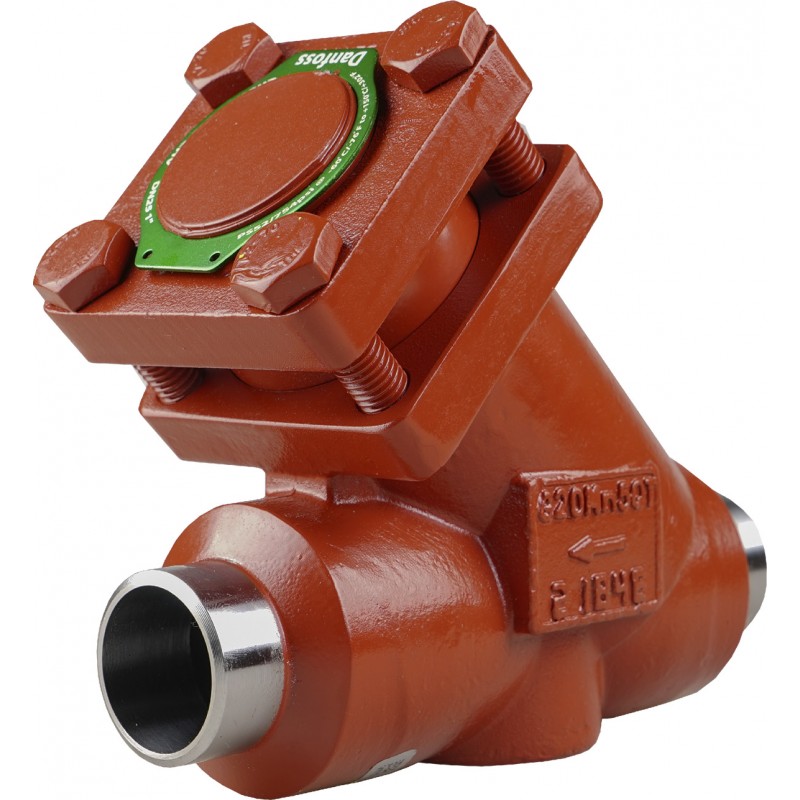

148B6598 DANFOSS REFRIGERATION CHV-X 100 A STR Check Valve PS52
148B6598
DANFOSS REFRIGERATION
CHV-X 100 A STR Check Valve PS52
Check valve, CHV-X 100, SVL Flexline, Direction: Straightway, 100.0 mm, Connection standard: ASME B 36.10M SCHEDULE 40, Max. Working Pressure [bar]: 52.0
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Connection material: Steel, Inlet connection type: Butt weld
Product details
| Gross weight | 21.76 Kg |
| Net weight | 14.65 Kg |
| Volume | 26.676 Liter |
| EAN | 5702428989336 |
| Gross weight | 21.76 Kg |
| Net weight | 14.65 Kg |
| Volume | 26.676 Liter |
| EAN | 5702428989336 |
| Approval | CE UKCA |
| Brand | SVL Flexline |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection size [in] | 4 in |
| Connection size [mm] | 100 mm |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Connection type | Butt weld |
| Cv value [gal/min] | 227.36 gal/min |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 2 |
| In scope of WEEE and contain batteries | No |
| Inlet connection size [mm] | 100 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 157 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| MinODP [bar] | 0.04 bar |
| MinODP [psi] | 0.58 psi |
| Packing format | Single pack |
| Parts Program name | CHV-X |
| PED category | II |
| Product accessories | SVL Flexline accessories |
| Product description | Check Valve |
| Product group | Check valves |
| Product Name Description | Check valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1234yf R1234ze(E) R125 R152a R170 R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R452C R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Type | CHV-X 100 |
| Approval | CE UKCA |
| Brand | SVL Flexline |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection size [in] | 4 in |
| Connection size [mm] | 100 mm |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Connection type | Butt weld |
| Cv value [gal/min] | 227.36 gal/min |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 2 |
| In scope of WEEE and contain batteries | No |
| Inlet connection size [mm] | 100 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 157 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| MinODP [bar] | 0.04 bar |
| MinODP [psi] | 0.58 psi |
| Packing format | Single pack |
| Parts Program name | CHV-X |
| PED category | II |
| Product accessories | SVL Flexline accessories |
| Product description | Check Valve |
| Product group | Check valves |
| Product Name Description | Check valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1234yf R1234ze(E) R125 R152a R170 R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R452C R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Type | CHV-X 100 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 148B6598 148B6598 EN_148B5236.pdf | 3 Mbytes |
 |
