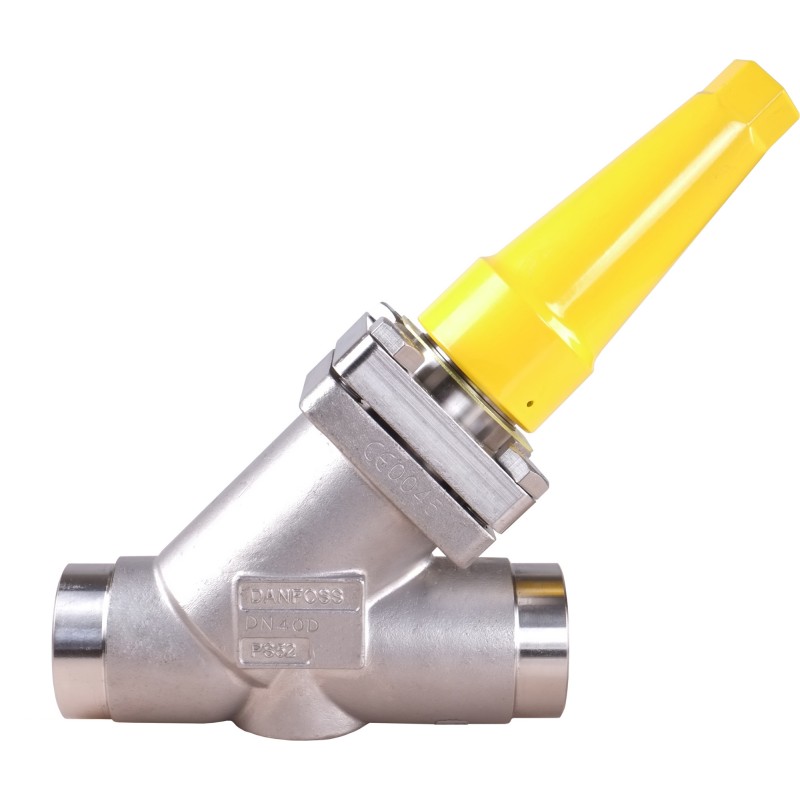

148B5675 DANFOSS REFRIGERATION Hand operated regulating valve

Name: 148B5675 DANFOSS REFRIGERATION Hand operated regulating valve
Brand: DANFOSS REFRIGERATION
SKU: DAO148B5675
Price: 692.54 USD
Availability: OutOfStock

Reference: 148B5675

Manufacturer: DANFOSS REFRIGERATION

Description:

Hand operated regulating valve

REG-SA SS 40 D STR Valve Cap PS52

Hand operated regulating valve, REG-SA SS 40, Stainless steel

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 618,66 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Outlet connection size [mm]: 40, Inlet connection size [mm]: 40, Inlet connection type: Butt weld, Outlet connection type: Butt weld, Kv value [m³/h]: 7, Max. Working Pressure [bar]: 52

Product details

Gross weight	4.404 Kilogram
Net weight	3.246 Kilogram
Volume	7.524 Liter
EAN	5702428843003

Type	REG-SA SS 40
Product group	Shut-off and regulating valves
Product Name Description	Hand operated regulating valve

Gross weight	4.404 Kilogram
Net weight	3.246 Kilogram
Volume	7.524 Liter
EAN	5702428843003
Type	REG-SA SS 40
Product group	Shut-off and regulating valves
Product Name Description	Hand operated regulating valve

Approval	EAC LLC CDC TYSK CE
Body material	Stainless steel
Brand	SVL Flexline
China RoHS compliance	Yes
China RoHS exemption clause	No
Colour Paint	Reddish brown
Connection material	Stainless steel
Connection standard	EN 10220
Contains batteries	No
Cv value [gal/min]	8.12 gal/min
Direction	Straightway
Equipment	Cap
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Flow area [in2]	0.275 in²
Flow area [mm2]	178 mm²
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1 2
Inlet connection size [in]	1 1/2 in
Inlet connection size [mm]	40 mm
Inlet connection type	Butt weld

Kv value [m³/h]	7 m³/h
Max. Working Pressure [bar]	52 bar
Max. Working Pressure [psig]	754 psig
Neck	Standard
Outlet connection size [in]	1 1/2 in
Outlet connection size [mm]	40 mm
Outlet connection type	Butt weld
Packing format	Single pack
Parts Program name	REG-SA / REG-SB
PED category	II
Product accessories	SVL Flexline accessories
Product description	Hand Regulating Valve
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A
Serviceable	SVL Flexline spare parts
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-76 °F
Valve version	Standard version

Approval	EAC LLC CDC TYSK CE
Body material	Stainless steel
Brand	SVL Flexline
China RoHS compliance	Yes
China RoHS exemption clause	No
Colour Paint	Reddish brown
Connection material	Stainless steel
Connection standard	EN 10220
Contains batteries	No
Cv value [gal/min]	8.12 gal/min
Direction	Straightway
Equipment	Cap
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Flow area [in2]	0.275 in²
Flow area [mm2]	178 mm²
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1 2
Inlet connection size [in]	1 1/2 in
Inlet connection size [mm]	40 mm
Inlet connection type	Butt weld
Kv value [m³/h]	7 m³/h
Max. Working Pressure [bar]	52 bar
Max. Working Pressure [psig]	754 psig
Neck	Standard
Outlet connection size [in]	1 1/2 in
Outlet connection size [mm]	40 mm
Outlet connection type	Butt weld
Packing format	Single pack
Parts Program name	REG-SA / REG-SB
PED category	II
Product accessories	SVL Flexline accessories
Product description	Hand Regulating Valve
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A
Serviceable	SVL Flexline spare parts
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-76 °F
Valve version	Standard version

DATASHEET - PDF

Title

Size

Type

148B5675 148B5675 EN_148B5388.pdf

1 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
