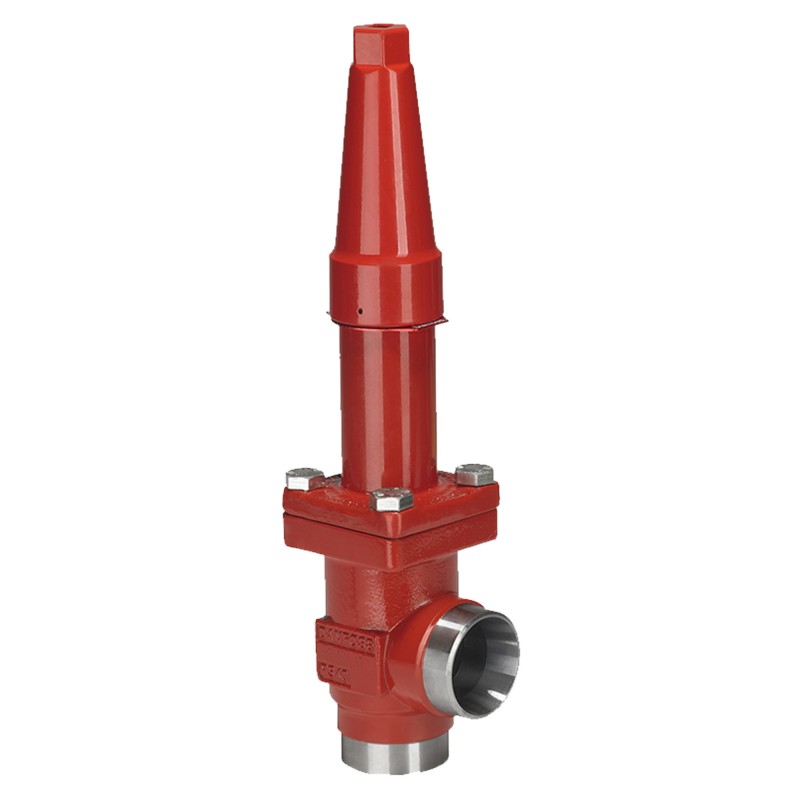

148B5461 DANFOSS REFRIGERATION Shut-off valve, SVA-L 25
148B5461
DANFOSS REFRIGERATION
Shut-off valve, SVA-L 25
SVA-L 25 A ANG STOP VALVE CAP PS52
Shut-off valve, SVA-L 25, Long, Max. Working Pressure [psig]: 754
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Butt weld, Outlet connection type: Butt weld, Equipment: Cap
Product details
| Gross weight | 4.472 Kilogram |
| Net weight | 3.7 Kilogram |
| Volume | 8.931 Liter |
| EAN | 5702428469302 |
| Type | SVA-L 25 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off valve |
| Gross weight | 4.472 Kilogram |
| Net weight | 3.7 Kilogram |
| Volume | 8.931 Liter |
| EAN | 5702428469302 |
| Type | SVA-L 25 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off valve |
| Approval | EAC LLC CDC TYSK |
| Body material | Steel |
| Brand | SVL Flexline |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Contains batteries | No |
| Cv value [gal/min] | 28.77 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Inlet connection size [in] | 1 in |
| Inlet connection size [mm] | 25 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 24.8 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Neck | Long |
| Outlet connection size [in] | 1 in |
| Outlet connection size [mm] | 25 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | SVA-S / SVA-L |
| PED category | Art. 3, par. 3 |
| Product accessories | SVL Flexline accessories |
| Product description | Stop valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113 R114 R1150 R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R245fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R413A R417A R421A R422A R422B R422D R427A R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R502 R503 R507A R508B R512A R513A R513B R515A R515B R516A R600 R600a R717 R744 RE170 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Valve version | Standard version |
| Approval | EAC LLC CDC TYSK |
| Body material | Steel |
| Brand | SVL Flexline |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Contains batteries | No |
| Cv value [gal/min] | 28.77 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Inlet connection size [in] | 1 in |
| Inlet connection size [mm] | 25 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 24.8 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Neck | Long |
| Outlet connection size [in] | 1 in |
| Outlet connection size [mm] | 25 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | SVA-S / SVA-L |
| PED category | Art. 3, par. 3 |
| Product accessories | SVL Flexline accessories |
| Product description | Stop valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113 R114 R1150 R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R245fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R413A R417A R421A R422A R422B R422D R427A R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R502 R503 R507A R508B R512A R513A R513B R515A R515B R516A R600 R600a R717 R744 RE170 |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Valve version | Standard version |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 148B5461 148B5461 DE_148B5012.pdf | 4 Mbytes |
|
