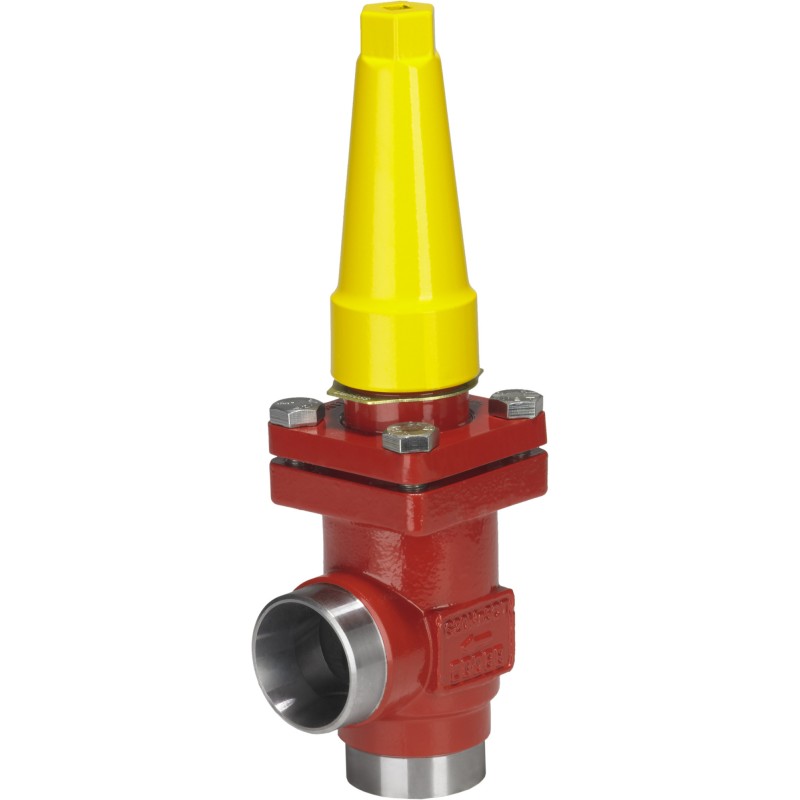

148B5207 DANFOSS REFRIGERATION Hand operated regulating valve, REG-SB 15
148B5207
DANFOSS REFRIGERATION
Hand operated regulating valve, REG-SB 15
REG-SB 15 FPT ANG VALVE CAP PS52
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Type: Spare part
| Gross weight | 1.93 Kg |
| Net weight | 1.72 Kg |
| EAN | 5702428473729 |
| Body material | Steel |
| Brand | SVL Flexline |
| Category | Art. 3, par. 3 |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ANSI/ASME B1.20.1 |
| Cv value [gal/min] | 5.8 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| Flow area [in2] | 0.178 in2 |
| Flow area [mm2] | 115 mm2 |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Inlet connection size [in] | 1/2 in |
| Inlet connection size [mm] | 15 mm |
| Inlet connection type | NPT |
| Kv value [m³/h] | 5 m3/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Neck | Short |
| Outlet connection size [in] | 1/2 in |
| Outlet connection size [mm] | 15 mm |
| Outlet connection type | NPT |
| Packing format | Single pack |
| Parts Program name | REG-SA / REG-SB |
| Product accessories | SVL Flexline accessories |
| Product description | Hand Regulating Valve |
| Product family name | REG angle |
| Product Group | Shut-off and regulating valves |
| Product name | Hand operated regulating valve |
| Product type | REG-SB 15 |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R600 R600a R717 R744 |
| Serviceable | SVL Flexline spare parts |
| System line application | Common liquid line Gas bypass line Hot gas defrost drain line Hot gas defrost line Liquid feed line Liquid line Liquid line LT Liquid line MT Main hot gas defrost line Suction line LT Suction line MT |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Valve version | Standard version |
