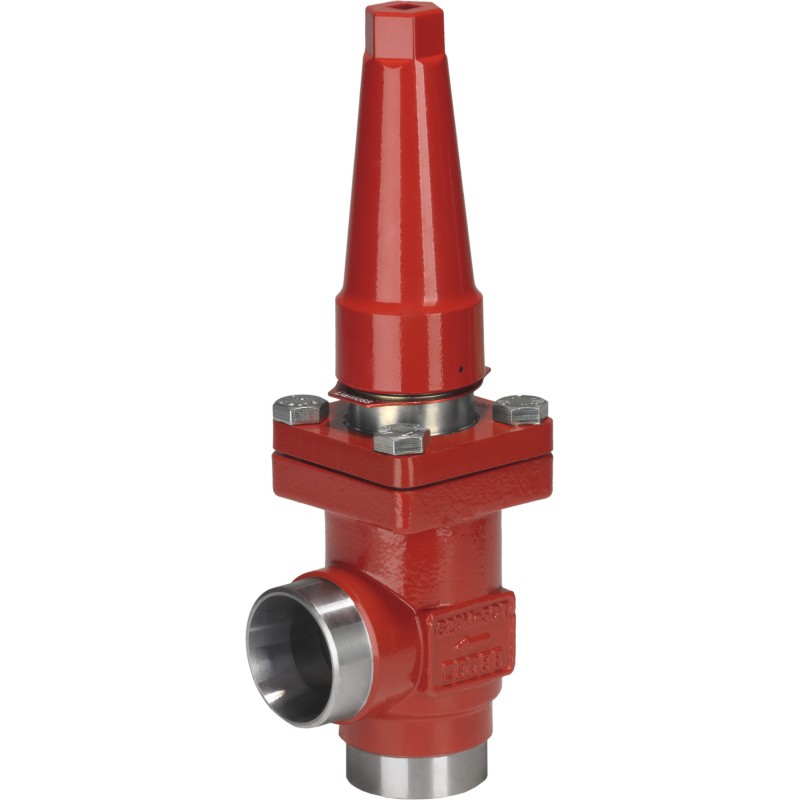

148B3819 DANFOSS REFRIGERATION Shut-off valve
148B3819
DANFOSS REFRIGERATION
Shut-off valve
Shut-off valve, SVA-ST 10-15, Max. Working Pressure [psig]: 580
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Inlet connection type: G, Outlet connection type: G, Equipment: Cap
Product details
| Gross weight | 1.638 Kg |
| Net weight | 1.506 Kg |
| Volume | 1.822 Liter |
| EAN | 5702428178709 |
| Gross weight | 1.638 Kg |
| Net weight | 1.506 Kg |
| Volume | 1.822 Liter |
| EAN | 5702428178709 |
| Approval | LLC CDC EURO-TYSK |
| Colour Paint | Reddish brown |
| Comments | FOR NIPPEL CONNECTION DN 10-15 |
| Connection standard | ISO 228-1 |
| Cv value [gal/min] | 2.9 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| EU RoHS compliance | No - out of scope |
| Fluid Group | 1 2 |
| In scope of WEEE and contain batteries | No |
| Inlet connection size [in] | 7/8 A |
| Inlet connection type | G |
| Inlet Internal/External | External |
| Kv value [m³/h] | 2.5 m³/h |
| Max. Working Pressure [bar] | 40 bar |
| Max. Working Pressure [psig] | 580 psig |
| Outlet connection size [in] | 7/8 A |
| Outlet connection type | G |
| Outlet Internal/External | External |
| Packing format | Single pack |
| PED category | Art. 4, par. 3 |
| Product description | Stop Valve |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R113 R114 R125 R134a R152a R22 R23 R236fa R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R452B R454B R454C R455A R502 R503 R513A R413A R454A R227ea R507A |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
| Type | SVA-ST 10-15 |
| Valve version | Standard version |
| Approval | LLC CDC EURO-TYSK |
| Colour Paint | Reddish brown |
| Comments | FOR NIPPEL CONNECTION DN 10-15 |
| Connection standard | ISO 228-1 |
| Cv value [gal/min] | 2.9 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| EU RoHS compliance | No - out of scope |
| Fluid Group | 1 2 |
| In scope of WEEE and contain batteries | No |
| Inlet connection size [in] | 7/8 A |
| Inlet connection type | G |
| Inlet Internal/External | External |
| Kv value [m³/h] | 2.5 m³/h |
| Max. Working Pressure [bar] | 40 bar |
| Max. Working Pressure [psig] | 580 psig |
| Outlet connection size [in] | 7/8 A |
| Outlet connection type | G |
| Outlet Internal/External | External |
| Packing format | Single pack |
| PED category | Art. 4, par. 3 |
| Product description | Stop Valve |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R113 R114 R125 R134a R152a R22 R23 R236fa R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R452B R454B R454C R455A R502 R503 R513A R413A R454A R227ea R507A |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
| Type | SVA-ST 10-15 |
| Valve version | Standard version |
