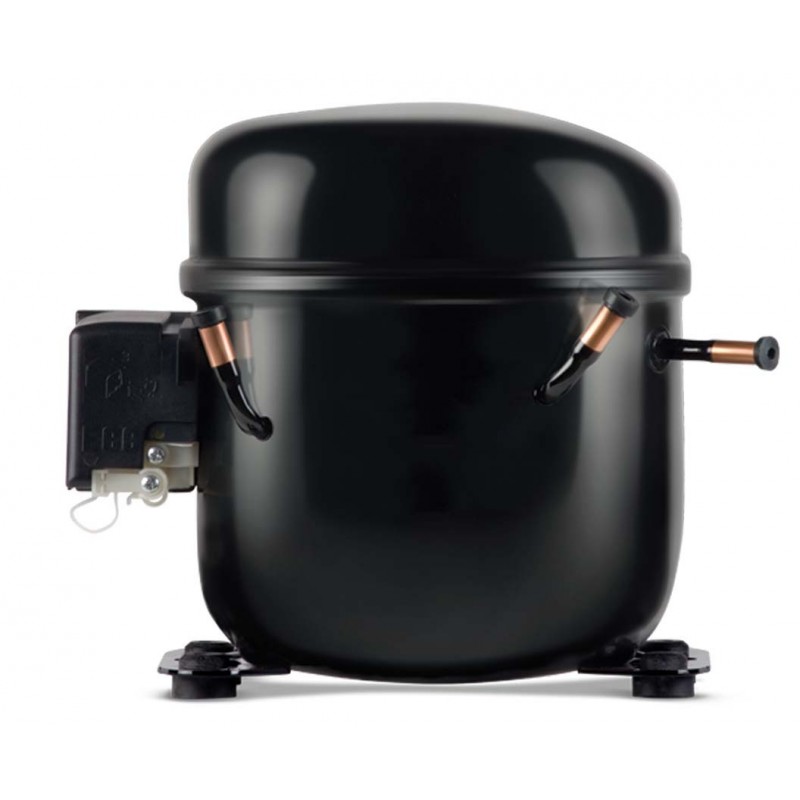

123B6014 DANFOSS REFRIGERATION DPT16LA 220-240V 50Hz ~1 Single Pack
123B6014
DANFOSS REFRIGERATION
DPT16LA; 220-240V 50Hz ~1; Single Pack
Reciprocating compressor, DPT16LA
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R404A; R452A; R454C; R455A, Segment usage: Refrigeration LT, Compressor power supply [V]: 220/1/50
Product details
| Gross weight | 13.1 Kilogram |
| Net weight | 12.8 Kilogram |
| Volume | 13.075 Liter |
| EAN | 5702424672133 |
| Type | DPT16 |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor P |
| Gross weight | 13.1 Kilogram |
| Net weight | 12.8 Kilogram |
| Volume | 13.075 Liter |
| EAN | 5702424672133 |
| Type | DPT16 |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor P |
| Applications | LBP |
| Approval | CCC VDE |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 8.7 Ohm |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 220/1/50 |
| Configuration code | Single |
| Contains batteries | No |
| Cut in current HST 50Hz [A] | 19 A |
| Description | DPT16LA |
| Discharge connection height [mm] | 121 mm |
| Economizer | No |
| Family | P |
| Frequency [Hz] | 50 |
| Height from baseplate [mm] | 211 mm |
| High value of nominal voltage at 50Hz [V] | 240 V |
| High value of voltage range at 50Hz [V] | 255 V |
| In scope of WEEE | No |
| Low value of nominal voltage at 50Hz [V] | 220 V |
| Low value of voltage range at 50Hz [V] | 187 V |
| LRA HST 50Hz [A] | 19 A |
| Main winding resistance for single-phase compressors [Ohm] | 5.3 Ohm |
| MCC | 4.00 A |
| Model number | DPT16LA |
| Motor type | CSR |
| No. of phases (compressor) | 1 |
| Oil quantity [cm3] | 450 cm³ |
| Oil type | POE |
| Packaging type | Multiple of 20 pc’s, except replacement for Optyma CU (for Europe) = 1 pc |
| Packing format | Single pack |
| Packing quantity | 1 |
| Refrigerant charge [kg] [Max] | 1.15 kg |
| Refrigerants | R404A R452A R454C R455A |
| Rotational speed at 50Hz [rpm] | 3000 rpm |
| Run capacitor capacitance | 16 µF |
| Segment usage | Refrigeration LT |
| Speed Platform | Fixed-speed |
| Start capacitor capacitance | 72-88 µF |
| Suction connection height [mm] | 125 mm |
| Swept volume [cm3] | 16.15 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 217 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 115 °C |
| Applications | LBP |
| Approval | CCC VDE |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 8.7 Ohm |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 220/1/50 |
| Configuration code | Single |
| Contains batteries | No |
| Cut in current HST 50Hz [A] | 19 A |
| Description | DPT16LA |
| Discharge connection height [mm] | 121 mm |
| Economizer | No |
| Family | P |
| Frequency [Hz] | 50 |
| Height from baseplate [mm] | 211 mm |
| High value of nominal voltage at 50Hz [V] | 240 V |
| High value of voltage range at 50Hz [V] | 255 V |
| In scope of WEEE | No |
| Low value of nominal voltage at 50Hz [V] | 220 V |
| Low value of voltage range at 50Hz [V] | 187 V |
| LRA HST 50Hz [A] | 19 A |
| Main winding resistance for single-phase compressors [Ohm] | 5.3 Ohm |
| MCC | 4.00 A |
| Model number | DPT16LA |
| Motor type | CSR |
| No. of phases (compressor) | 1 |
| Oil quantity [cm3] | 450 cm³ |
| Oil type | POE |
| Packaging type | Multiple of 20 pc’s, except replacement for Optyma CU (for Europe) = 1 pc |
| Packing format | Single pack |
| Packing quantity | 1 |
| Refrigerant charge [kg] [Max] | 1.15 kg |
| Refrigerants | R404A R452A R454C R455A |
| Rotational speed at 50Hz [rpm] | 3000 rpm |
| Run capacitor capacitance | 16 µF |
| Segment usage | Refrigeration LT |
| Speed Platform | Fixed-speed |
| Start capacitor capacitance | 72-88 µF |
| Suction connection height [mm] | 125 mm |
| Swept volume [cm3] | 16.15 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 217 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 115 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
