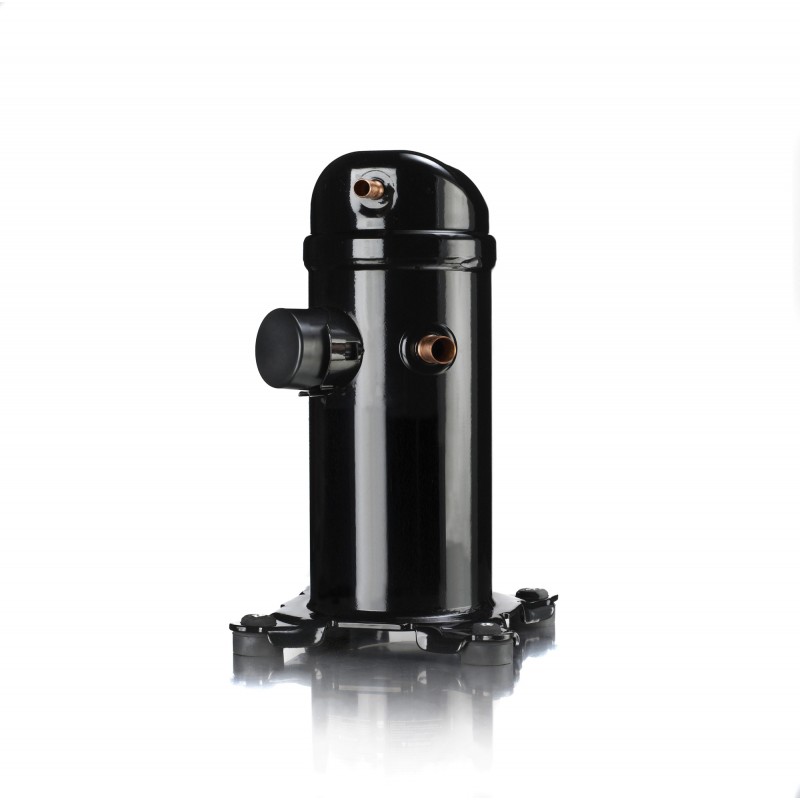

121U9008 DANFOSS REFRIGERATION Scroll compressor, HHP019T5LP6
121U9008
DANFOSS REFRIGERATION
Scroll compressor, HHP019T5LP6
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R407C, Segment usage: Heating, Compressor power supply [V]: 220-240/1/50, Packing format: Single pack/pallet
Product details
| Gross weight | 32.165 Kilogram |
| Net weight | 30.95 Kilogram |
| Volume | 40.902 Liter |
| EAN | 5702428378680 |
| Gross weight | 32.165 Kilogram |
| Net weight | 30.95 Kilogram |
| Volume | 40.902 Liter |
| EAN | 5702428378680 |
| Approval | CE UL UKCA |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.6 |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 60 µF |
| Capacity of capacitor B | 145-175 µF |
| CE evaluated | Yes |
| China RoHS compliance | Yes exceed limitations |
| Colour | Black |
| Compressor power supply [V] | 220-240/1/50 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | HHP019T5 |
| Diameter [mm] | 165 mm |
| Discharge connection height [mm] | 379 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0XC6301B-2 |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 7(c)-I 6(a) 6(a)-I 6(c) 7(a) 8(b) |
| Family | HHP |
| Fitting standard | ODF |
| Frequency [Hz] | 50 |
| Gauge port HP | None |
| Gauge port LP | None |
| Gaz equalization | None |
| Glass mounting | None |
| High value of nominal voltage at 50Hz [V] | 240 V |
| High value of voltage range at 50Hz [V] | 264 V |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP22 |
| Length [mm] | 239 mm |
| Low value of nominal voltage at 50Hz [V] | 220 V |
| Low value of voltage range at 50Hz [V] | 198 V |
| LRA | 69 A |
| Main winding resistance for single-phase compressors [Ohm] | 1.02 |
| MCC | 24 A |
| Model number | HHP019T5LP6 |
| Motor protection | Internal overload protector |
| Network power supply [V/Ph/Hz] | 220-240/1/50 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.06 L |
| Oil equalization | None |
| Oil reference | 160HV |
| Oil type | PVE |
| Packing format | Single pack/pallet |
| Packing quantity | 6 |
| Phase | 1 |
| Power connections | Spade |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor HHP |
| Refrigerant charge [kg] [Max] | 3.63 kg |
| Refrigerants | R407C |
| RLA | 17.1 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Segment usage | Heating |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 250 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 41 cm³ |
| Technology | Scroll |
| Total height [mm] | 413 mm |
| Type | HHP019 |
| UK RoHS compliance | Yes with exemptions |
| UK RoHS exemption clause | 19 21 24 12 13 18 |
| UL evaluated | Yes |
| Viscosity [cP] | 32 cP |
| Voltage of capacitor A [V] | 370 V |
| Width [mm] | 239 mm |
| Approval | CE UL UKCA |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.6 |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 60 µF |
| Capacity of capacitor B | 145-175 µF |
| CE evaluated | Yes |
| China RoHS compliance | Yes exceed limitations |
| Colour | Black |
| Compressor power supply [V] | 220-240/1/50 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | HHP019T5 |
| Diameter [mm] | 165 mm |
| Discharge connection height [mm] | 379 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0XC6301B-2 |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 7(c)-I 6(a) 6(a)-I 6(c) 7(a) 8(b) |
| Family | HHP |
| Fitting standard | ODF |
| Frequency [Hz] | 50 |
| Gauge port HP | None |
| Gauge port LP | None |
| Gaz equalization | None |
| Glass mounting | None |
| High value of nominal voltage at 50Hz [V] | 240 V |
| High value of voltage range at 50Hz [V] | 264 V |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP22 |
| Length [mm] | 239 mm |
| Low value of nominal voltage at 50Hz [V] | 220 V |
| Low value of voltage range at 50Hz [V] | 198 V |
| LRA | 69 A |
| Main winding resistance for single-phase compressors [Ohm] | 1.02 |
| MCC | 24 A |
| Model number | HHP019T5LP6 |
| Motor protection | Internal overload protector |
| Network power supply [V/Ph/Hz] | 220-240/1/50 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.06 L |
| Oil equalization | None |
| Oil reference | 160HV |
| Oil type | PVE |
| Packing format | Single pack/pallet |
| Packing quantity | 6 |
| Phase | 1 |
| Power connections | Spade |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor HHP |
| Refrigerant charge [kg] [Max] | 3.63 kg |
| Refrigerants | R407C |
| RLA | 17.1 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Segment usage | Heating |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 250 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 41 cm³ |
| Technology | Scroll |
| Total height [mm] | 413 mm |
| Type | HHP019 |
| UK RoHS compliance | Yes with exemptions |
| UK RoHS exemption clause | 19 21 24 12 13 18 |
| UL evaluated | Yes |
| Viscosity [cP] | 32 cP |
| Voltage of capacitor A [V] | 370 V |
| Width [mm] | 239 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 121U9008 121U9008 ES_121U9008.pdf | 258 Kbytes |
|
