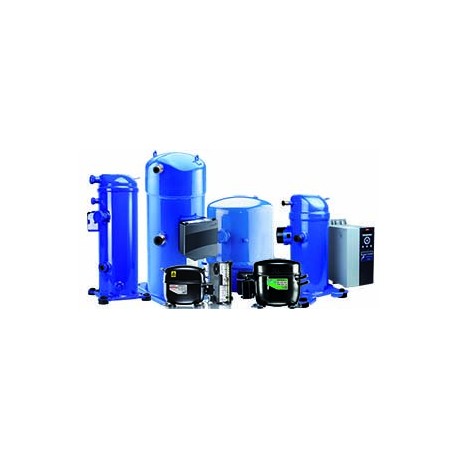

121U8068 DANFOSS REFRIGERATION Scroll compressor, MLZ038T1LC9
121U8068
DANFOSS REFRIGERATION
Scroll compressor, MLZ038T1LC9
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲| Gross weight | 45.1 Kg |
| Net weight | 40.37 Kg |
| EAN | 5702428227971 |
| Approval standard | CE UL |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.76 Ohm |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 55 µF |
| Capacity of capacitor B | 88-108 µF |
| Colour | Black |
| Compressor power supply [V/Ph/Hz] | 208-230/1/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | MLZ038T1 |
| Diameter [mm] | 184 mm |
| Discharge connection height [mm] | 422 mm |
| Discharge connection pipe size [in] | 0.5 in |
| Discharge connection size [in] | 0.5 in |
| Drawing number | 0XR6025B-2 |
| Economizer | No |
| Fitting standard | ODF |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | None |
| Glass mounting | Threaded |
| Glass torque [Nm] | 53 N-m |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 230 V |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 253 V |
| IP protection class | IP22 |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 208 V |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 187 V |
| LRA | 160 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.28 Ohm |
| MCC | 45 A |
| Model number | MLZ038T1LC9 |
| Motor protection | Internal overload protector |
| Nominal cooling capacity at 60Hz | 10.7 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.57 L |
| Oil drain | 1/4'' flare |
| Oil equalization | None |
| Oil reference | 160HV |
| Oil type | PVE |
| Packing format | Single pack/pallet |
| Packing quantity | 6 |
| Phase | 1 |
| Power connections | Screw connectors 10-32 UNF x 9.5 |
| Product type | MLZ |
| Refrigerant | R134a R22 R404A R407C R507 |
| Refrigerant charge [kg] [Max] | 5.44 kg |
| Relief valve | 32 bar |
| RLA | 28.9 A |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Refrigeration MT |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 280 mm |
| Suction connection pipe size [in] | 0.875 in |
| Suction connection size [in] | 0.875 in |
| Swept volume [cm3] | 80.94 cm3 |
| Technology | Scroll |
| Torque earth [Nm] | 2 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 455 mm |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Voltage of capacitor A [V] | 440 V |
| Voltage of capacitor B [V] | 250 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
