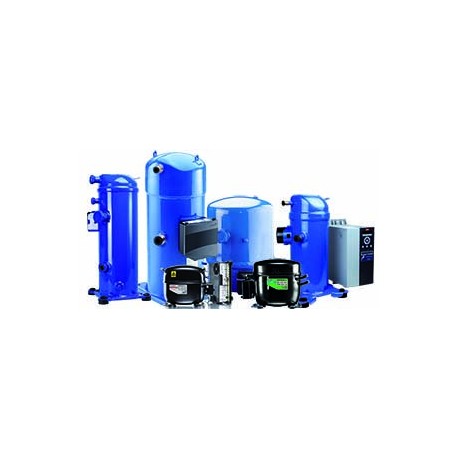

DANFOSS REFRIGERATION 121U8046 121U8046 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

121U8046 DANFOSS REFRIGERATION Scroll compressor, MLZ038T2LC9

Reference: 121U8046

Manufacturer: DANFOSS REFRIGERATION

Description:

Scroll compressor, MLZ038T2LC9

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Refrigerant: R134a; R22; R404A; R407C; R507, Segment usage: Refrigeration MT, Compressor power supply [V/Ph/Hz]: 200-220/3/50 208-230/3/60
Gross weight 43.17 Kg
Net weight 39.17 Kg
EAN 5702428227773
Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 200-220/3/50 208-230/3/60
Configuration code Single
Connection type Brazed
Description MLZ038T2
Diameter [mm] 184 mm
Discharge connection height [mm] 422 mm
Discharge connection pipe size [in] 0.5 in
Discharge connection size [in] 0.5 in
Drawing number 0XR6025B-2
Economizer No
Fitting standard ODF
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP None
Glass mounting Threaded
Glass torque [Nm] 53 N-m
High value of nominal voltage at 50Hz [V] 220 V
High value of nominal voltage at 60Hz [V] 230 V
High value of voltage range at 50Hz [V] 242 V
High value of voltage range at 60Hz [V] 253 V
IP protection class IP22
Low value of nominal voltage at 50Hz [V] 200 V
Low value of nominal voltage at 60Hz [V] 208 V
Low value of voltage range at 50Hz [V] 180 V
Low value of voltage range at 60Hz [V] 187 V
LRA 123 A
MCC 26 A
Model number MLZ038T2LC9
Motor protection Internal overload protector
Nominal cooling capacity at 50Hz 8.5 kW
Nominal cooling capacity at 60Hz 10.7 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.57 L
Oil drain 1/4'' flare
Oil equalization None
Oil reference 160HV
Oil type PVE
Packaging weight [Kg] 40 kg
Packing format Single pack/pallet
Packing quantity 6
Phase 3
Power connections Screw connectors 10-32 UNF x 9.5
Product type MLZ
Refrigerant R134a
R22
R404A
R407C
R507
Refrigerant charge [kg] [Max] 5.44 kg
Relief valve 32 bar
RLA 16.7 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Refrigeration MT
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 280 mm
Suction connection pipe size [in] 0.875 in
Suction connection size [in] 0.875 in
Swept volume [cm3] 80.95 cm3
Technology Scroll
Torque earth [Nm] 2 N-m
Torque power [Nm] 3 N-m
Total height [mm] 455 mm
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance 1-2 [Ohm] 0.6 Ohm
Winding resistance 1-3 [Ohm] 0.6 Ohm
Winding resistance 2-3 [Ohm] 0.61 Ohm
