121U8043 DANFOSS REFRIGERATION Refrigerant: R134a R22 R404A R407C R507, Segment usage: Refrigeration MT, Com..

121U8043

DANFOSS REFRIGERATION

12

Refrigerant: R134a; R22; R404A; R407C; R507, Segment usage: Refrigeration MT, Compressor power supply [V/Ph/Hz]: 200-220/3/50 208-230/3/60

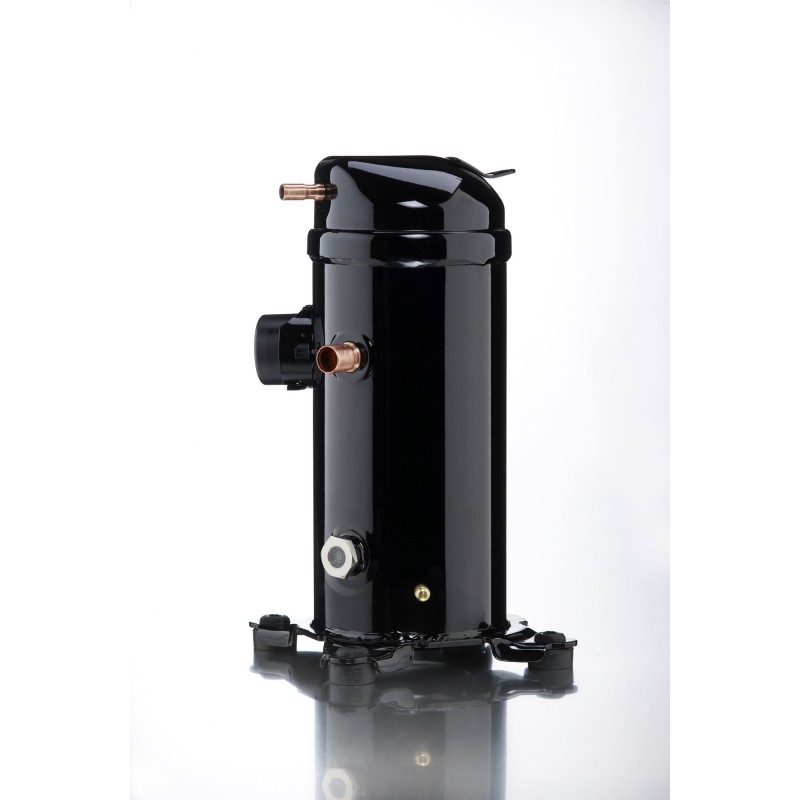

Scroll compressor, MLZ030T2LC9

More details


Home > DANFOSS REFRIGERATION

* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Refrigerants: R404A; R407C; R134a; R22, Segment usage: Refrigeration MT, Compressor power supply [V]: 200-220/3/50 208-230/3/60, Packing format: Industrial pack

Product details

Gross weight40 Kg
Net weight37.33 Kg
EAN5702428227742
Gross weight40 Kg
Net weight37.33 Kg
EAN5702428227742

ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]200-220/3/50 208-230/3/60
Configuration codeSingle
Connection typeBrazed
DescriptionMLZ030T2
Diameter [mm]184 mm
Discharge connection height [mm]422 mm
Discharge connection pipe size [in]1/2 in
Discharge connection size [in]1/2 in
Drawing number0XR6025B-2
EconomizerNo
FamilyMLZ
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPNone
Glass mountingThreaded
Glass torque [Nm]53 N-m
High value of nominal voltage at 50Hz [V]220 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]242 V
High value of voltage range at 60Hz [V]253 V
In scope of WEEE and contain batteriesNo
IP protection classIP22
Low value of nominal voltage at 50Hz [V]200 V
Low value of nominal voltage at 60Hz [V]208 V
Low value of voltage range at 50Hz [V]180 V
Low value of voltage range at 60Hz [V]187 V
LRA120 A
Max pressure (PS) - high side31.1 bar
Max pressure (PS) - low side26.2 bar
MCC26 A
Model numberMLZ030T2LC9
Motor protectionInternal overload protector
Network power supply [V/Ph/Hz]200-230/3/50 208-230/3/60
Number of starts per hour [Max]12
Oil charge [L]1.57 L
Oil drain1/4'' flare
Oil equalizationNone
Oil reference160HV
Oil typePVE
Packaging weight [Kg]40 kg
Packing formatIndustrial pack
Packing quantity12
Phase3
Power connectionsScrew connectors 10-32 UNF x 9.5
Product groupHermetic compressors
Product Name DescriptionScroll compressor MLZ
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Di-isodecyl phthalate (DIDP) (CAS no. 26761-40-0)
Diisononyl phthalate (DINP) (CAS no. 28553-12-0)
Refrigerant charge [kg] [Max]5.44 kg
RefrigerantsR134a
R22
R404A
R407C
Relief valve32 bar
RLA16.7 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.9f3eb380-2376-4d7e-8e20-14d0789b1562
Segment usageRefrigeration MT
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets and sleeves
Shipped oilInitial oil charge
Suction connection height [mm]280 mm
Suction connection material-
Suction connection pipe size [in]7/8 in
Suction connection size [in]7/8 in
Swept volume [cm3]68.79 cm³
TechnologyScroll
Torque earth [Nm]2 N-m
Torque power [Nm]3 N-m
Total height [mm]455 mm
TypeMLZ030
Viscosity [cP]32 cP
Winding resistance 1-2 [Ohm]0.67
Winding resistance 1-3 [Ohm]0.67
Winding resistance 2-3 [Ohm]0.68
ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]200-220/3/50 208-230/3/60
Configuration codeSingle
Connection typeBrazed
DescriptionMLZ030T2
Diameter [mm]184 mm
Discharge connection height [mm]422 mm
Discharge connection pipe size [in]1/2 in
Discharge connection size [in]1/2 in
Drawing number0XR6025B-2
EconomizerNo
FamilyMLZ
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPNone
Glass mountingThreaded
Glass torque [Nm]53 N-m
High value of nominal voltage at 50Hz [V]220 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]242 V
High value of voltage range at 60Hz [V]253 V
In scope of WEEE and contain batteriesNo
IP protection classIP22
Low value of nominal voltage at 50Hz [V]200 V
Low value of nominal voltage at 60Hz [V]208 V
Low value of voltage range at 50Hz [V]180 V
Low value of voltage range at 60Hz [V]187 V
LRA120 A
Max pressure (PS) - high side31.1 bar
Max pressure (PS) - low side26.2 bar
MCC26 A
Model numberMLZ030T2LC9
Motor protectionInternal overload protector
Network power supply [V/Ph/Hz]200-230/3/50 208-230/3/60
Number of starts per hour [Max]12
Oil charge [L]1.57 L
Oil drain1/4'' flare
Oil equalizationNone
Oil reference160HV
Oil typePVE
Packaging weight [Kg]40 kg
Packing formatIndustrial pack
Packing quantity12
Phase3
Power connectionsScrew connectors 10-32 UNF x 9.5
Product groupHermetic compressors
Product Name DescriptionScroll compressor MLZ
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Di-isodecyl phthalate (DIDP) (CAS no. 26761-40-0)
Diisononyl phthalate (DINP) (CAS no. 28553-12-0)
Refrigerant charge [kg] [Max]5.44 kg
RefrigerantsR134a
R22
R404A
R407C
Relief valve32 bar
RLA16.7 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.9f3eb380-2376-4d7e-8e20-14d0789b1562
Segment usageRefrigeration MT
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets and sleeves
Shipped oilInitial oil charge
Suction connection height [mm]280 mm
Suction connection material-
Suction connection pipe size [in]7/8 in
Suction connection size [in]7/8 in
Swept volume [cm3]68.79 cm³
TechnologyScroll
Torque earth [Nm]2 N-m
Torque power [Nm]3 N-m
Total height [mm]455 mm
TypeMLZ030
Viscosity [cP]32 cP
Winding resistance 1-2 [Ohm]0.67
Winding resistance 1-3 [Ohm]0.67
Winding resistance 2-3 [Ohm]0.68
