> DANFOSS REFRIGERATION>121L8983 DANFOSS REFRIGERATION Scroll compressor, MLZ076T4LQ9B
ANUNCIAR
Previous Product Next Product

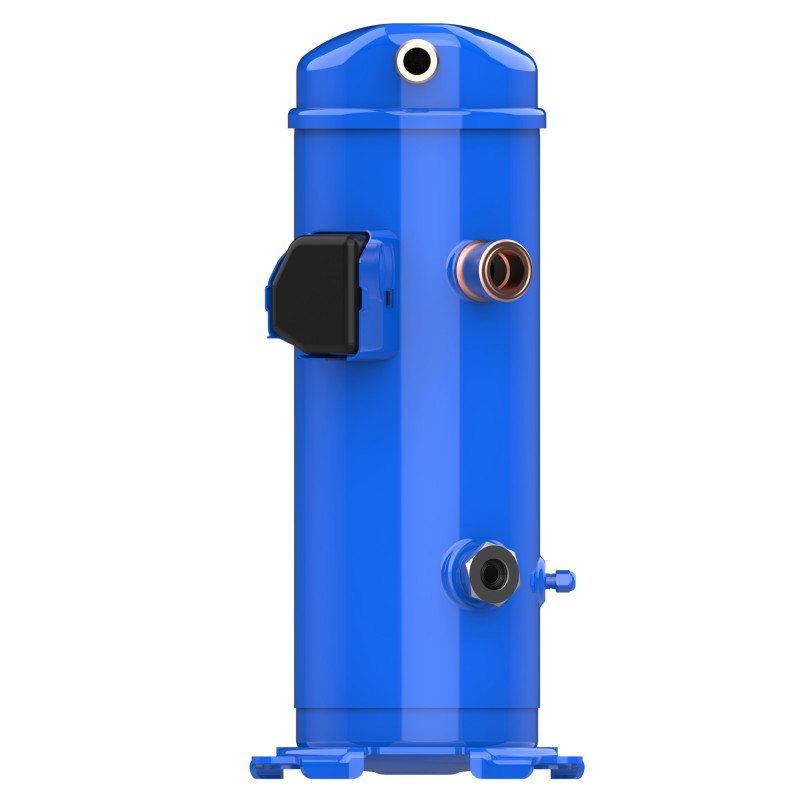

121L8983 DANFOSS REFRIGERATION Scroll compressor, MLZ076T4LQ9B View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

121L8983 DANFOSS REFRIGERATION Scroll compressor, MLZ076T4LQ9B

121L8983

DANFOSS REFRIGERATION

Scroll compressor, MLZ076T4LQ9B

More details


Home > DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

Total: $6,405.79
Unit price: $6,405.79
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Refrigerants: R404A; R452A; R407A; R134a; R454C; R407F; R513A; R448A; R455A; R449A, Segment usage: Refrigeration HT; Refrigeration MT, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Multi pack

Product details

Gross weight49.35 Kilogram
Net weight47 Kilogram
Volume48.938 Cubic decimeter
EAN5715162944400
TypeMLZ076B
Product groupHermetic compressors
Product Name DescriptionScroll compressor MLZ
Gross weight49.35 Kilogram
Net weight47 Kilogram
Volume48.938 Cubic decimeter
EAN5715162944400
TypeMLZ076B
Product groupHermetic compressors
Product Name DescriptionScroll compressor MLZ

ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlFixed speed
Compressor power supply [V]380-415/3/50 460/3/60
Configuration codeSingle
Connection typeRotolock
Contains batteriesNo
DescriptionMLZ076T4B
Discharge connection height [mm]499 mm
Discharge connection pipe size [in]3/4 in
Discharge connection size [in]1 1/4 in
Drawing number8590094
EconomizerNo
FamilyMLZ
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPNone
Glass mountingThreaded
Glass torque [Nm]53 N-m
Height from baseplate [mm]526 mm
High value of nominal voltage at 50Hz [V]415 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]457 V
High value of voltage range at 60Hz [V]506 V
IDVNo
In scope of WEEENo
IP protection classIP22
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]342 V
Low value of voltage range at 60Hz [V]414 V
LRA140 A
Max pressure (PS) - high side30.8 bar
Max pressure (PS) - low side26.2 bar
Model numberMLZ076T4LQ9B
Motor protectionInternal overload protector
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]2.66 L
Oil drain1/4'' flare
Oil equalizationNone
Oil reference215PZ
Oil typePOE
Packing formatMulti pack
Phase3
Power connectionsScrew connectors 10-32 UNF x 9.5
Refrigerant charge [kg] [Max]7.26 kg
RefrigerantsR134a
R404A
R407A
R407F
R448A
R449A
R452A
R454C
R455A
R513A
RLA19.2 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Segment usageRefrigeration MT
Refrigeration HT
Suction connection height [mm]350 mm
Suction connection material-
Suction connection pipe size [in]1 1/8 in
Suction connection size [in]1 3/4 in
Swept volume [cm3]162.43 cm³
TechnologyScroll
Torque earth [Nm]2 N-m
Torque power [Nm]3 N-m
Viscosity [cP]46 cP
Winding resistance 1-2 [Ohm]1.13 Ohm
Winding resistance 1-3 [Ohm]1.11 Ohm
Winding resistance 2-3 [Ohm]1.1 Ohm
ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlFixed speed
Compressor power supply [V]380-415/3/50 460/3/60
Configuration codeSingle
Connection typeRotolock
Contains batteriesNo
DescriptionMLZ076T4B
Discharge connection height [mm]499 mm
Discharge connection pipe size [in]3/4 in
Discharge connection size [in]1 1/4 in
Drawing number8590094
EconomizerNo
FamilyMLZ
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPNone
Glass mountingThreaded
Glass torque [Nm]53 N-m
Height from baseplate [mm]526 mm
High value of nominal voltage at 50Hz [V]415 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]457 V
High value of voltage range at 60Hz [V]506 V
IDVNo
In scope of WEEENo
IP protection classIP22
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]342 V
Low value of voltage range at 60Hz [V]414 V
LRA140 A
Max pressure (PS) - high side30.8 bar
Max pressure (PS) - low side26.2 bar
Model numberMLZ076T4LQ9B
Motor protectionInternal overload protector
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]2.66 L
Oil drain1/4'' flare
Oil equalizationNone
Oil reference215PZ
Oil typePOE
Packing formatMulti pack
Phase3
Power connectionsScrew connectors 10-32 UNF x 9.5
Refrigerant charge [kg] [Max]7.26 kg
RefrigerantsR134a
R404A
R407A
R407F
R448A
R449A
R452A
R454C
R455A
R513A
RLA19.2 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Segment usageRefrigeration MT
Refrigeration HT
Suction connection height [mm]350 mm
Suction connection material-
Suction connection pipe size [in]1 1/8 in
Suction connection size [in]1 3/4 in
Swept volume [cm3]162.43 cm³
TechnologyScroll
Torque earth [Nm]2 N-m
Torque power [Nm]3 N-m
Viscosity [cP]46 cP
Winding resistance 1-2 [Ohm]1.13 Ohm
Winding resistance 1-3 [Ohm]1.11 Ohm
Winding resistance 2-3 [Ohm]1.1 Ohm

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf 11 Mbytes
121L8983 121L8983 EN_121U8007.pdf 422 Kbytes 121L8983 121L8983 EN_121U8007.pdf
