DANFOSS REFRIGERATION121L8502 DANFOSS REFRIGERATION Scroll compressor, HRH051U4LC8B

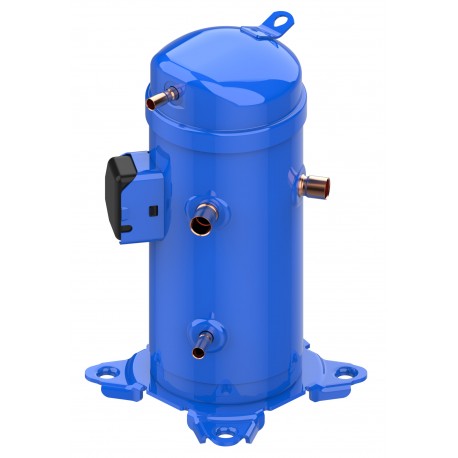

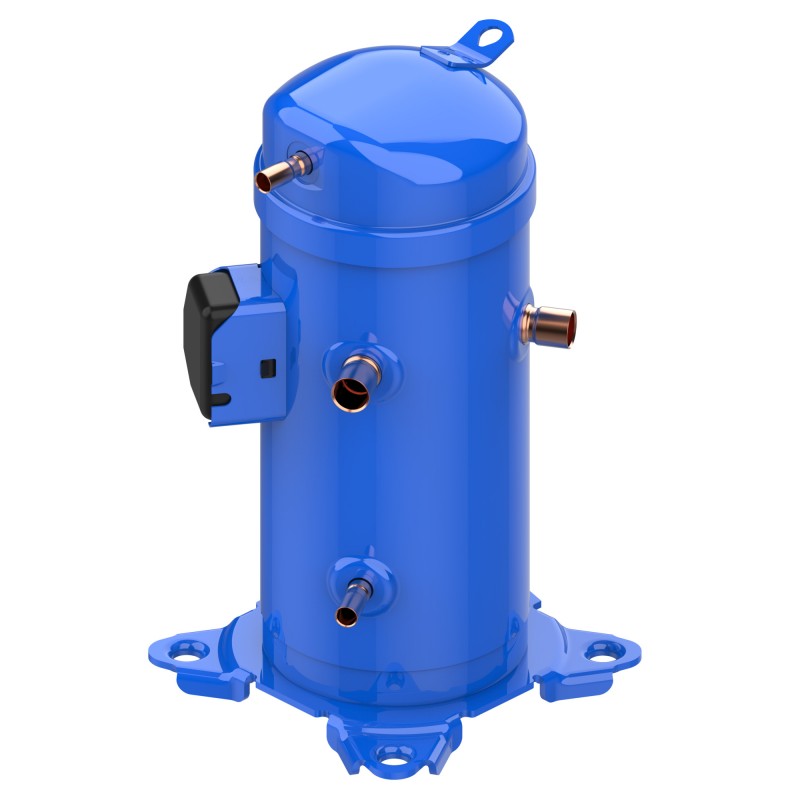

DANFOSS REFRIGERATION 121L8502 121L8502 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

121L8502 DANFOSS REFRIGERATION Scroll compressor, HRH051U4LC8B

Reference: 121L8502

Manufacturer: DANFOSS REFRIGERATION

Description:

Scroll compressor, HRH051U4LC8B

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2.045,13 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Refrigerants: R410A; R454B, Segment usage: Air conditioning, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Industrial pack

Product details

Gross weight42 Kilogram
Net weight37 Kilogram
Volume0.657 Cubic meter
EAN5715162611456
TypeHRH051 (Version B)
Product groupHermetic compressors
Product Name DescriptionScroll compressor HRH
Gross weight42 Kilogram
Net weight37 Kilogram
Volume0.657 Cubic meter
EAN5715162611456
TypeHRH051 (Version B)
Product groupHermetic compressors
Product Name DescriptionScroll compressor HRH

ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlFixed speed
CE markYes
Compressor power supply [V]380-415/3/50 460/3/60
Configuration codeSingle
Connection typeBrazed
Contains batteriesNo
DescriptionHRH051U4B
Diameter [mm]184 mm
Discharge connection height [mm]403 mm
Discharge connection pipe size [in]1/2 in
Discharge connection size [in]1/2 in
Drawing number8590065
EconomizerNo
FamilyHRH
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPNone
Glass mountingNone
High value of nominal voltage at 50Hz [V]415 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]457 V
High value of voltage range at 60Hz [V]506 V
IDVNo
In scope of WEEENo
IP protection classIP22
Length [mm]239 mm
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]342 V
Low value of voltage range at 60Hz [V]414 V
LRA70 A
Max pressure (PS) - high side44.6 bar
Model numberHRH051U4LC8B
Motor protectionInternal overload protector
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]1.73 L
Oil drainNone
Oil equalization1/2''
Oil reference215PZ
Oil typePOE
Packing formatIndustrial pack
Packing quantity12
Phase3
Power connectionsSpade
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]5.44 kg
RefrigerantsR410A
R454B
RLA8.3 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.22cfab5a-a26e-446d-9517-3ee5f4753699
SCIP dossier product nameHLH/HLJ/HLM/HLP/HRH/HRM/HRP
Segment usageAir conditioning
Suction connection height [mm]261 mm
Suction connection material-
Suction connection pipe size [in]7/8 in
Suction connection size [in]7/8 in
Swept volume [cm3]49.32 cm³
TechnologyScroll
Total height [mm]435 mm
UL markYes
Viscosity [cP]46 cP
Width [mm]239 mm
Winding resistance 1-2 [Ohm]2.32 Ohm
Winding resistance 1-3 [Ohm]2.33 Ohm
Winding resistance 2-3 [Ohm]2.36 Ohm
ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlFixed speed
CE markYes
Compressor power supply [V]380-415/3/50 460/3/60
Configuration codeSingle
Connection typeBrazed
Contains batteriesNo
DescriptionHRH051U4B
Diameter [mm]184 mm
Discharge connection height [mm]403 mm
Discharge connection pipe size [in]1/2 in
Discharge connection size [in]1/2 in
Drawing number8590065
EconomizerNo
FamilyHRH
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPNone
Glass mountingNone
High value of nominal voltage at 50Hz [V]415 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]457 V
High value of voltage range at 60Hz [V]506 V
IDVNo
In scope of WEEENo
IP protection classIP22
Length [mm]239 mm
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]342 V
Low value of voltage range at 60Hz [V]414 V
LRA70 A
Max pressure (PS) - high side44.6 bar
Model numberHRH051U4LC8B
Motor protectionInternal overload protector
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]1.73 L
Oil drainNone
Oil equalization1/2''
Oil reference215PZ
Oil typePOE
Packing formatIndustrial pack
Packing quantity12
Phase3
Power connectionsSpade
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]5.44 kg
RefrigerantsR410A
R454B
RLA8.3 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.22cfab5a-a26e-446d-9517-3ee5f4753699
SCIP dossier product nameHLH/HLJ/HLM/HLP/HRH/HRM/HRP
Segment usageAir conditioning
Suction connection height [mm]261 mm
Suction connection material-
Suction connection pipe size [in]7/8 in
Suction connection size [in]7/8 in
Swept volume [cm3]49.32 cm³
TechnologyScroll
Total height [mm]435 mm
UL markYes
Viscosity [cP]46 cP
Width [mm]239 mm
Winding resistance 1-2 [Ohm]2.32 Ohm
Winding resistance 1-3 [Ohm]2.33 Ohm
Winding resistance 2-3 [Ohm]2.36 Ohm

DATASHEET - PDF

Title
Size
Type
121L8502 121L8502 EN_120H2145.pdf
4 Mbytes
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
