DANFOSS REFRIGERATION121L8449 DANFOSS REFRIGERATION Scroll compressor, MLZ058T4LC9B

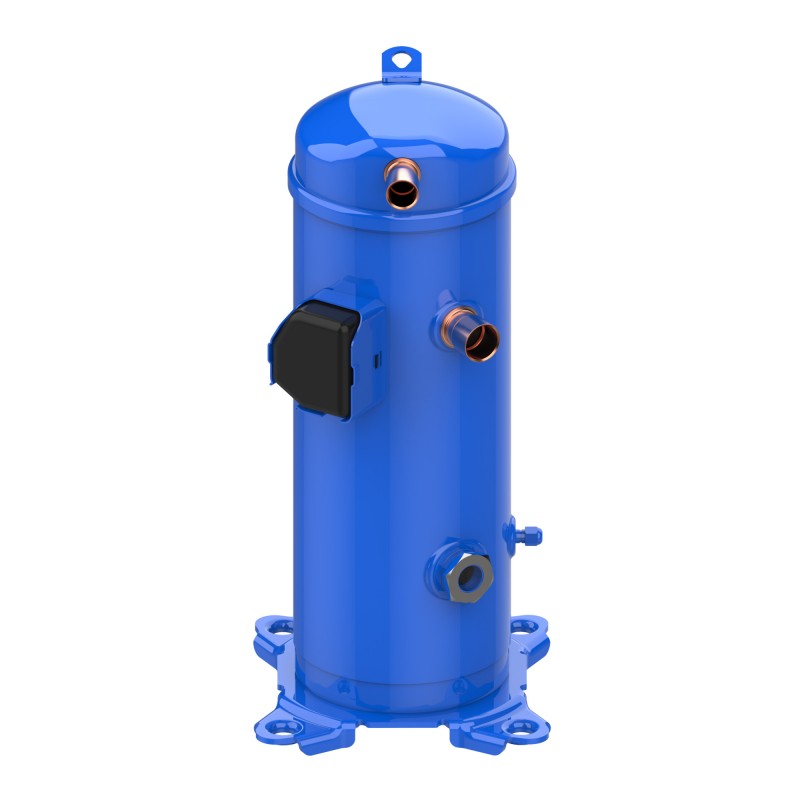

DANFOSS REFRIGERATION 121L8449 121L8449 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

121L8449 DANFOSS REFRIGERATION Scroll compressor, MLZ058T4LC9B

Reference: 121L8449

Manufacturer: DANFOSS REFRIGERATION

Description:

Scroll compressor, MLZ058T4LC9B

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 4.090,26 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Refrigerants: R404A; R452A; R407A; R134a; R454C; R407F; R513A; R448A; R455A; R449A, Segment usage: Refrigeration HT; Refrigeration MT, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Single pack

Product details

Gross weight48.3 Kilogram
Net weight46 Kilogram
Volume48.938 Cubic decimeter
EAN5702424537593
TypeMLZ058B
Product groupHermetic compressors
Product Name DescriptionScroll compressor MLZ
Gross weight48.3 Kilogram
Net weight46 Kilogram
Volume48.938 Cubic decimeter
EAN5702424537593
TypeMLZ058B
Product groupHermetic compressors
Product Name DescriptionScroll compressor MLZ

ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlFixed speed
CE markYes
China RoHS complianceYes with exemptions
China RoHS exemption clause7.1
7.3
8.1
8.3.1
ColourBlue
Compressor power supply [V]380-415/3/50 460/3/60
Configuration codeSingle
Connection typeBrazed
Contains batteriesNo
DescriptionMLZ058T4B
Discharge connection height [mm]490 mm
Discharge connection pipe size [in]7/8 in
Discharge connection size [in]7/8 in
Drawing number8590034
EconomizerNo
EU RoHS complianceYes with exemptions
EU RoHS exemption clause7(c)-I
6(a)
6(a)-I
6(c)
7(a)
FamilyMLZ
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPNone
Glass mountingThreaded
Glass torque [Nm]53 N-m
Height from baseplate [mm]517 mm
High value of nominal voltage at 50Hz [V]415 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]457 V
High value of voltage range at 60Hz [V]506 V
IDVNo
In scope of WEEENo
IP protection classIP22
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]342 V
Low value of voltage range at 60Hz [V]414 V
LRA95 A
Max pressure (PS) - high side30.8 bar
Max pressure (PS) - low side26.2 bar
MCC20 A
Model numberMLZ058T4LC9B
Motor protectionInternal overload protector
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]2.66 L
Oil drain1/4'' flare
Oil equalizationNone
Oil reference215PZ
Oil typePOE
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew connectors 10-32 UNF x 9.5
Refrigerant charge [kg] [Max]7.26 kg
RefrigerantsR134a
R404A
R407A
R407F
R448A
R449A
R452A
R454C
R455A
R513A
RLA12.8 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Segment usageRefrigeration MT
Refrigeration HT
Suction connection height [mm]350 mm
Suction connection material-
Suction connection pipe size [in]1 1/8 in
Suction connection size [in]1 1/8 in
Swept volume [cm3]125.95 cm³
TechnologyScroll
Torque earth [Nm]2 N-m
Torque power [Nm]3 N-m
UL markYes
Viscosity [cP]46 cP
Winding resistance 1-2 [Ohm]1.39 Ohm
Winding resistance 1-3 [Ohm]1.39 Ohm
Winding resistance 2-3 [Ohm]1.39 Ohm
ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlFixed speed
CE markYes
China RoHS complianceYes with exemptions
China RoHS exemption clause7.1
7.3
8.1
8.3.1
ColourBlue
Compressor power supply [V]380-415/3/50 460/3/60
Configuration codeSingle
Connection typeBrazed
Contains batteriesNo
DescriptionMLZ058T4B
Discharge connection height [mm]490 mm
Discharge connection pipe size [in]7/8 in
Discharge connection size [in]7/8 in
Drawing number8590034
EconomizerNo
EU RoHS complianceYes with exemptions
EU RoHS exemption clause7(c)-I
6(a)
6(a)-I
6(c)
7(a)
FamilyMLZ
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPNone
Glass mountingThreaded
Glass torque [Nm]53 N-m
Height from baseplate [mm]517 mm
High value of nominal voltage at 50Hz [V]415 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]457 V
High value of voltage range at 60Hz [V]506 V
IDVNo
In scope of WEEENo
IP protection classIP22
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]342 V
Low value of voltage range at 60Hz [V]414 V
LRA95 A
Max pressure (PS) - high side30.8 bar
Max pressure (PS) - low side26.2 bar
MCC20 A
Model numberMLZ058T4LC9B
Motor protectionInternal overload protector
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]2.66 L
Oil drain1/4'' flare
Oil equalizationNone
Oil reference215PZ
Oil typePOE
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew connectors 10-32 UNF x 9.5
Refrigerant charge [kg] [Max]7.26 kg
RefrigerantsR134a
R404A
R407A
R407F
R448A
R449A
R452A
R454C
R455A
R513A
RLA12.8 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Segment usageRefrigeration MT
Refrigeration HT
Suction connection height [mm]350 mm
Suction connection material-
Suction connection pipe size [in]1 1/8 in
Suction connection size [in]1 1/8 in
Swept volume [cm3]125.95 cm³
TechnologyScroll
Torque earth [Nm]2 N-m
Torque power [Nm]3 N-m
UL markYes
Viscosity [cP]46 cP
Winding resistance 1-2 [Ohm]1.39 Ohm
Winding resistance 1-3 [Ohm]1.39 Ohm
Winding resistance 2-3 [Ohm]1.39 Ohm

DATASHEET - PDF

Title
Size
Type
121L8449 121L8449 EN_121U8007.pdf
422 Kbytes
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
