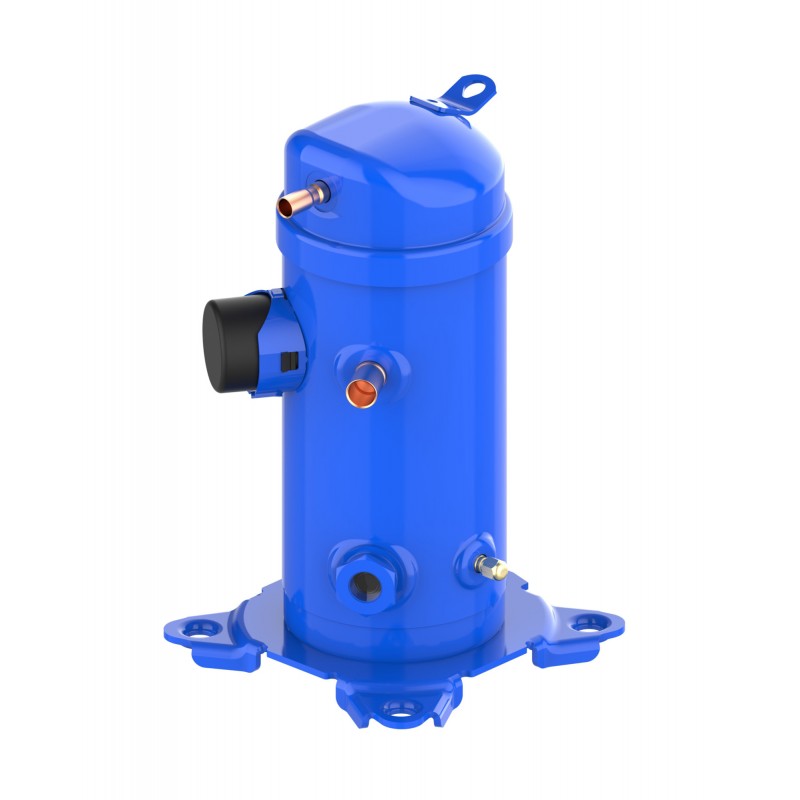

121L8431 DANFOSS REFRIGERATION Scroll compressor, MLZ021T5LP9B
121L8431
DANFOSS REFRIGERATION
Scroll compressor, MLZ021T5LP9B
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R404A; R507A; R452A; R407A; R134a; R454C; R407F; R513A; R448A; R455A; R449A, Segment usage: Refrigeration HT; Refrigeration MT, Compressor power supply [V]: 220-240/1/50, Packing format: Single pack
Product details
| Gross weight | 32.55 Kilogram |
| Net weight | 31 Kilogram |
| Volume | 38.75 Cubic decimeter |
| EAN | 5702424537395 |
| Type | MLZ021B |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor MLZ |
| Gross weight | 32.55 Kilogram |
| Net weight | 31 Kilogram |
| Volume | 38.75 Cubic decimeter |
| EAN | 5702424537395 |
| Type | MLZ021B |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor MLZ |
| Approval | CE UL UKCA |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.51 Ohm |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 70 µF |
| Capacity of capacitor B | 145-175 µF |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.3 8.1 8.3.1 |
| Compressor power supply [V] | 220-240/1/50 |
| Configuration code | Single |
| Connection type | Brazed |
| Contains batteries | No |
| Description | MLZ021T5B |
| Diameter [mm] | 164 mm |
| Discharge connection height [mm] | 360 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 8590030 |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 7(c)-I 6(a) 6(a)-I 6(c) 7(a) |
| Family | MLZ |
| Fitting standard | ODF |
| Frequency [Hz] | 50 |
| Gauge port HP | None |
| Gauge port LP | None |
| Glass mounting | Threaded |
| Glass torque [Nm] | 53 N-m |
| Height from baseplate [mm] | 393 mm |
| High value of nominal voltage at 50Hz [V] | 230 V |
| High value of voltage range at 50Hz [V] | 253 V |
| IDV | No |
| In scope of WEEE | No |
| IP protection class | IP22 |
| Liquid injection | No |
| Low value of nominal voltage at 50Hz [V] | 230 V |
| Low value of voltage range at 50Hz [V] | 207 V |
| LRA | 97 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.69 Ohm |
| Max pressure (PS) - high side | 30.8 bar |
| Max pressure (PS) - low side | 26.2 bar |
| MCC | 25 A |
| Model number | MLZ021T5LP9B |
| Motor protection | Internal overload protector |
| Network power supply [V/Ph/Hz] | 220-240/1/50 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.14 L |
| Oil drain | 1/4'' flare |
| Oil equalization | None |
| Oil reference | 215PZ |
| Oil type | POE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 1 |
| Power connections | Spade |
| Refrigerant charge [kg] [Max] | 3.63 kg |
| Refrigerants | R134a R404A R407A R407F R448A R449A R452A R454C R455A R507A R513A |
| RLA | 16 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Segment usage | Refrigeration MT Refrigeration HT |
| Suction connection height [mm] | 231 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 46.21 cm³ |
| Technology | Scroll |
| UL mark | Yes |
| Viscosity [cP] | 46 cP |
| Voltage of capacitor A [V] | 370 V |
| Voltage of capacitor B [V] | 330 V |
| Approval | CE UL UKCA |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.51 Ohm |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Capacity of capacitor A | 70 µF |
| Capacity of capacitor B | 145-175 µF |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.3 8.1 8.3.1 |
| Compressor power supply [V] | 220-240/1/50 |
| Configuration code | Single |
| Connection type | Brazed |
| Contains batteries | No |
| Description | MLZ021T5B |
| Diameter [mm] | 164 mm |
| Discharge connection height [mm] | 360 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 8590030 |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 7(c)-I 6(a) 6(a)-I 6(c) 7(a) |
| Family | MLZ |
| Fitting standard | ODF |
| Frequency [Hz] | 50 |
| Gauge port HP | None |
| Gauge port LP | None |
| Glass mounting | Threaded |
| Glass torque [Nm] | 53 N-m |
| Height from baseplate [mm] | 393 mm |
| High value of nominal voltage at 50Hz [V] | 230 V |
| High value of voltage range at 50Hz [V] | 253 V |
| IDV | No |
| In scope of WEEE | No |
| IP protection class | IP22 |
| Liquid injection | No |
| Low value of nominal voltage at 50Hz [V] | 230 V |
| Low value of voltage range at 50Hz [V] | 207 V |
| LRA | 97 A |
| Main winding resistance for single-phase compressors [Ohm] | 0.69 Ohm |
| Max pressure (PS) - high side | 30.8 bar |
| Max pressure (PS) - low side | 26.2 bar |
| MCC | 25 A |
| Model number | MLZ021T5LP9B |
| Motor protection | Internal overload protector |
| Network power supply [V/Ph/Hz] | 220-240/1/50 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.14 L |
| Oil drain | 1/4'' flare |
| Oil equalization | None |
| Oil reference | 215PZ |
| Oil type | POE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 1 |
| Power connections | Spade |
| Refrigerant charge [kg] [Max] | 3.63 kg |
| Refrigerants | R134a R404A R407A R407F R448A R449A R452A R454C R455A R507A R513A |
| RLA | 16 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Segment usage | Refrigeration MT Refrigeration HT |
| Suction connection height [mm] | 231 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 46.21 cm³ |
| Technology | Scroll |
| UL mark | Yes |
| Viscosity [cP] | 46 cP |
| Voltage of capacitor A [V] | 370 V |
| Voltage of capacitor B [V] | 330 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 121L8431 121L8431 EN_121U8007.pdf | 422 Kbytes |
|
