DANFOSS REFRIGERATION120U2471 DANFOSS REFRIGERATION Scroll compressor, HRH049U4LC8
DANFOSS REFRIGERATION 120U2471 120U2471 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

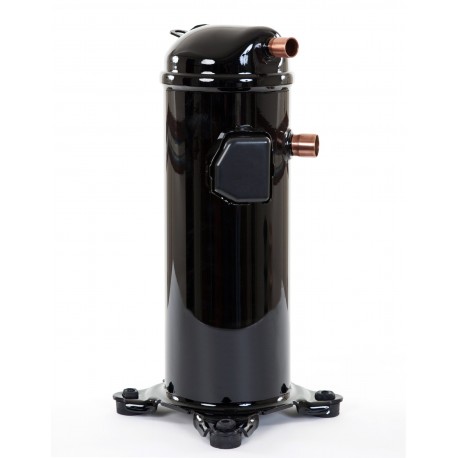

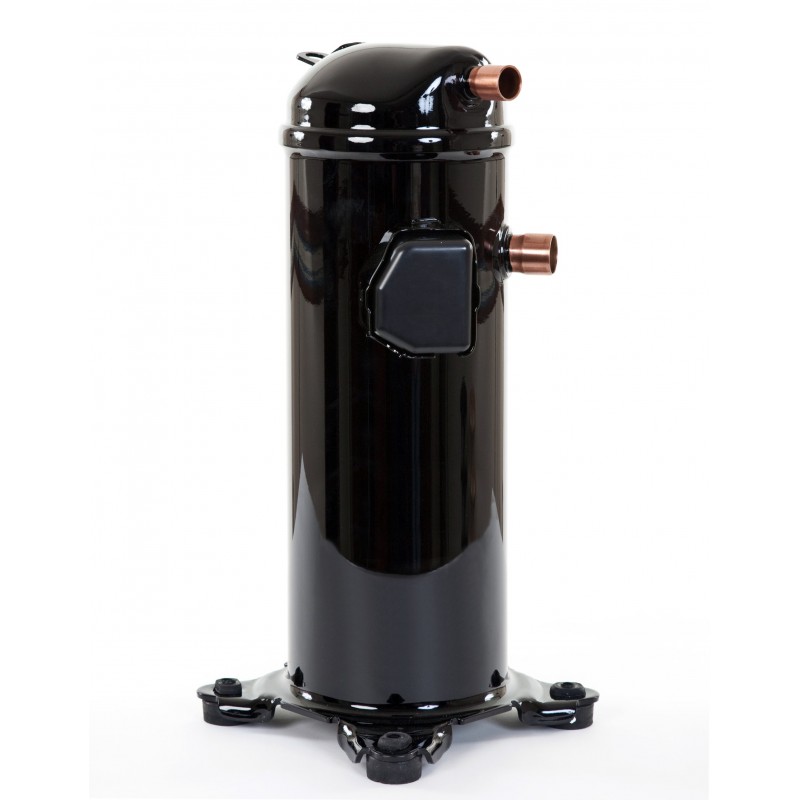

120U2471 DANFOSS REFRIGERATION Scroll compressor, HRH049U4LC8

Reference: 120U2471

Manufacturer: DANFOSS REFRIGERATION

Description:

Scroll compressor, HRH049U4LC8

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Refrigerant: R410A, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60
Gross weight 40.17 Kg
Net weight 37.5 Kg
EAN 5702428218900
Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Brazed
Description HRH049U4
Discharge connection pipe size [in] 0.5 in
Discharge connection size [in] 0.5 in
Economizer No
Frequency [Hz] 50/60
High value of nominal voltage at 50Hz [V] 415 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 457 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP22
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 342 V
Low value of voltage range at 60Hz [V] 414 V
LRA 60 A
MCC 13.5 A
Model number HRH049U4LC8
Motor protection Internal overload protector
Nominal cooling capacity 60 kBTU/h 48.81 KBtu/h
Nominal cooling capacity at 50Hz 10.7 kW
Nominal cooling capacity at 60Hz 14.3 kW
Nominal heating capacity at 50Hz 7.2 kW
Oil charge [L] 1.57 L
Oil reference 320HV
Oil type PVE
Packing format Industrial pack
Packing quantity 16
Phase 3
Power connections Spade
Product type HRH
Refrigerant R410A
Refrigerant charge [kg] [Max] 5.44 kg
RLA 8.6 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection pipe size [in] 0.875 in
Suction connection size [in] 0.875 in
Swept volume [cm3] 47.36 cm3
Technology Scroll
Type designation Compressor
Viscosity [cP] 68 cP
Winding resistance 1-2 [Ohm] 2.59 Ohm
Winding resistance 1-3 [Ohm] 2.55 Ohm
Winding resistance 2-3 [Ohm] 2.54 Ohm
Winding resistance for three-phase compressors with identical windings [Ohm] 3.22 Ohm

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
