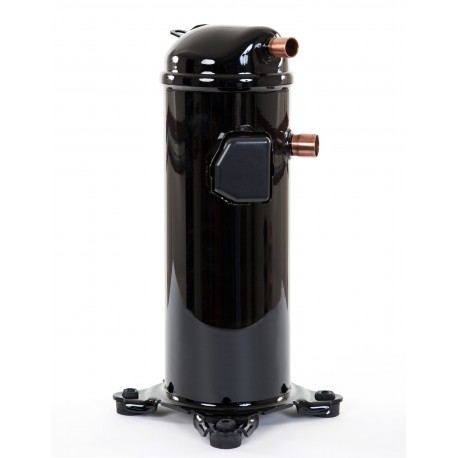

120U1541 DANFOSS REFRIGERATION Scroll compressor, HRM060T1LP6, Refrigerant: R22, Segment usage: Air conditio.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

120U1541 DANFOSS REFRIGERATION Scroll compressor, HRM060T1LP6, Refrigerant: R22, Segment usage: Air conditio..

120U1541

DANFOSS REFRIGERATION

Scroll compressor, HRM060T1LP6, Refrigerant: R22, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 230/1/60

More details


Home > DANFOSS REFRIGERATION

* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Refrigerant: R22, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 230/1/60
Gross weight 43.43 Kg
Net weight 40.37 Kg
EAN 5702428225649
Approval standard CE
UL
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 1.76 Ohm
Brand technique Scroll compressor
Capacity control Fixed speed
Capacity of capacitor A 55 µF
Capacity of capacitor B 88-108 µF
Colour Black
Compressor power supply [V/Ph/Hz] 230/1/60
Configuration code Single
Connection type Brazed
Description HRM060T1
Diameter [mm] 184 mm
Discharge connection height [mm] 422 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Drawing number 0XR6002B-2
Economizer No
Fitting standard ODF
Frequency [Hz] 60
Gauge port HP None
Gauge port LP None
Gaz equalization None
Glass mounting None
High side max pressure (Ps) 31.1 bar
High value of nominal voltage at 50Hz [V] 0 V
High value of nominal voltage at 60Hz [V] 230 V
High value of voltage range at 50Hz [V] 0 V
High value of voltage range at 60Hz [V] 253 V
IP protection class IP22
Length [mm] 239 mm
Low side max pressure (Ps) 26.2 bar
Low value of nominal voltage at 50Hz [V] 0 V
Low value of nominal voltage at 60Hz [V] 208 V
Low value of voltage range at 50Hz [V] 0 V
Low value of voltage range at 60Hz [V] 187 V
LRA 160 A
Main winding resistance for single-phase compressors [Ohm] 0.27 Ohm
MCC 45 A
Model number HRM060T1LP6
Motor protection Internal overload protector
Nominal cooling capacity 60 kBTU/h 60.07 KBtu/h
Nominal cooling capacity at 60Hz 17.6 kW
Oil charge [L] 1.57 L
Oil drain None
Oil equalization None
Oil reference 160ABM
Oil type Alkylbenzene
Packing format Single pack/pallet
Packing quantity 16
Phase 1
Power connections Spade
Product type HRM
Refrigerant R22
Refrigerant charge [kg] [Max] 5.44 kg
Relay model 3ARR3*25S*
Relief valve Yes
RLA 28.9 A
Rotational speed at 50Hz [rpm] 0 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 280 mm
Suction connection pipe size [in] 7/8 in
Suction connection size [in] 7/8 in
Swept volume [cm3] 80.95 cm3
Technology Scroll
Total height [mm] 455 mm
Type designation Compressor
Viscosity [cP] 32 cP
Voltage of capacitor A [V] 440 V
Voltage of capacitor B [V] 250 V
Width [mm] 239 mm
