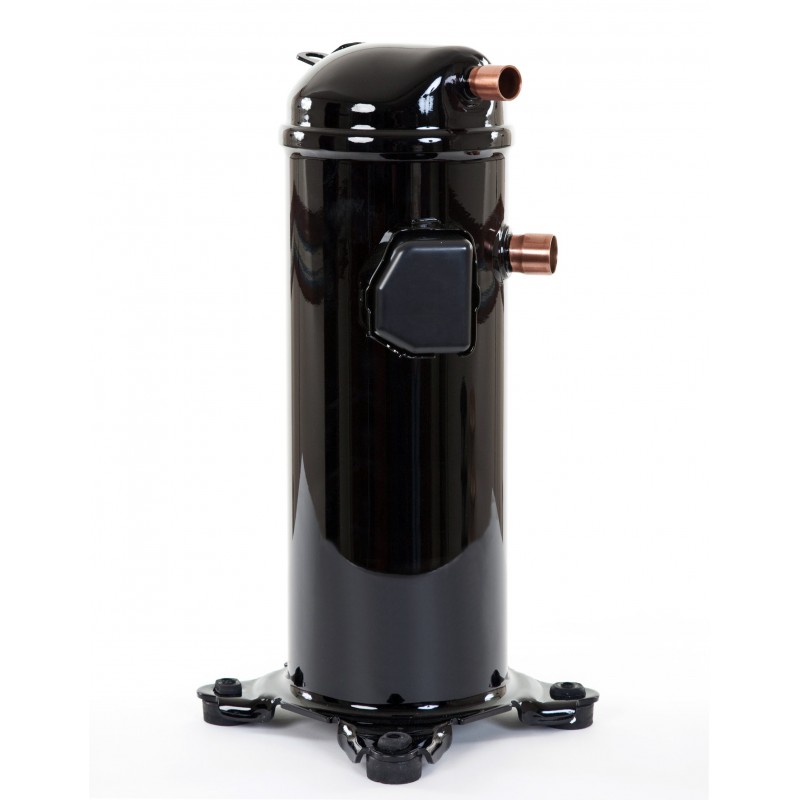

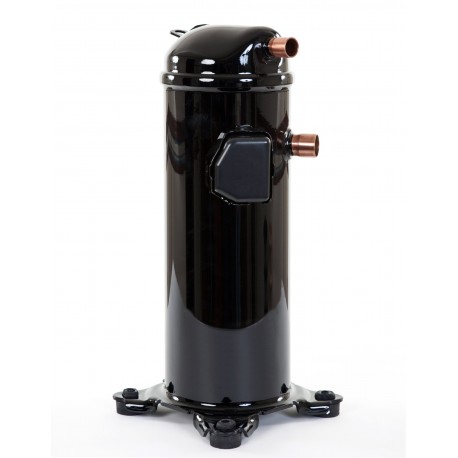

120U1481 DANFOSS REFRIGERATION Scroll compressor, HLH068T2LC6 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

120U1481 DANFOSS REFRIGERATION Scroll compressor, HLH068T2LC6

120U1481

DANFOSS REFRIGERATION

Scroll compressor, HLH068T2LC6

More details


Home > DANFOSS REFRIGERATION

* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Refrigerant: R410A, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 200-220/3/50 208-230/3/60
Gross weight 40.57 Kg
Net weight 39.95 Kg
EAN 5702428226127
Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 200-220/3/50 208-230/3/60
Configuration code Single
Connection type Brazed
Description HLH068T2
Diameter [mm] 184 mm
Discharge connection height [mm] 422 mm
Discharge connection pipe size [in] 0.5 in
Discharge connection size [in] 0.5 in
Drawing number 0XR6089B-1
Economizer No
Fitting standard ODF
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP None
Glass mounting None
High value of nominal voltage at 50Hz [V] 220 V
High value of nominal voltage at 60Hz [V] 230 V
High value of voltage range at 50Hz [V] 242 V
High value of voltage range at 60Hz [V] 253 V
IP protection class IP22
Length [mm] 239 mm
Low value of nominal voltage at 50Hz [V] 200 V
Low value of nominal voltage at 60Hz [V] 208 V
Low value of voltage range at 50Hz [V] 180 V
Low value of voltage range at 60Hz [V] 187 V
LRA 160 A
MCC 36 A
Model number HLH068T2LC6
Motor protection Internal overload protector
Nominal cooling capacity 60 kBTU/h 68.6 KBtu/h
Nominal cooling capacity at 50Hz 15 kW
Nominal cooling capacity at 60Hz 20.1 kW
Nominal heating capacity at 50Hz 10 kW
Oil charge [L] 1.57 L
Oil equalization None
Oil reference 320HV
Oil type PVE
Packing format Single pack/pallet
Packing quantity 16
Phase 3
Power connections Screw connectors 10-32 UNF x 9.5
Product type HLH
Refrigerant R410A
Refrigerant charge [kg] [Max] 5.44 kg
Relief valve Yes
RLA 23 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 280 mm
Suction connection pipe size [in] 0.875 in
Suction connection size [in] 0.875 in
Swept volume [cm3] 64.4 cm3
Technology Scroll
Torque earth [Nm] 2 N-m
Torque power [Nm] 3 N-m
Total height [mm] 455 mm
Type designation Compressor
Viscosity [cP] 68 cP
Width [mm] 239 mm
Winding resistance 1-2 [Ohm] 0.54 Ohm
Winding resistance 1-3 [Ohm] 0.53 Ohm
Winding resistance 2-3 [Ohm] 0.53 Ohm
