DANFOSS REFRIGERATION120U0906 DANFOSS REFRIGERATION Scroll compressor, HCP094T2LC6

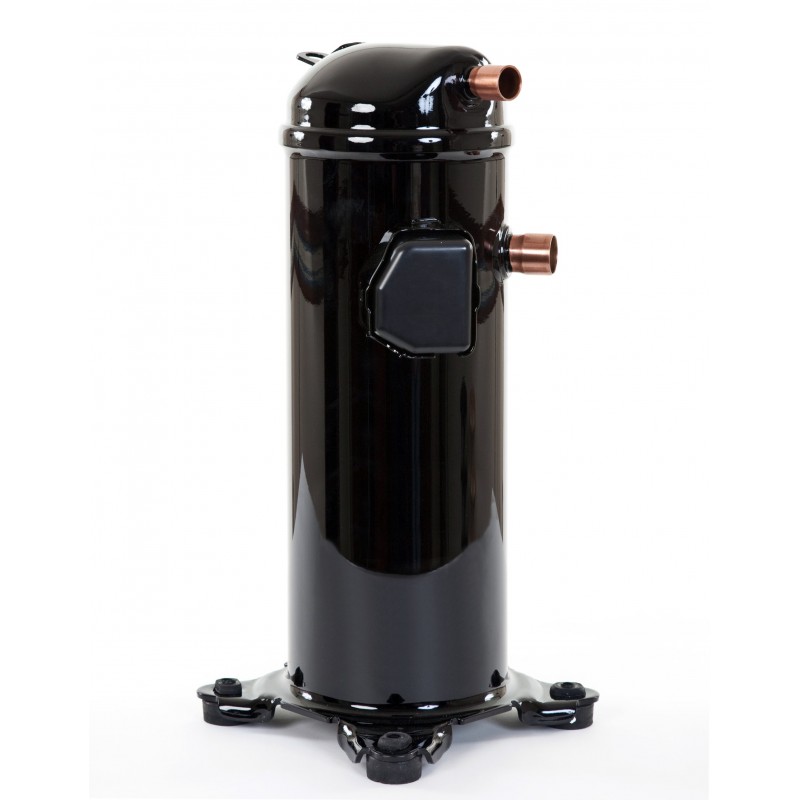

DANFOSS REFRIGERATION 120U0906 120U0906 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

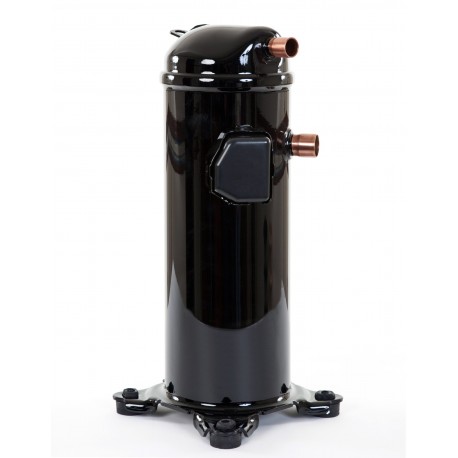

120U0906 DANFOSS REFRIGERATION Scroll compressor, HCP094T2LC6

Reference: 120U0906

Manufacturer: DANFOSS REFRIGERATION

Description:

Scroll compressor, HCP094T2LC6
Scroll compressor, type, HCP094T2LC6

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 6.715,13 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Refrigerant: R407C, Segment usage: Air conditioning;Heating, Compressor power supply [V/Ph/Hz]: 200-220/3/50 208-230/3/60
Gross weight 46.01 Kg
Net weight 45.4 Kg
EAN 5702428208536
Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 200-220/3/50 208-230/3/60
Configuration code Single
Connection type Brazed
Description HCP094T2
Diameter [mm] 184 mm
Discharge connection height [mm] 509 mm
Discharge connection pipe size [in] 0.875 in
Discharge connection size [in] 0.875 in
Drawing number 0SR4103B-3
Economizer No
Fitting standard ODF
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP None
Glass mounting None
High value of nominal voltage at 50Hz [V] 220 V
High value of nominal voltage at 60Hz [V] 230 V
High value of voltage range at 50Hz [V] 242 V
High value of voltage range at 60Hz [V] 253 V
IP protection class IP22
Length [mm] 232 mm
Low value of nominal voltage at 50Hz [V] 200 V
Low value of nominal voltage at 60Hz [V] 208 V
Low value of voltage range at 50Hz [V] 180 V
Low value of voltage range at 60Hz [V] 187 V
LRA 190 A
MCC 40 A
Model number HCP094T2LC6
Motor protection Internal overload protector
Number of starts per hour [Max] 12
Oil charge [L] 2.66 L
Oil equalization None
Oil reference 320HV
Oil type PVE
Packing format Single pack/pallet
Packing quantity 16
Phase 3
Power connections Screw connectors 10-32 UNF x 9.5
Product type HCP
Refrigerant R407C
Refrigerant charge [kg] [Max] 7.26 kg
Relief valve None
RLA 25.6 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Heating
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 369 mm
Suction connection pipe size [in] 1.125 in
Suction connection size [in] 1.125 in
Swept volume [cm3] 126.02 cm3
Technology Scroll
Torque earth [Nm] 2 N-m
Torque power [Nm] 3 N-m
Total height [mm] 536 mm
Type designation Compressor
Viscosity [cP] 68 cP
Width [mm] 232 mm
Winding resistance 1-2 [Ohm] 0.37 Ohm
Winding resistance 1-3 [Ohm] 0.37 Ohm
Winding resistance 2-3 [Ohm] 0.37 Ohm
