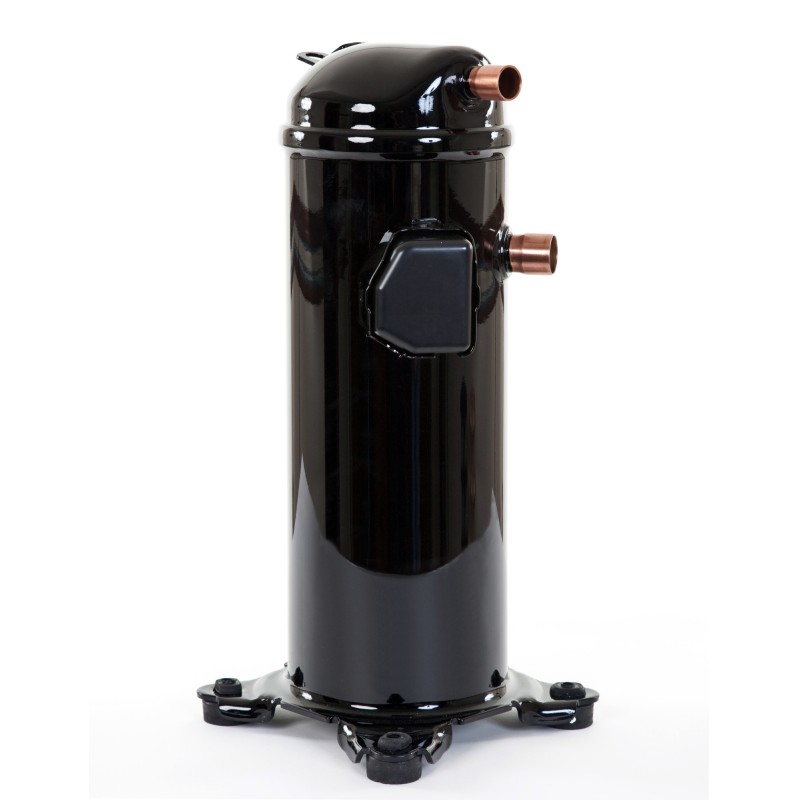

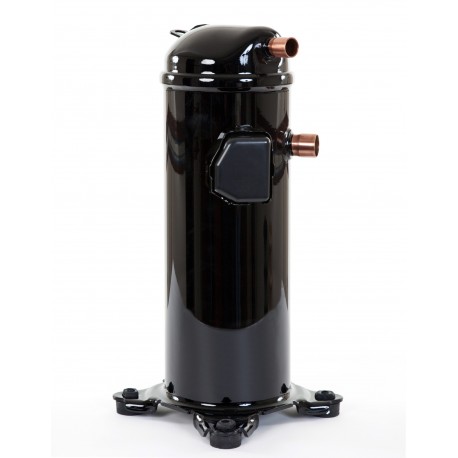

120U0408 DANFOSS REFRIGERATION Scroll compressor, HCP120T4LC8
120U0408
DANFOSS REFRIGERATION
12
Scroll compressor, HCP120T4LC8
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R407C, Segment usage: Air conditioning, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Industrial pack
Product details
| Gross weight | 47.5 Kg |
| Net weight | 44.83 Kg |
| Volume | 55.342 Liter |
| EAN | 5702428212489 |
| Gross weight | 47.5 Kg |
| Net weight | 44.83 Kg |
| Volume | 55.342 Liter |
| EAN | 5702428212489 |
| Approval | CE UL UKCA |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 380-415/3/50 460/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | HCP120T4 |
| Diameter [mm] | 184 mm |
| Discharge connection height [mm] | 529 mm |
| Discharge connection pipe size [in] | 7/8 in |
| Discharge connection size [in] | 7/8 in |
| Drawing number | 0SR6301B-4 |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| Family | HCP |
| Fitting standard | ODF |
| Frequency [Hz] | 50/60 |
| Gauge port HP | None |
| Gauge port LP | None |
| Gaz equalization | Brazed |
| Glass mounting | None |
| High value of nominal voltage at 50Hz [V] | 415 V |
| High value of nominal voltage at 60Hz [V] | 460 V |
| High value of voltage range at 50Hz [V] | 457 V |
| High value of voltage range at 60Hz [V] | 506 V |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP22 |
| Length [mm] | 232 mm |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 460 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 414 V |
| LRA | 140 A |
| Max pressure (PS) - high side | 31.1 bar |
| Max pressure (PS) - low side | 26.2 bar |
| MCC | 25 A |
| Model number | HCP120T4LC8 |
| Motor protection | Internal overload protector |
| Network power supply [V/Ph/Hz] | 380-415/3/50 460/3/60 |
| Oil charge [L] | 2.66 L |
| Oil equalization | Brazed |
| Oil reference | 320HV |
| Oil type | PVE |
| Packing format | Industrial pack |
| Packing quantity | 16 |
| Phase | 3 |
| Power connections | Screw connectors 10-32 UNF x 9.5 |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor HCP |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 7.26 kg |
| Refrigerants | R407C |
| Relief valve | Yes |
| RLA | 19.2 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| SCIP dossier no. | 6987e9ab-f9b7-473c-9c29-6cb05443e8ef |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 380 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 1 1/8 in |
| Suction connection size [in] | 1 1/8 in |
| Swept volume [cm3] | 162.4 cm³ |
| Technology | Scroll |
| Torque earth [Nm] | 2 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 556 mm |
| Type | HCP120 |
| Viscosity [cP] | 68 cP |
| Width [mm] | 232 mm |
| Winding resistance 1-2 [Ohm] | 1.13 |
| Winding resistance 1-3 [Ohm] | 1.11 |
| Winding resistance 2-3 [Ohm] | 1.1 |
| Approval | CE UL UKCA |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 380-415/3/50 460/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | HCP120T4 |
| Diameter [mm] | 184 mm |
| Discharge connection height [mm] | 529 mm |
| Discharge connection pipe size [in] | 7/8 in |
| Discharge connection size [in] | 7/8 in |
| Drawing number | 0SR6301B-4 |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| Family | HCP |
| Fitting standard | ODF |
| Frequency [Hz] | 50/60 |
| Gauge port HP | None |
| Gauge port LP | None |
| Gaz equalization | Brazed |
| Glass mounting | None |
| High value of nominal voltage at 50Hz [V] | 415 V |
| High value of nominal voltage at 60Hz [V] | 460 V |
| High value of voltage range at 50Hz [V] | 457 V |
| High value of voltage range at 60Hz [V] | 506 V |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP22 |
| Length [mm] | 232 mm |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 460 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 414 V |
| LRA | 140 A |
| Max pressure (PS) - high side | 31.1 bar |
| Max pressure (PS) - low side | 26.2 bar |
| MCC | 25 A |
| Model number | HCP120T4LC8 |
| Motor protection | Internal overload protector |
| Network power supply [V/Ph/Hz] | 380-415/3/50 460/3/60 |
| Oil charge [L] | 2.66 L |
| Oil equalization | Brazed |
| Oil reference | 320HV |
| Oil type | PVE |
| Packing format | Industrial pack |
| Packing quantity | 16 |
| Phase | 3 |
| Power connections | Screw connectors 10-32 UNF x 9.5 |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor HCP |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 7.26 kg |
| Refrigerants | R407C |
| Relief valve | Yes |
| RLA | 19.2 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| SCIP dossier no. | 6987e9ab-f9b7-473c-9c29-6cb05443e8ef |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 380 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 1 1/8 in |
| Suction connection size [in] | 1 1/8 in |
| Swept volume [cm3] | 162.4 cm³ |
| Technology | Scroll |
| Torque earth [Nm] | 2 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 556 mm |
| Type | HCP120 |
| Viscosity [cP] | 68 cP |
| Width [mm] | 232 mm |
| Winding resistance 1-2 [Ohm] | 1.13 |
| Winding resistance 1-3 [Ohm] | 1.11 |
| Winding resistance 2-3 [Ohm] | 1.1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 120U0408 120U0408 EN_120U1401.pdf | 4 Mbytes |
 |
