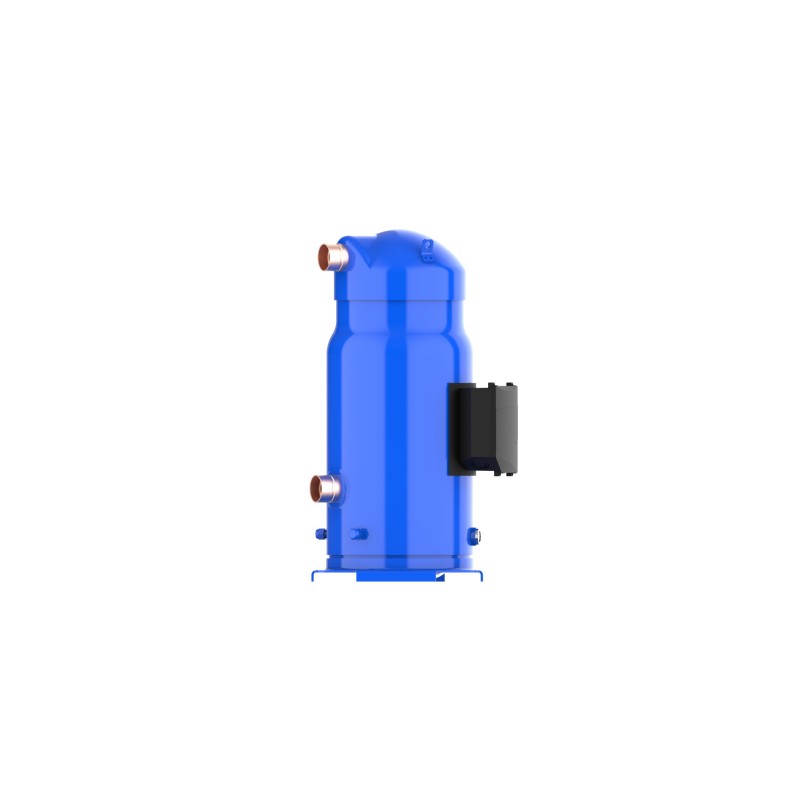

120H1829 DANFOSS REFRIGERATION Scroll compressor, DSG295A4ABB
120H1829
DANFOSS REFRIGERATION
Scroll compressor, DSG295A4ABB
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R1234ze(E); R515B, Segment usage: Air conditioning, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Industrial pack
Product details
| Gross weight | 132.5 Kilogram |
| Net weight | 117.16 Kilogram |
| Volume | 0.839 Cubic meter |
| EAN | 5702424642235 |
| Type | DSG295 |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor DSG |
| Gross weight | 132.5 Kilogram |
| Net weight | 117.16 Kilogram |
| Volume | 0.839 Cubic meter |
| EAN | 5702424642235 |
| Type | DSG295 |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor DSG |
| Approval | CE UL UKCA |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Colour | Blue |
| Compressor power supply [V] | 380-415/3/50 460/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Contains batteries | No |
| Description | DSG295-4 |
| Diameter [mm] | 287 mm |
| Discharge connection height [mm] | 680 mm |
| Discharge connection pipe size [in] | 2 1/8 in |
| Discharge connection size [in] | 2 1/8 in |
| Drawing number | 8556321 |
| Economizer | No |
| EU RoHS compliance | Out of scope |
| Family | DSG |
| Fitting standard | ODF |
| Frequency [Hz] | 50/60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| GP LP torque [Nm] | 15 N-m |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 3 L |
| High value of nominal voltage at 50Hz [V] | 415 V |
| High value of nominal voltage at 60Hz [V] | 460 V |
| High value of voltage range at 50Hz [V] | 457 V |
| High value of voltage range at 60Hz [V] | 506 V |
| IDV | Yes |
| In scope of WEEE | No |
| IP protection class | IP54 (with cable gland) |
| Liquid injection | No |
| Low Side TS Max | 52 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 31.8 L |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 460 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 414 V |
| LRA | 268 A |
| Max pressure (PS) - high side | 23 bar |
| Max pressure (PS) - low side | 15.2 bar |
| Maximum Operating Current [MOC] | 52 A |
| Model number | DSG295A4ABB |
| Motor protection | Electronic protection module, 115/230 V |
| Network power supply [V/Ph/Hz] | 380-415/3/50 460/3/60 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 6.1 L |
| Oil drain | 1/4'' flare |
| Oil drain torque [Nm] | 35 N-m |
| Oil equalization | 1/2'' flare |
| Oil equalization torque [Nm] | 66 N-m |
| Oil reference | 160SZ |
| Oil type | POE |
| Packing format | Industrial pack |
| Packing quantity | 6 |
| Phase | 3 |
| Power connections | Stud M5 |
| Refrigerant charge [kg] [Max] | 15 kg |
| Refrigerants | R1234ze(E) R515B |
| Reverse rotation protection | Electronic module |
| RLA | 44 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning |
| Suction connection height [mm] | 181 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 2 1/8 in |
| Suction connection size [in] | 2 1/8 in |
| Swept volume [cm3] | 816 cm³ |
| Technology | Scroll |
| Torque earth [Nm] | 4 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 743 mm |
| UL mark | Yes |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.56 Ohm |
| Approval | CE UL UKCA |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Colour | Blue |
| Compressor power supply [V] | 380-415/3/50 460/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Contains batteries | No |
| Description | DSG295-4 |
| Diameter [mm] | 287 mm |
| Discharge connection height [mm] | 680 mm |
| Discharge connection pipe size [in] | 2 1/8 in |
| Discharge connection size [in] | 2 1/8 in |
| Drawing number | 8556321 |
| Economizer | No |
| EU RoHS compliance | Out of scope |
| Family | DSG |
| Fitting standard | ODF |
| Frequency [Hz] | 50/60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| GP LP torque [Nm] | 15 N-m |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 3 L |
| High value of nominal voltage at 50Hz [V] | 415 V |
| High value of nominal voltage at 60Hz [V] | 460 V |
| High value of voltage range at 50Hz [V] | 457 V |
| High value of voltage range at 60Hz [V] | 506 V |
| IDV | Yes |
| In scope of WEEE | No |
| IP protection class | IP54 (with cable gland) |
| Liquid injection | No |
| Low Side TS Max | 52 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 31.8 L |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 460 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 414 V |
| LRA | 268 A |
| Max pressure (PS) - high side | 23 bar |
| Max pressure (PS) - low side | 15.2 bar |
| Maximum Operating Current [MOC] | 52 A |
| Model number | DSG295A4ABB |
| Motor protection | Electronic protection module, 115/230 V |
| Network power supply [V/Ph/Hz] | 380-415/3/50 460/3/60 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 6.1 L |
| Oil drain | 1/4'' flare |
| Oil drain torque [Nm] | 35 N-m |
| Oil equalization | 1/2'' flare |
| Oil equalization torque [Nm] | 66 N-m |
| Oil reference | 160SZ |
| Oil type | POE |
| Packing format | Industrial pack |
| Packing quantity | 6 |
| Phase | 3 |
| Power connections | Stud M5 |
| Refrigerant charge [kg] [Max] | 15 kg |
| Refrigerants | R1234ze(E) R515B |
| Reverse rotation protection | Electronic module |
| RLA | 44 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning |
| Suction connection height [mm] | 181 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 2 1/8 in |
| Suction connection size [in] | 2 1/8 in |
| Swept volume [cm3] | 816 cm³ |
| Technology | Scroll |
| Torque earth [Nm] | 4 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 743 mm |
| UL mark | Yes |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.56 Ohm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
