DANFOSS REFRIGERATION120H1122 DANFOSS REFRIGERATION Scroll compressor, DSH240A4ABB

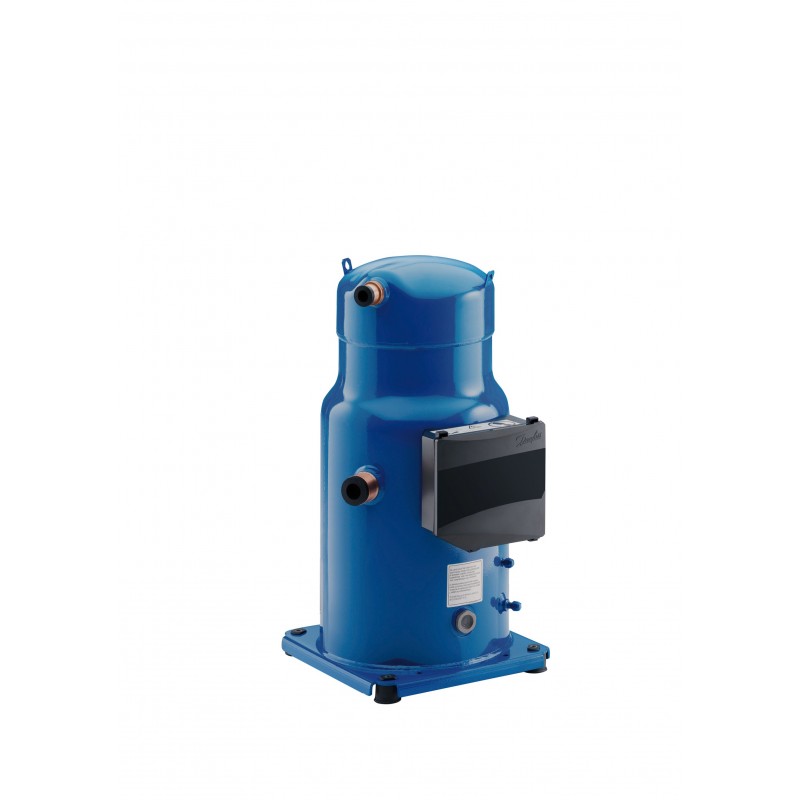

DANFOSS REFRIGERATION 120H1122 120H1122 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

120H1122 DANFOSS REFRIGERATION Scroll compressor, DSH240A4ABB

Reference: 120H1122

Manufacturer: DANFOSS REFRIGERATION

Description:

Scroll compressor, DSH240A4ABB

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Refrigerant: R410A, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60
Gross weight 116.16 Kg
Net weight 112 Kg
Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Brazed
Description DSH240-4 (Old)
Diameter [mm] 318 mm
Discharge connection height [mm] 648 mm
Discharge connection pipe size [in] 1.125 in
Discharge connection size [in] 1.125 in
Drawing number 8556089g
Economizer No
Fitting standard ODF
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Glass mounting Threaded
Glass torque [Nm] 50 N-m
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 440 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP54 (with cable gland)
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 342 V
Low value of voltage range at 60Hz [V] 414 V
LRA 215 A
MCC 51 A
Model number DSH240A4ABB
Motor protection Electronic protection module, 110/240 V
Mounting torque [Nm] 21 N-m
Nominal cooling capacity 60 kBTU/h 246.76 KBtu/h
Nominal cooling capacity at 50Hz 53 kW
Nominal cooling capacity at 60Hz 72.3 kW
Number of starts per hour [Max] 12
Oil charge [L] 6.7 L
Oil drain 1/4'' flare
Oil equalization 2-1/4'' Rotolock
Oil reference 160SZ
Oil type POE
Packing format Industrial pack
Packing quantity 6
Phase 3
Power connections Screw 4.8 mm
Product type DSH
Refrigerant R410A
Refrigerant charge [kg] [Max] 15 kg
Relief valve None
Reverse rotation protection Electronic module
RLA 36.4 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped instructions Installation instructions
Shipped module Electronic protection module mounted in terminal box
Shipped oil Initial oil charge
Suction connection height [mm] 331 mm
Suction connection pipe size [in] 1.625 in
Suction connection size [in] 1.625 in
Swept volume [cm3] 227.6 cm3
Technology Scroll
Test dif [bar] [Max] 37 bar
Test HP [bar] [Max] 48.7 bar
Test LP [bar] [Max] 34.3 bar
Torque earth [Nm] 2 N-m
Torque power [Nm] 3 N-m
Total height [mm] 683 mm
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 0.616 Ohm
