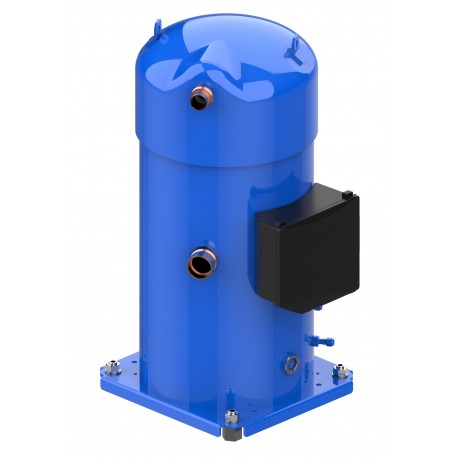

DANFOSS REFRIGERATION 120H0235 120H0235 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

120H0235 DANFOSS REFRIGERATION Scroll compressor, SH300A3ABE

Name: 120H0235 DANFOSS REFRIGERATION Scroll compressor, SH300A3ABE
Brand: DANFOSS REFRIGERATION
SKU: DAO120H0235
Price: 19997.04 USD
Availability: OutOfStock

Reference: 120H0235

Manufacturer: DANFOSS REFRIGERATION

Description:

Scroll compressor, SH300A3ABE

SH300-3AB-SINGLE

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 17.863,75 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Refrigerants: R410A, Segment usage: Air conditioning, Compressor power supply [V]: 200-230/3/60, Packing format: Single pack

Product details

Gross weight	163.08 Kg
Net weight	153 Kg

Volume	0.1 Cubic.mtr
EAN	5702428585354

Gross weight	163.08 Kg
Net weight	153 Kg
Volume	0.1 Cubic.mtr
EAN	5702428585354

Approval	CE UL UKCA
Brand technique	Scroll compressor
Capacity control	Fixed speed
Colour	Blue
Compressor power supply [V]	200-230/3/60
Configuration code	Single
Connection type	Brazed
Description	SH300-3
Diameter [mm]	333 mm
Discharge connection height [mm]	664 mm
Discharge connection pipe size [in]	1 1/8 in
Discharge connection size [in]	1 1/8 in
Drawing number	8556090c
Economizer	No
EU RoHS compliance	Yes with exemptions
Factory HP [bar]	0 bar
Factory LP [bar]	0 bar
Family	SH
Fitting standard	ODF
Frequency [Hz]	60
Gauge port HP	None
Gauge port LP	Schrader
Glass mounting	Threaded
Glass torque [Nm]	50 N-m
High value of nominal voltage at 60Hz [V]	230 V
High value of voltage range at 60Hz [V]	253 V
In scope of WEEE and contain batteries	No
IP protection class	IP54 (with cable gland)
Low value of nominal voltage at 60Hz [V]	200 V
Low value of voltage range at 60Hz [V]	180 V
LRA	560 A
Max pressure (PS) - high side	45 bar
Max pressure (PS) - low side	30.2 bar
MCC	132 A
Model number	SH300A3ABE
Motor protection	Electronic protection module, 110/240 V
Mounting torque [Nm]	21 N-m
Network power supply [V/Ph/Hz]	200-230/3/50 208-230/3/60
Number of starts per hour [Max]	12
Oil charge [L]	6.7 L
Oil drain	1/4'' flare

Oil equalization	2-1/4'' Rotolock
Oil reference	160SZ
Packaging height [mm]	736 mm
Packaging length [mm]	570 mm
Packaging weight [Kg]	156 kg
Packaging width [mm]	475 mm
Packing format	Single pack
Packing quantity	1
Phase	3
Power connections	Stud M5
Product group	Hermetic compressors
Product Name Description	Scroll compressor SH
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]	13.5 kg
Refrigerants	R410A
Relief valve	None
Reverse rotation protection	Electronic module
RLA	94.3 A
Rotational speed at 60Hz [rpm]	3500 rpm
SCIP dossier no.	eeb683f7-470d-4d35-aa2c-d86e918b529b
Segment usage	Air conditioning
Shipped instructions	Installation instructions
Shipped module	Electronic protection module mounted in terminal box
Shipped mounting	Mounting kit with rigid grommets, bolts, nuts, sleeves and washers
Shipped oil	Initial oil charge
Suction connection height [mm]	331 mm
Suction connection material	-
Suction connection pipe size [in]	1 5/8 in
Suction connection size [in]	1 5/8 in
Swept volume [cm3]	285.5 cm³
Technology	Scroll
Test dif [bar] [Max]	37 bar
Test HP [bar] [Max]	45 bar
Test LP [bar] [Max]	30 bar
Torque earth [Nm]	4 N-m
Torque power [Nm]	3 N-m
Total height [mm]	723 mm
Type	SH300
Viscosity [cP]	32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]	0.13 Ohm

Approval	CE UL UKCA
Brand technique	Scroll compressor
Capacity control	Fixed speed
Colour	Blue
Compressor power supply [V]	200-230/3/60
Configuration code	Single
Connection type	Brazed
Description	SH300-3
Diameter [mm]	333 mm
Discharge connection height [mm]	664 mm
Discharge connection pipe size [in]	1 1/8 in
Discharge connection size [in]	1 1/8 in
Drawing number	8556090c
Economizer	No
EU RoHS compliance	Yes with exemptions
Factory HP [bar]	0 bar
Factory LP [bar]	0 bar
Family	SH
Fitting standard	ODF
Frequency [Hz]	60
Gauge port HP	None
Gauge port LP	Schrader
Glass mounting	Threaded
Glass torque [Nm]	50 N-m
High value of nominal voltage at 60Hz [V]	230 V
High value of voltage range at 60Hz [V]	253 V
In scope of WEEE and contain batteries	No
IP protection class	IP54 (with cable gland)
Low value of nominal voltage at 60Hz [V]	200 V
Low value of voltage range at 60Hz [V]	180 V
LRA	560 A
Max pressure (PS) - high side	45 bar
Max pressure (PS) - low side	30.2 bar
MCC	132 A
Model number	SH300A3ABE
Motor protection	Electronic protection module, 110/240 V
Mounting torque [Nm]	21 N-m
Network power supply [V/Ph/Hz]	200-230/3/50 208-230/3/60
Number of starts per hour [Max]	12
Oil charge [L]	6.7 L
Oil drain	1/4'' flare
Oil equalization	2-1/4'' Rotolock
Oil reference	160SZ
Packaging height [mm]	736 mm
Packaging length [mm]	570 mm
Packaging weight [Kg]	156 kg
Packaging width [mm]	475 mm
Packing format	Single pack
Packing quantity	1
Phase	3
Power connections	Stud M5
Product group	Hermetic compressors
Product Name Description	Scroll compressor SH
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]	13.5 kg
Refrigerants	R410A
Relief valve	None
Reverse rotation protection	Electronic module
RLA	94.3 A
Rotational speed at 60Hz [rpm]	3500 rpm
SCIP dossier no.	eeb683f7-470d-4d35-aa2c-d86e918b529b
Segment usage	Air conditioning
Shipped instructions	Installation instructions
Shipped module	Electronic protection module mounted in terminal box
Shipped mounting	Mounting kit with rigid grommets, bolts, nuts, sleeves and washers
Shipped oil	Initial oil charge
Suction connection height [mm]	331 mm
Suction connection material	-
Suction connection pipe size [in]	1 5/8 in
Suction connection size [in]	1 5/8 in
Swept volume [cm3]	285.5 cm³
Technology	Scroll
Test dif [bar] [Max]	37 bar
Test HP [bar] [Max]	45 bar
Test LP [bar] [Max]	30 bar
Torque earth [Nm]	4 N-m
Torque power [Nm]	3 N-m
Total height [mm]	723 mm
Type	SH300
Viscosity [cP]	32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]	0.13 Ohm
