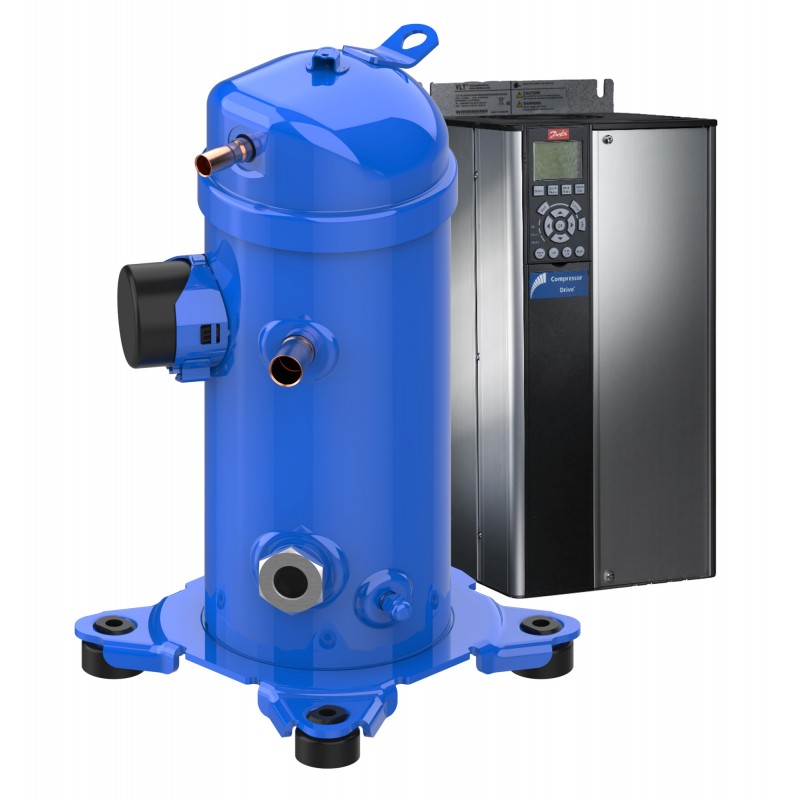

120G0071 DANFOSS REFRIGERATION Scroll compressor, VLZ044TGNE9
120G0071
DANFOSS REFRIGERATION
Scroll compressor, VLZ044TGNE9
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R404A; R407A; R407F, Segment usage: Refrigeration LT; Refrigeration MT, Compressor power supply [V]: 380-480/3/50-60, Packing format: Industrial pack
Product details
| Gross weight | 27.67 Kilogram |
| Net weight | 27 Kilogram |
| Volume | 0.01 Cubic meter |
| EAN | 5702424544423 |
| Type | VLZ044 |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor VLZ |
| Gross weight | 27.67 Kilogram |
| Net weight | 27 Kilogram |
| Volume | 0.01 Cubic meter |
| EAN | 5702424544423 |
| Type | VLZ044 |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor VLZ |
| Approval | CE UL UKCA |
| Brand technique | Scroll compressor |
| Capacity control | Inverter |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.3 8.1 8.3.1 |
| Colour | Blue |
| Compressor power supply [V] | 380-480/3/50-60 |
| Configuration code | Single |
| Connection type | Brazed |
| Contains batteries | No |
| Description | VLZ044TG |
| Diameter [mm] | 165 mm |
| Discharge connection angle [°] | 90 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection height [mm] | 371 mm |
| Discharge connection material | Copper |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0VG8213b |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 7(c)-I 6(a) 6(a)-I 6(c) 7(a) |
| Family | VLZ |
| Fitting sleeve | - |
| Fitting standard | ODF |
| Frequency [Hz] | 15 - 100 |
| Gauge port HP | None |
| Gauge port LP | None |
| Glass mounting | Threaded |
| Glass torque [Nm] | 53 N-m |
| High value of nominal voltage at 50Hz [V] | 480 V |
| High value of nominal voltage at 60Hz [V] | 480 V |
| High value of voltage range at 50Hz [V] | 528 V |
| High value of voltage range at 60Hz [V] | 528 V |
| IDV | Yes |
| In scope of WEEE | No |
| IP protection class | IP22 |
| Liquid injection | No |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 380 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 342 V |
| Max pressure (PS) - high side | 31.1 bar |
| Max pressure (PS) - low side | 26.2 bar |
| Maximum Operating Current [MOC] | 17.8A |
| Model number | VLZ044TGNE9 |
| Motor protection | Motor protection by frequency converter |
| Mounting torque [Nm] | 11 N-m |
| Network power supply [V/Ph/Hz] | 380-415/3/50 460/3/60 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.3 L |
| Oil drain | 1/4" flare |
| Oil equalization | None |
| Oil level switch port | No |
| Oil type | POE |
| Packing format | Industrial pack |
| Packing quantity | 12 |
| Packing type industrial packs | **Industrial pack: 12 unboxed compressors on pallet (order per multiples of 12) |
| Packing type single pack | *Single pack: Compressor in cardboard box |
| Phase | 3 |
| Power connections | Spade |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 3.6 kg |
| Refrigerants | R404A R407A R407F |
| RLA | 10.5 A |
| Rotational speed at 50Hz [rpm] | 3000 rpm |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| SCIP dossier no. | 6450ee16-252d-49df-8f77-4136a47bb857 |
| SCIP dossier product name | T2/TE2 |
| Segment usage | Refrigeration LT Refrigeration MT |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection angle [°] | 90 ° |
| Suction connection height [mm] | 242 mm |
| Suction connection material | Copper |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 44.5 cm³ |
| Technology | Scroll |
| Torque earth [Nm] | 2 N-m |
| Total height [mm] | 415 mm |
| UL mark | Yes |
| Viscosity [cP] | 46 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.71 Ohms |
| Approval | CE UL UKCA |
| Brand technique | Scroll compressor |
| Capacity control | Inverter |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.3 8.1 8.3.1 |
| Colour | Blue |
| Compressor power supply [V] | 380-480/3/50-60 |
| Configuration code | Single |
| Connection type | Brazed |
| Contains batteries | No |
| Description | VLZ044TG |
| Diameter [mm] | 165 mm |
| Discharge connection angle [°] | 90 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection height [mm] | 371 mm |
| Discharge connection material | Copper |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0VG8213b |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 7(c)-I 6(a) 6(a)-I 6(c) 7(a) |
| Family | VLZ |
| Fitting sleeve | - |
| Fitting standard | ODF |
| Frequency [Hz] | 15 - 100 |
| Gauge port HP | None |
| Gauge port LP | None |
| Glass mounting | Threaded |
| Glass torque [Nm] | 53 N-m |
| High value of nominal voltage at 50Hz [V] | 480 V |
| High value of nominal voltage at 60Hz [V] | 480 V |
| High value of voltage range at 50Hz [V] | 528 V |
| High value of voltage range at 60Hz [V] | 528 V |
| IDV | Yes |
| In scope of WEEE | No |
| IP protection class | IP22 |
| Liquid injection | No |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 380 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 342 V |
| Max pressure (PS) - high side | 31.1 bar |
| Max pressure (PS) - low side | 26.2 bar |
| Maximum Operating Current [MOC] | 17.8A |
| Model number | VLZ044TGNE9 |
| Motor protection | Motor protection by frequency converter |
| Mounting torque [Nm] | 11 N-m |
| Network power supply [V/Ph/Hz] | 380-415/3/50 460/3/60 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.3 L |
| Oil drain | 1/4" flare |
| Oil equalization | None |
| Oil level switch port | No |
| Oil type | POE |
| Packing format | Industrial pack |
| Packing quantity | 12 |
| Packing type industrial packs | **Industrial pack: 12 unboxed compressors on pallet (order per multiples of 12) |
| Packing type single pack | *Single pack: Compressor in cardboard box |
| Phase | 3 |
| Power connections | Spade |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 3.6 kg |
| Refrigerants | R404A R407A R407F |
| RLA | 10.5 A |
| Rotational speed at 50Hz [rpm] | 3000 rpm |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| SCIP dossier no. | 6450ee16-252d-49df-8f77-4136a47bb857 |
| SCIP dossier product name | T2/TE2 |
| Segment usage | Refrigeration LT Refrigeration MT |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection angle [°] | 90 ° |
| Suction connection height [mm] | 242 mm |
| Suction connection material | Copper |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 44.5 cm³ |
| Technology | Scroll |
| Torque earth [Nm] | 2 N-m |
| Total height [mm] | 415 mm |
| UL mark | Yes |
| Viscosity [cP] | 46 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.71 Ohms |
Datasheet - PDF
