> DANFOSS REFRIGERATION>120G0012 DANFOSS REFRIGERATION Scroll compressor, Inverter, VZH088AJANA, Refrigerant: R410A, Segment usage: ..
Previous Product Next Product

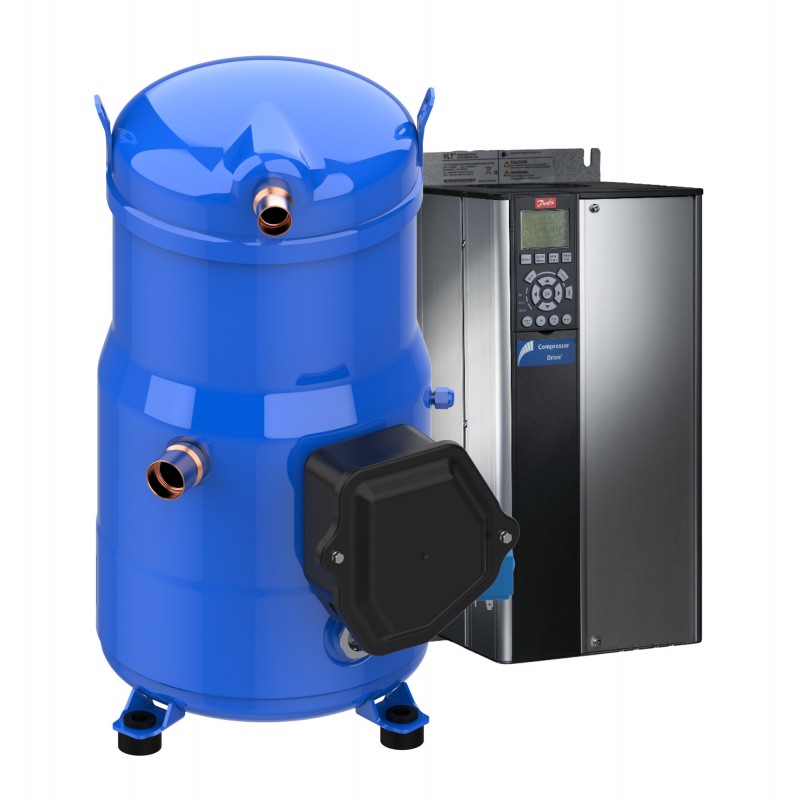

120G0012 DANFOSS REFRIGERATION Scroll compressor, Inverter, VZH088AJANA, Refrigerant: R410A, Segment usage: .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

120G0012 DANFOSS REFRIGERATION Scroll compressor, Inverter, VZH088AJANA, Refrigerant: R410A, Segment usage: ..

120G0012

DANFOSS REFRIGERATION

Scroll compressor, Inverter, VZH088AJANA, Refrigerant: R410A, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 220-240/3/50-60

Scroll compressor, VZH088AJANA

More details


Home > DANFOSS REFRIGERATION

* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Refrigerants: R410A, Segment usage: Air conditioning, Compressor power supply [V]: 220-240/3/50-60, Packing format: Single pack

Product details

Gross weight59.75 Kg
Net weight59.02 Kg
Volume0.23 Cubic.mtr
EAN5702428803304
Gross weight59.75 Kg
Net weight59.02 Kg
Volume0.23 Cubic.mtr
EAN5702428803304

ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlInverter
ColourBlue
Compressor power supply [V]220-240/3/50-60
Configuration codeSingle
Connection typeBrazed
DescriptionVZH088AJ
Diameter [mm]243 mm
Discharge connection height [mm]451 mm
Discharge connection pipe size [in]7/8 in
Discharge connection size [in]7/8 in
Drawing number8560030d
EconomizerNo
EU RoHS complianceYes with exemptions
FamilyVZH
Fitting standardODF
Frequency [Hz]25 - 100
Gauge port HPNone
Gauge port LPSchrader
Glass mountingThreaded
Glass torque [Nm]50 N-m
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume0.7 L
High value of nominal voltage at 50Hz [V]230 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]240 V
High value of voltage range at 60Hz [V]240 V
In scope of WEEE and contain batteriesNo
IP protection classIP54 (with cable gland)
Low Side TS Max55 °C
Low Side TS Min-35 °C
Low Side Volume12.7 L
Low value of nominal voltage at 50Hz [V]230 V
Low value of nominal voltage at 60Hz [V]200 V
Low value of voltage range at 50Hz [V]200 V
Low value of voltage range at 60Hz [V]200 V
Max pressure (PS) - high side48.7 bar
Max pressure (PS) - low side33.3 bar
MMT93.5 A
Model numberVZH088AJANA
Motor protectionMotor protection by frequency converter
Mounting torque [Nm]15 N-m
Network power supply [V/Ph/Hz]200-230/3/50 208-230/3/60
Number of starts per hour [Max]12
Oil charge [L]3.3 L
Oil equalization1-3/4'' Rotolock
Oil level switch portNo
Oil reference160SZ
Oil typePOE
Packaging height [mm]578 mm
Packaging length [mm]355 mm
Packaging weight [Kg]55 kg
Packaging width [mm]455 mm
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew 4.8 mm
Product groupHermetic compressors
Product Name DescriptionScroll compressor VZH
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]5.9 kg
RefrigerantsR410A
Relief valveNone
RLA74.8 A
Rotational speed at 50Hz [rpm]3000 rpm
Rotational speed at 60Hz [rpm]3600 rpm
SCIP dossier no.deb70449-6157-4db7-8763-870ef07e3ff5
SCIP dossier product nameVZH028-044 / VLZ028-044
Segment usageAir conditioning
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]235 mm
Suction connection material-
Suction connection pipe size [in]1 1/8 in
Suction connection size [in]1 1/8 in
Swept volume [cm3]88.4 cm³
TechnologyScroll
Test dif [bar] [Max]37 bar
Test HP [bar] [Max]45 bar
Test LP [bar] [Max]33.3 bar
Torque earth [Nm]4 N-m
Torque power [Nm]3 N-m
Total height [mm]484 mm
TypeVZH088A/B
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]0.03 Ohm
ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlInverter
ColourBlue
Compressor power supply [V]220-240/3/50-60
Configuration codeSingle
Connection typeBrazed
DescriptionVZH088AJ
Diameter [mm]243 mm
Discharge connection height [mm]451 mm
Discharge connection pipe size [in]7/8 in
Discharge connection size [in]7/8 in
Drawing number8560030d
EconomizerNo
EU RoHS complianceYes with exemptions
FamilyVZH
Fitting standardODF
Frequency [Hz]25 - 100
Gauge port HPNone
Gauge port LPSchrader
Glass mountingThreaded
Glass torque [Nm]50 N-m
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume0.7 L
High value of nominal voltage at 50Hz [V]230 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]240 V
High value of voltage range at 60Hz [V]240 V
In scope of WEEE and contain batteriesNo
IP protection classIP54 (with cable gland)
Low Side TS Max55 °C
Low Side TS Min-35 °C
Low Side Volume12.7 L
Low value of nominal voltage at 50Hz [V]230 V
Low value of nominal voltage at 60Hz [V]200 V
Low value of voltage range at 50Hz [V]200 V
Low value of voltage range at 60Hz [V]200 V
Max pressure (PS) - high side48.7 bar
Max pressure (PS) - low side33.3 bar
MMT93.5 A
Model numberVZH088AJANA
Motor protectionMotor protection by frequency converter
Mounting torque [Nm]15 N-m
Network power supply [V/Ph/Hz]200-230/3/50 208-230/3/60
Number of starts per hour [Max]12
Oil charge [L]3.3 L
Oil equalization1-3/4'' Rotolock
Oil level switch portNo
Oil reference160SZ
Oil typePOE
Packaging height [mm]578 mm
Packaging length [mm]355 mm
Packaging weight [Kg]55 kg
Packaging width [mm]455 mm
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew 4.8 mm
Product groupHermetic compressors
Product Name DescriptionScroll compressor VZH
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]5.9 kg
RefrigerantsR410A
Relief valveNone
RLA74.8 A
Rotational speed at 50Hz [rpm]3000 rpm
Rotational speed at 60Hz [rpm]3600 rpm
SCIP dossier no.deb70449-6157-4db7-8763-870ef07e3ff5
SCIP dossier product nameVZH028-044 / VLZ028-044
Segment usageAir conditioning
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]235 mm
Suction connection material-
Suction connection pipe size [in]1 1/8 in
Suction connection size [in]1 1/8 in
Swept volume [cm3]88.4 cm³
TechnologyScroll
Test dif [bar] [Max]37 bar
Test HP [bar] [Max]45 bar
Test LP [bar] [Max]33.3 bar
Torque earth [Nm]4 N-m
Torque power [Nm]3 N-m
Total height [mm]484 mm
TypeVZH088A/B
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]0.03 Ohm

Datasheet - PDF

▲
Title: Size: Type:
120G0012 120G0012 EN_120U1401.pdf 4 Mbytes 120G0012 120G0012 EN_120U1401.pdf
